Installation
18 309550ZAP

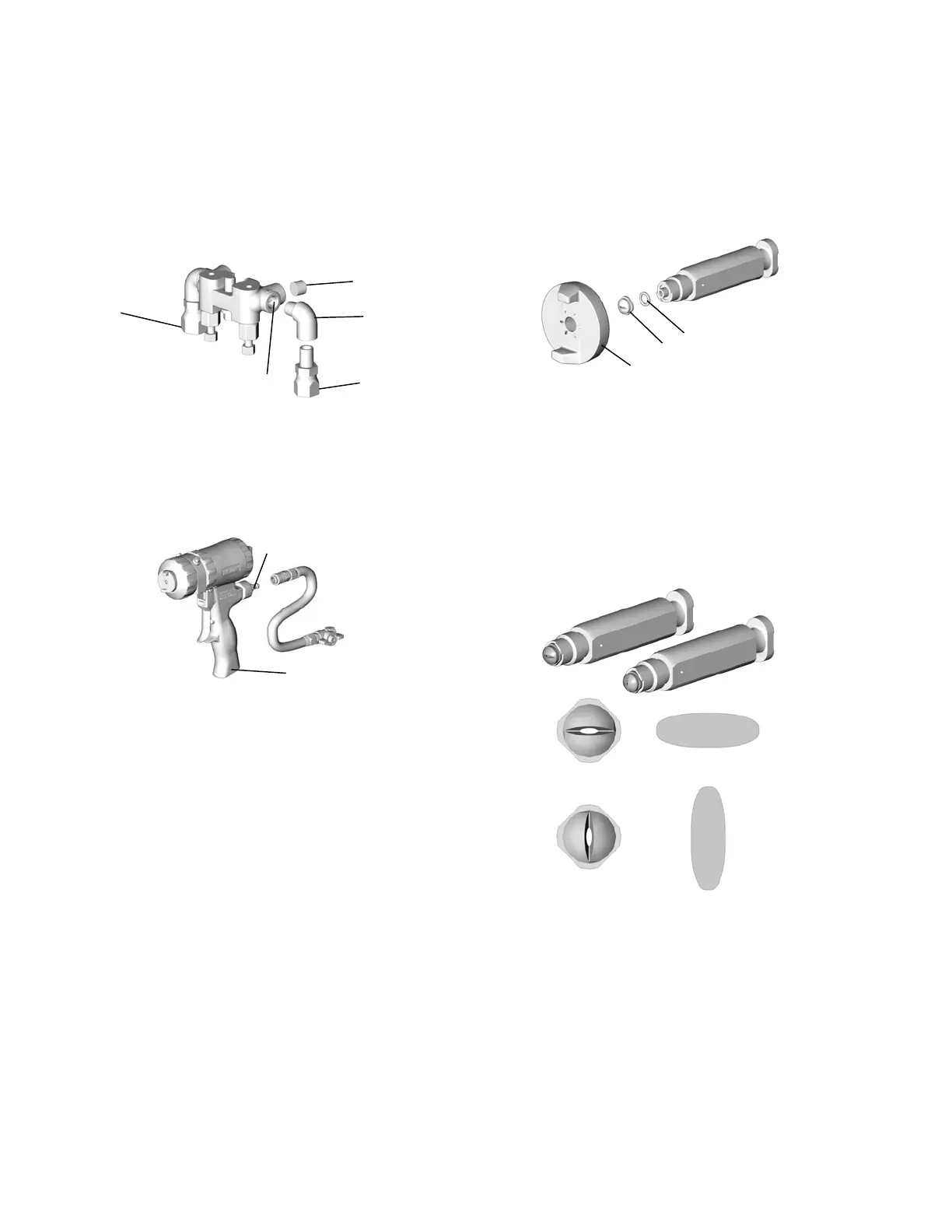

5. Apply thread sealant to plugs (12c), elbows (50*),
and male threads of fluid inlet swivels (S). Install
elbows (50*) in optional fluid inlets (P), facing down.
Install swivels (S) in elbows. Be sure to install A
swivel (smaller) in A side. Install included plugs
where swivels were located. Torque all parts to
235-245 in-lb (26.6-27.7 N•m).
* Elbows (50) are not included with spatter spray gun.
6. Connect A and B hoses to A and B swivels.
7. Remove air line quick coupler (D) and optional air
inlet plug (J). Reverse positions. Apply thread
sealant and torque to 125-135 in-lb (14-15 N•m).
8. Reattach fluid manifold. Reconnect air. Return gun
to service.
Reposition or Replace Flat Spray Tips
1. Follow the Pressure Relief Procedure, page 19.
2. Remove air cap (10) and flat spray tip (39). Inspect
o-ring (40).
NOTE: If tip is stuck, pry off with small screwdriver or
pull off with pliers. Tip is hardened to resist damage.
3. To clean, soak tip in compatible solvent, see
Supplied Tool Kit, page 22. Clean gently with tip
cleanout tool 15D234. Refer to Tip Cleanout Tool,
page 44, to fit tip configuration.
4. Reposition tip horizontally or vertically, or install
different tip size.
NOTE: Tips marked on back with the last three digits of
the part number. See Flat Tip Part Reference Guide,
page 37.
5. Reinstall air cap hand tight.
NOTE: The alignment of the clean off air ports on the air
cap does not affect operation.
S
50*
12c
S
P
TI2646A
D
J
TI2540A
40
39
10
TI2557A
TI2649A
TI2648A
