Component Identification
14 309550ZAP
Component Identification

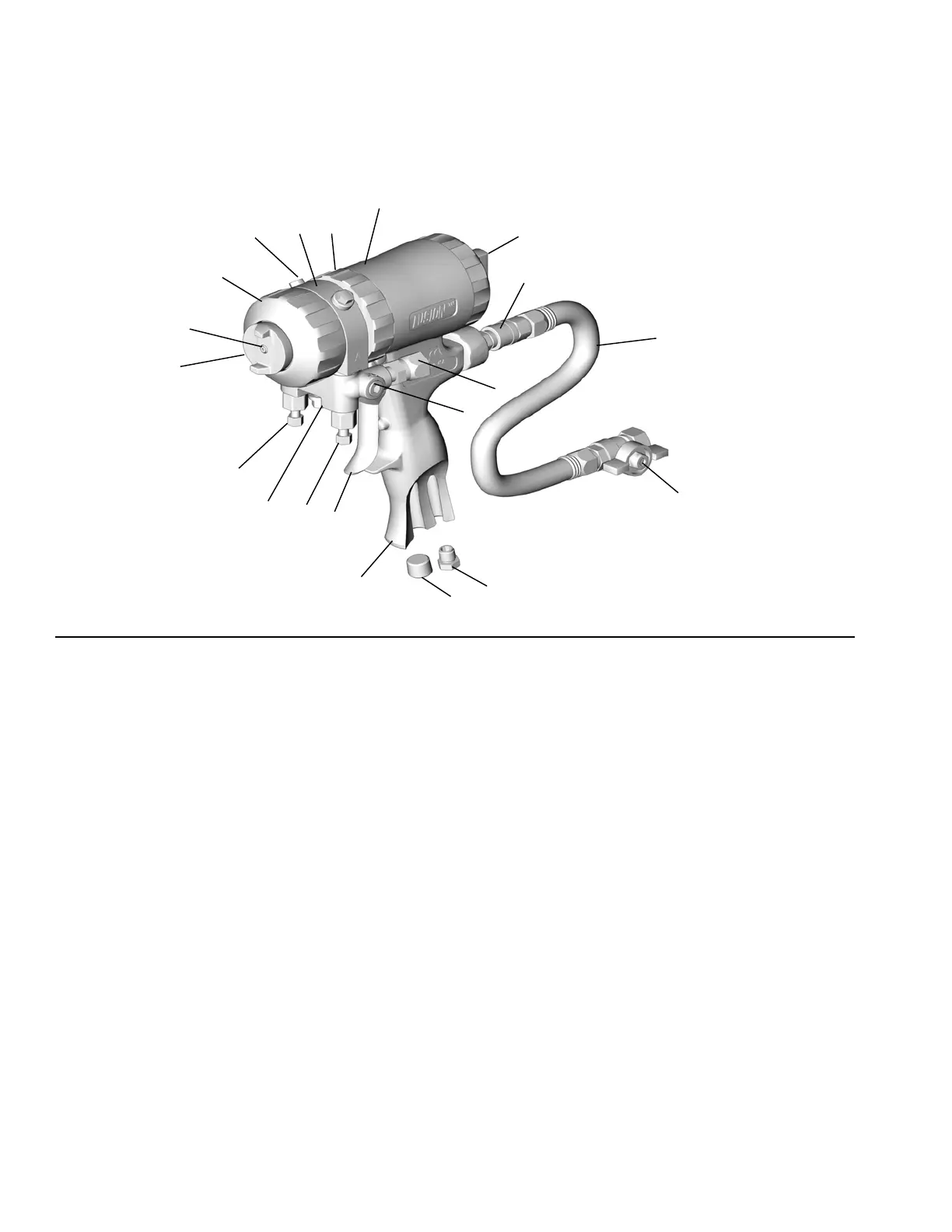

FIG. 1: Component Identification
W*
V
D
L
G
R
F
K
U
N
C
B
M
A
T
J
E
H
TI2408A
P
S
Key
A
A Side Fluid Valve (ISO)
B
B Side Fluid Valve (RESIN)
C
Air Cap
D
Air Line Quick Coupler
E
Muffler
F
Fluid Housing
G
Grease Fitting (under cap)
H
Handle
J
Optional Air Inlet
K
Cleanoff Air Valve
L
Piston Safety Lock
M
Gun Fluid Manifold
N
Mix Chamber Nozzle
P
Optional Fluid Inlets (A Side Shown)
R
Lock Ring
S
Fluid Inlet Swivels (A Side Shown)
T
Trigger
U
Front Retaining Ring
V
Gun Air Whip Hose
W*
Air Valve
* Air Valve (W) is not included with spatter pattern
spray gun.
