Startup
3A5085C 19

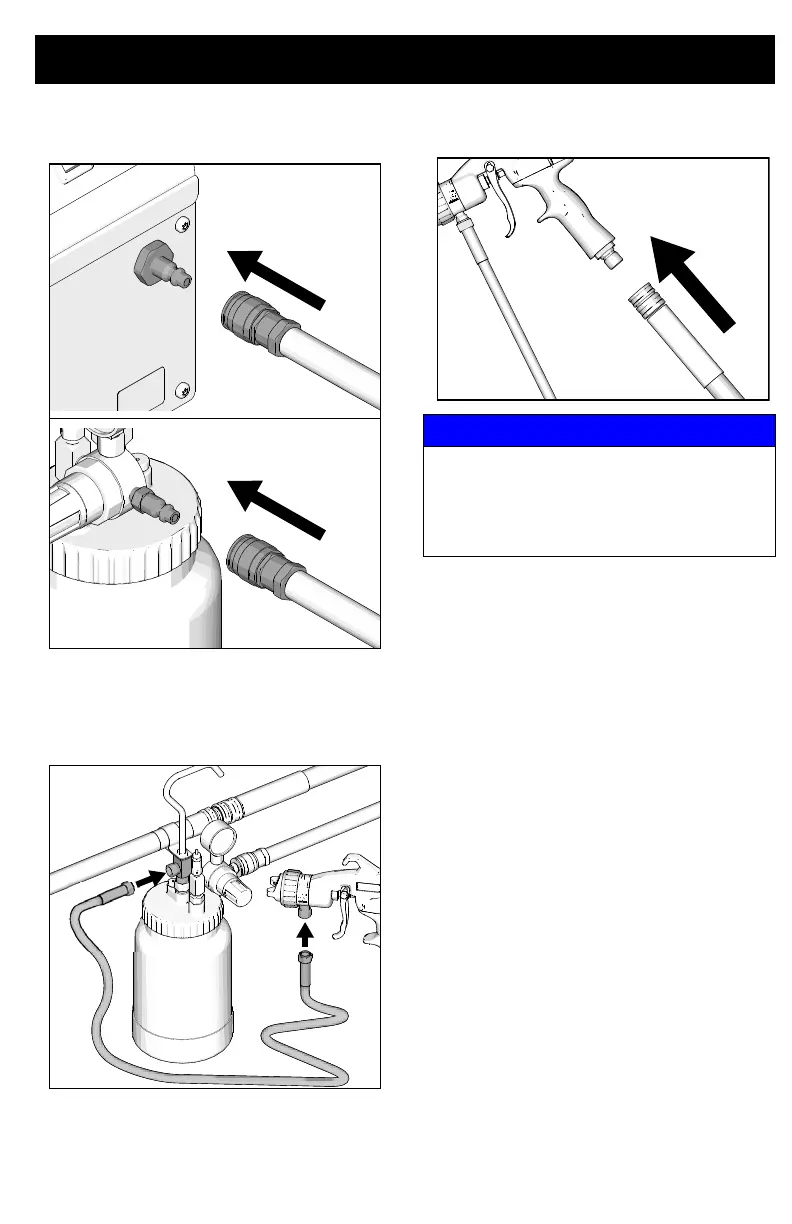

2. Connect clear air hose to compressor
outlet and remote cup air inlet.
3. Connect 5 ft (1.5 m) fluid hose to remote
cup fluid outlet and gun fluid inlet.
NOTE: Gun must be setup for use with
remote cup.
4. Connect air hose (V) to inlet fitting of gun.
5. You are now ready to spray. Reference
Startup, page 14, and HVLP Edge II
gun manual, provided with sprayer, for
spraying instructions.
ti30896a
ti30897a
NOTICE
If remote cup is accidentally tipped over or
held at too great of an angle, fluid may leak
into air regulator and cause damage. Take
precautions to avoid this. If fluid gets into
regulator, clean immediately.
ti30898a

Graco HVLP Series Specifications

General

Brand	Graco
Series	HVLP Series
Type	HVLP Paint Sprayer
Spray Technology	HVLP (High Volume Low Pressure)
Air Inlet Size	1/4 inch
Hose Length	N/A (Requires separate air hose)
