Startup
18 3A5085C
4. Press nozzle housing assembly in,
making sure the hole and pin are aligned
and housing can no longer rotate.
5. Torque nut to 140-150 in-lb (15.8-16.9
N•m).
6. Reconnect Flexliner system.

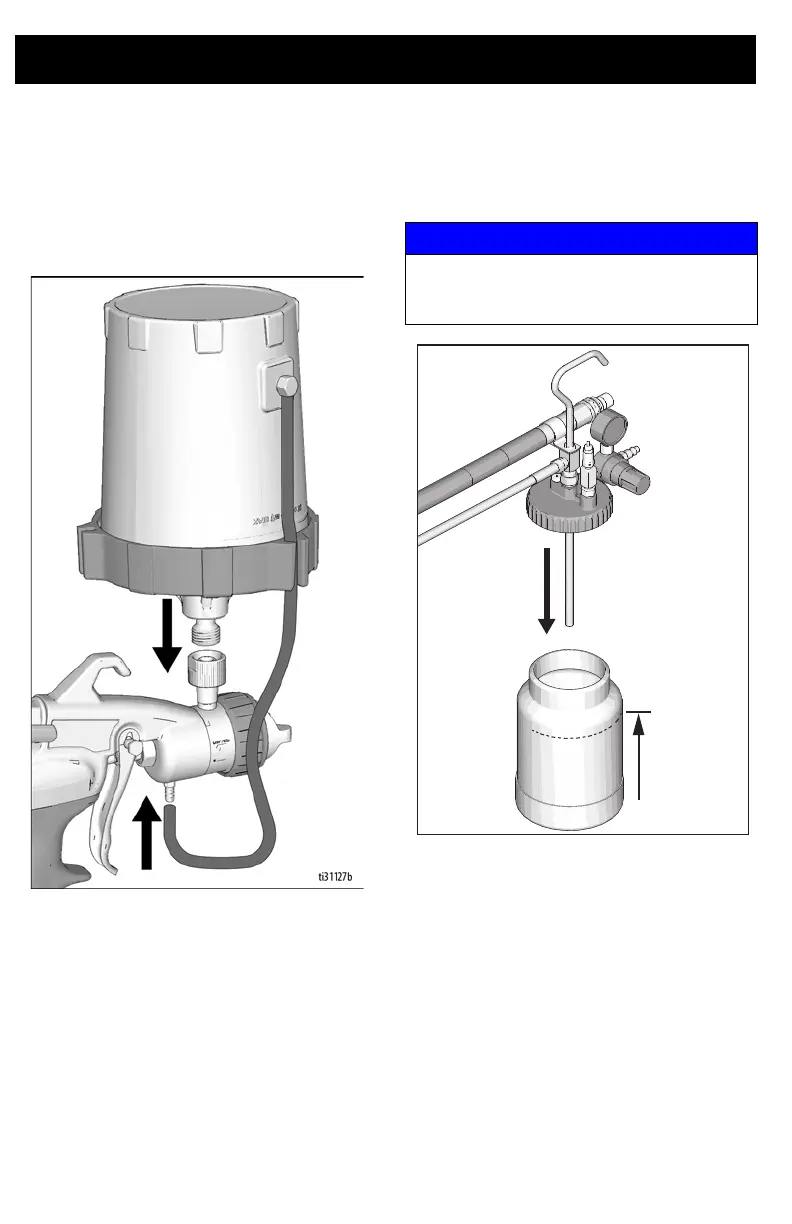

Fill Remote Cup
(ProComp Models only)
1. Fill remote cute 3/4 full and install cover.
NOTICE
Only hand-tighten remote cup cover.
Excessive tightening may damage cover
gasket.
3/4

Graco HVLP Series Specifications

General

Brand	Graco
Series	HVLP Series
Type	HVLP Paint Sprayer
Spray Technology	HVLP (High Volume Low Pressure)
Air Inlet Size	1/4 inch
Hose Length	N/A (Requires separate air hose)
