Graco HVLP Series User Manual

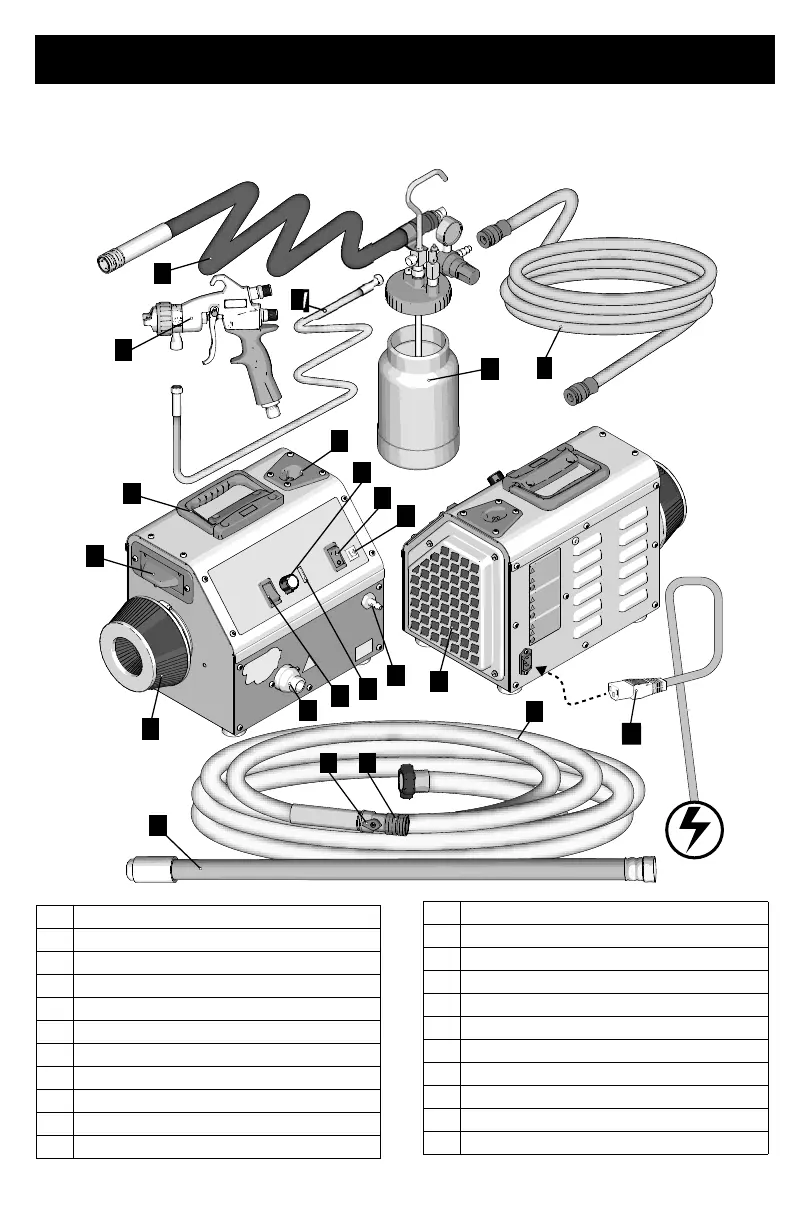

Know Your Sprayer
3A5085C 9
ProComp Models
KL
ti30891a
M
N
A
B
R
S
C
D
P
Q
J
T
U
G
E
F
H
W
V
X
A Air Outlet
B ON/OFF/AutoStart Switch
C Fluid Set Storage
D Sprayer Handle
E Turbine Air Filter
F Motor Air Filter
G Edge II Plus Spray Gun
H Power Cord
J Resettable Circuit Breaker
K Quick Connect
L Air Valve
M Sprayer Air Hose
N Whip Hose
P Spray Gun Holder
Q TurboControl
R TurboControl LED Indicator
S Compressor Outlet
T Compressor ON/OFF Switch
U Remote Cup, 2-qt
V Gun Air Hose, 5-ft
W Remote Cup Fluid Hose, 5-ft
X Remote Cup Air Hose, clear

Graco HVLP Series Specifications

General

Brand	Graco
Series	HVLP Series
Type	HVLP Paint Sprayer
Spray Technology	HVLP (High Volume Low Pressure)
Air Inlet Size	1/4 inch
Hose Length	N/A (Requires separate air hose)
