Graco HVLP Series User Manual

Startup
3A5085C 15

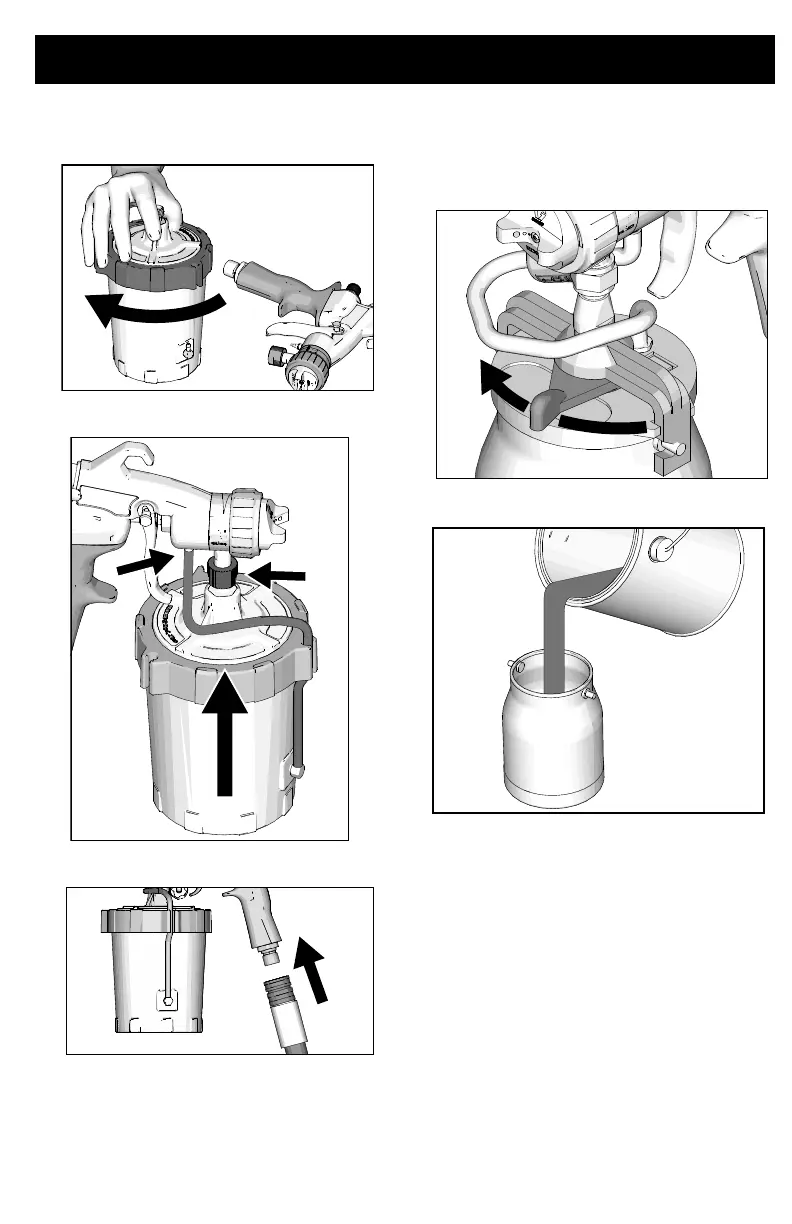

4. Install cover and ring onto cup. Tighten
ring securely.
5. Connect FlexLiner System to gun.
6. Connect air hose to inlet fitting of gun.
7. You are now ready to spray. Reference
Startup, page 20, and HVLP Edge II
gun manual, provided with sprayer, for
spraying instructions.
Fill Siphon Cup
1. Unlatch cup cover and remove from
siphon cup.
2. Fill siphon cup with material.
3. Verify siphon tube is positioned in ideal
location for desired spray orientation. If
adjustment is necessary:
a. Loosen nut, rotate cup cover to
attain desired siphon tube position.
ti30709a
ti30681a
ti30683a
ti30628a
ti30941a

Graco HVLP Series Specifications

General

Brand	Graco
Series	HVLP Series
Type	HVLP Paint Sprayer
Spray Technology	HVLP (High Volume Low Pressure)
Air Inlet Size	1/4 inch
Hose Length	N/A (Requires separate air hose)
