Graco HVLP Series User Manual

How to Spray
3A5085C 23

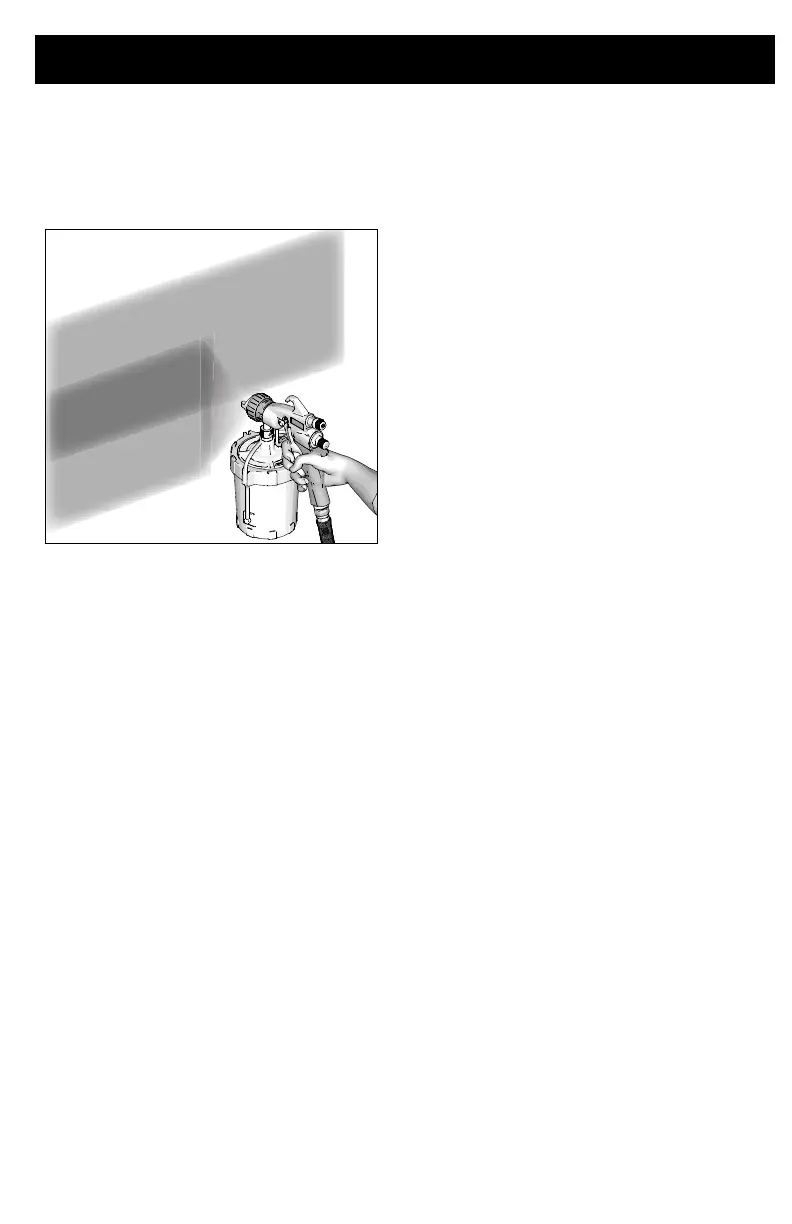

Aiming Gun
Aim center of spray gun at bottom edge of
previous stroke, overlapping each stroke by
half.
If sprayer does not spray, reference
Troubleshooting, page 31.
Refilling FlexLiner
1. Perform Pressure Relief Procedure,
page 10.
2. Reference Fill FlexLiner System, page
14.
Refilling Siphon Cup
1. Perform Pressure Relief Procedure,
page 10.
2. Reference Fill Siphon Cup, page 15.
Refilling Remote Cup
1. Perform Pressure Relief Procedure,
page 10.
2. Reference Fill Remote Cup (ProComp
Models only), page 18.
ti30764a

Graco HVLP Series Specifications

General

Brand	Graco
Series	HVLP Series
Type	HVLP Paint Sprayer
Spray Technology	HVLP (High Volume Low Pressure)
Air Inlet Size	1/4 inch
Hose Length	N/A (Requires separate air hose)
