Component Identification (LLV 200DC)
10 3A3426EOperation

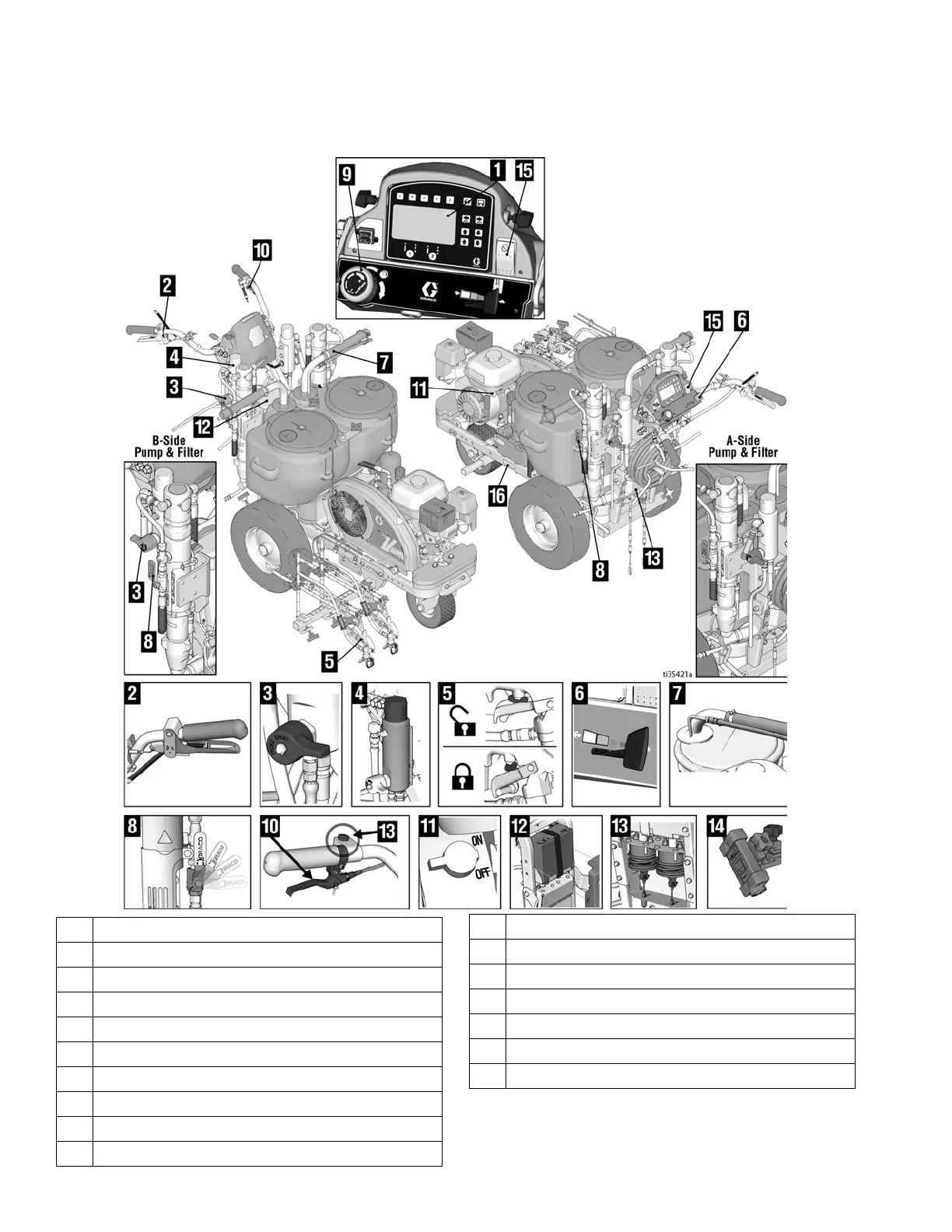

Component Identification (LLV 200DC)
*HP Auto Series only. Upgrade to HP Auto Series with
P/N 25A527 (Series B stripers), or P/N 25N790 (Series
C stripers).
1 Display
2 Manual Spray Gun Trigger
3 Prime/Spray Valve
4 Filter
5 Trigger Lock
6 Engine/Controls
7 Drain and siphon tubes
8 Pump ON/OFF lever
9 Pressure control
10 Turn control
11 Engine STOP
*12 12 volt battery
*13 Gun Actuators / Solenoids
*14 Layout laser
15 Engine kill switch
16 Identification label
*17 Auto Spray Gun Control Button
