Graco LineLazer V 200HS - Dot Laser (if Applicable)

Gun Placement
3A3426EOperation 23

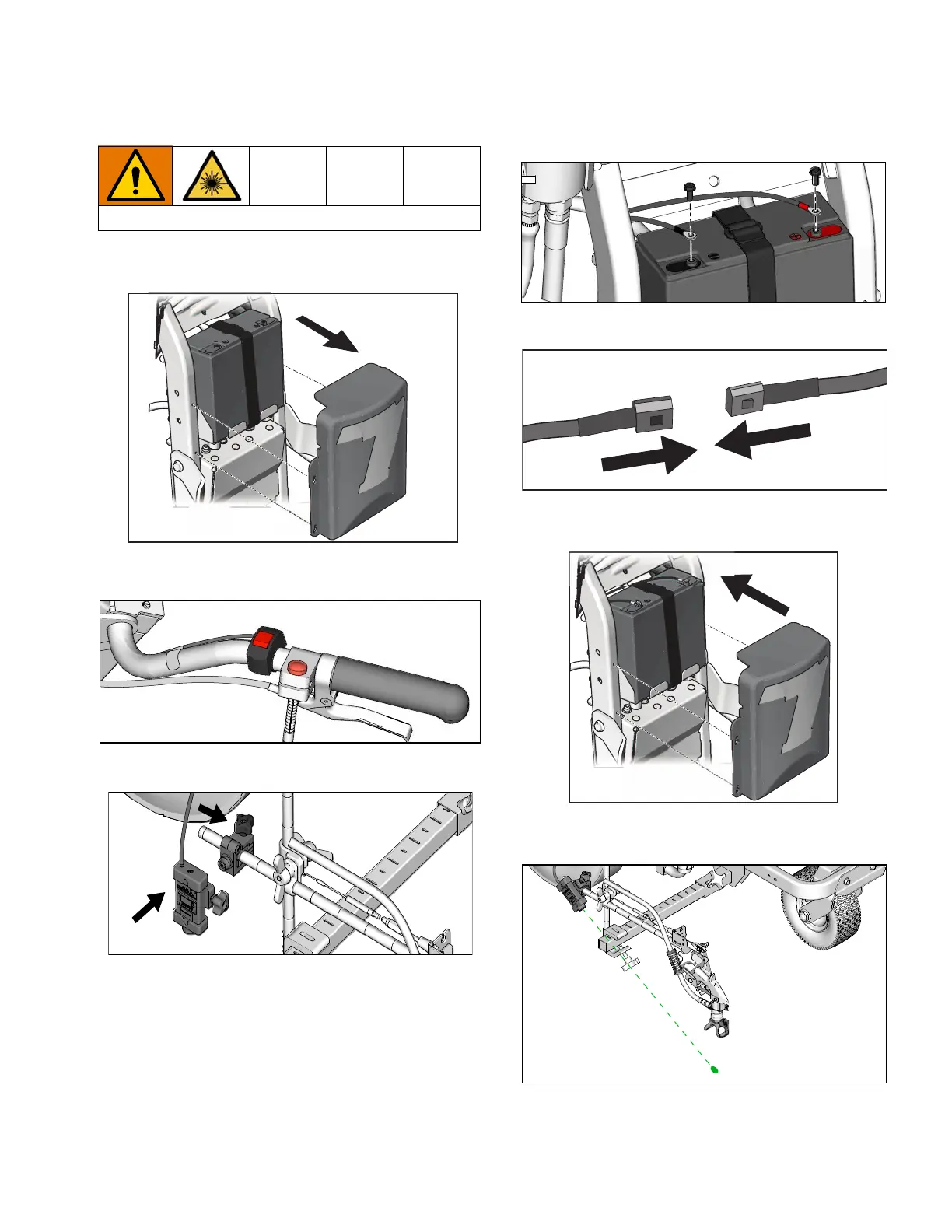

Dot Laser (if applicable)
1. Remove battery cover.
2. Attach ON/OFF switch to desired location on the
handle bar.
3. Attach laser to desired location on the gun arm.
4. Route wires from the switch to the battery and con
nect to the (+) and (-) terminals.
5. Connect the switch leads to the wire harness.
6. Reattach battery cover.
7. Turn on laser and position dot underneath gun
head.
LASER LIGHT HAZARD. Avoid direct eye contact.
