LineLazer V LiveLook Display
40 3A3426EOperation

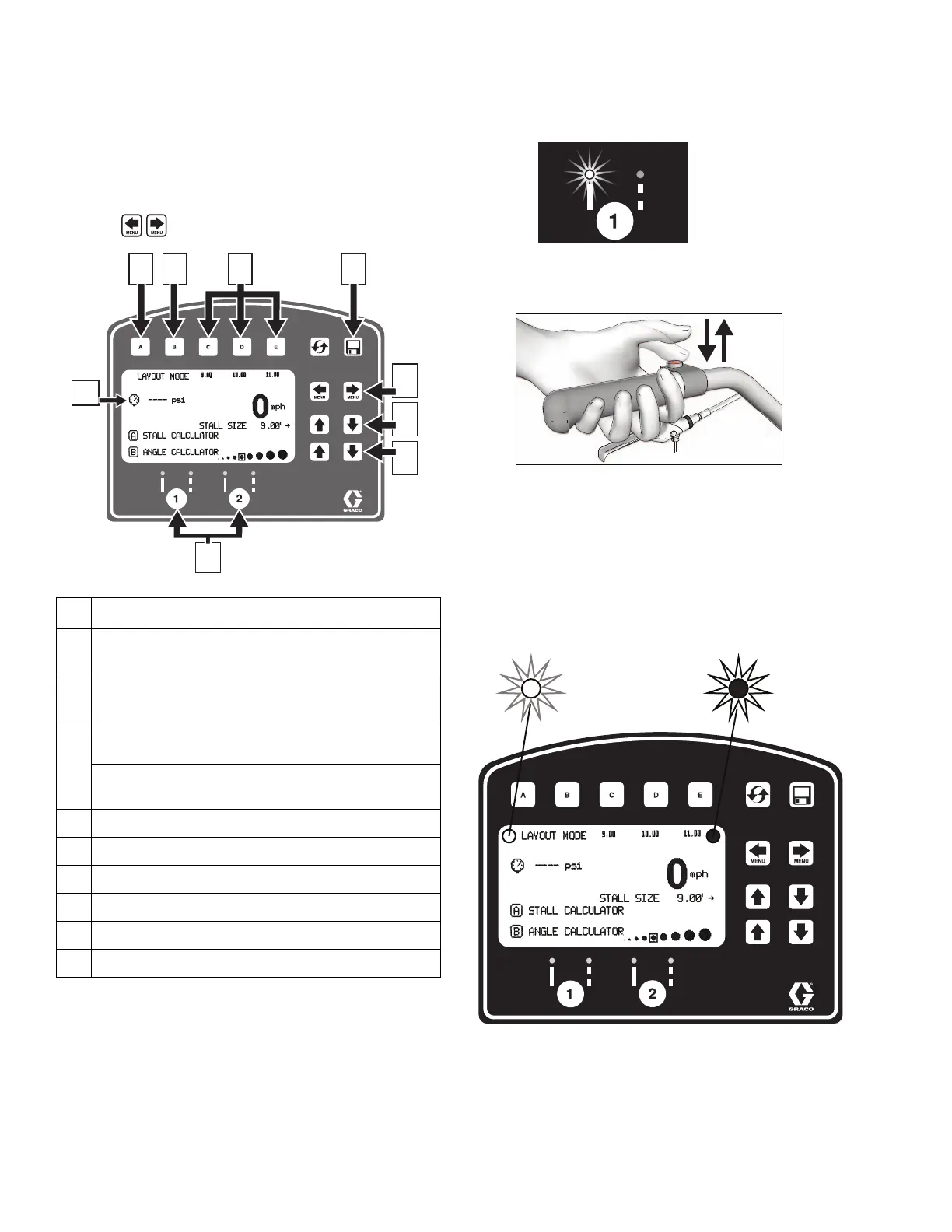

Layout Mode
Layout Mode is used to calculate and mark parking lot
stalls.
1. Use to select Layout Mode.
2. Use gun activation buttons to select guns.
3. Press and release auto gun trigger control and
move striper forward.
4. Striper default is to place a dot every 9.0 ft (2.7m) to
mark the stall size. Stall size is adjustable.
5. Dots are laid down until gun trigger control is
pressed and released again.
An indicator on the screen alternately flash when gun
trigger control is pressed to signal mode is active.
Ref. Description
1 Opens Stall Calculator Menu.
See Stall Calculator, page 41.
2 Opens Angle Calculator Menu.
See Angle Calculator, page 42.
3
Select a “Favorite”, press for less than one
second.
Save a “Favorite”, press and hold for more than
three seconds.
4 Job Data Logging, page 48.
5 Scroll between menu screens.
6 Adjust stall size/dot spacing.
7 Adjust dot size.
8 Auto Gun activation buttons.
9 Pressure.
ti27912a
