Graco LineLazer V 200HS - Striping Mode (Standard Series)

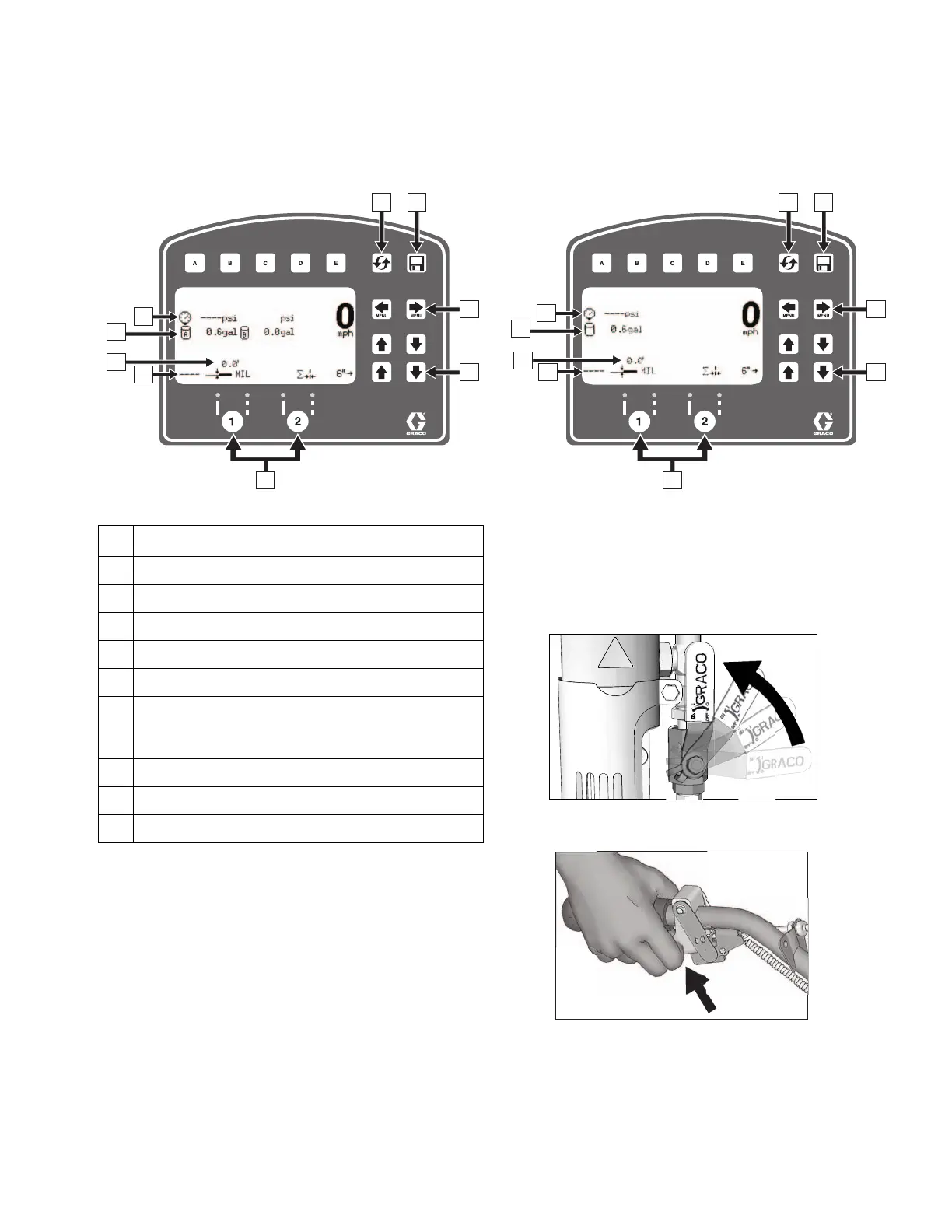

LineLazer V LiveLook Display
3A3426EOperation 29
Striping Mode (Standard Series)
*Not active in Standard Series. Upgrade to HP Auto
Series, see page 10.
Operating in Striping Mode
1. Make sure engine is running.
2. Set pump switch to ON.
3. Pull trigger to spray.
ti27889a
1 2
3
4
5
9
6
7
8
1 2
3
4
5
9
200DC 200HS
6
7
8
Ref. Description
1 Resets Distance, Gallons, Mils
*2 Job logging
3 Scroll between menu screens
4 Line width adjustment buttons
*5 Auto gun buttons
6 MIL thickness. While spraying “Instant MIL avg” is
displayed. When stopped total “Job MIL avg” is
displayed.
7 Total gallons (liters) sprayed
8 Total line length sprayed.
9 Pressure
ti28017a
ti27890a
