LineLazer V LiveLook Display
28 3A3426EOperation

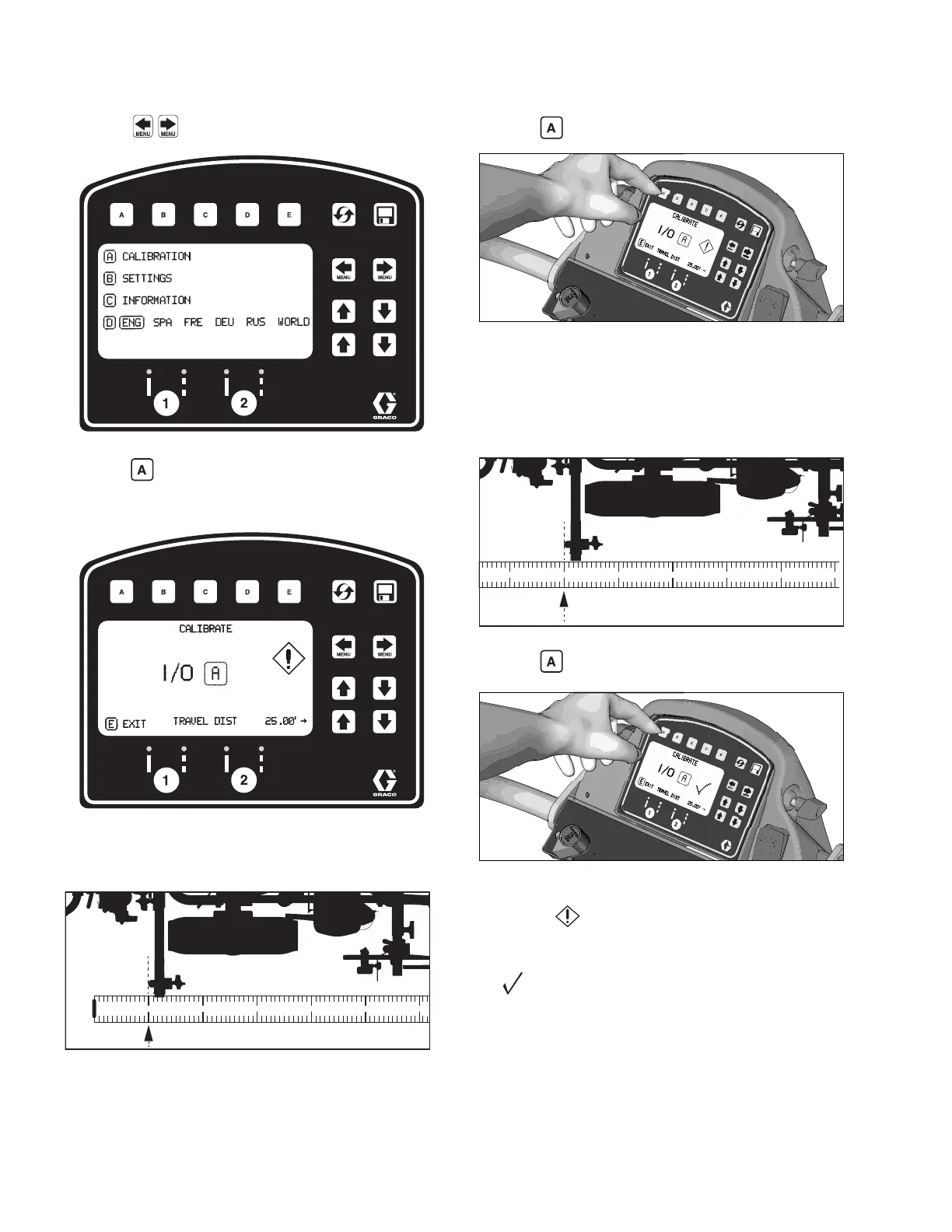

3. Press to select Setup/Information.
4. Press for Calibration. Set TRAVEL DIST to 25 ft
(7.6m) or longer. Longer distances ensure better1
accuracy, depending on conditions.
\
5. Align part of the unit with 1 foot (30.5cm) on steel
tape.
6. Push to start calibration.
7. Move striper forward. Keep unit aligned with steel
tape.
8. Stop when chosen part of unit aligns with 26-ft (8m),
or distance entered, on steel tape (25-ft./ 7.6m
distance).
9. Push to complete calibration.
• Calibration is not complete when the exclamation
symbol is displayed.
• Calibration is finished when the check mark symbol
is displayed.
10. Calibration is now complete.
Go to Measure Mode (Standard Series), page 30, and
verify accuracy by measuring the tape.
