Gun Placement
3A3426EOperation 19

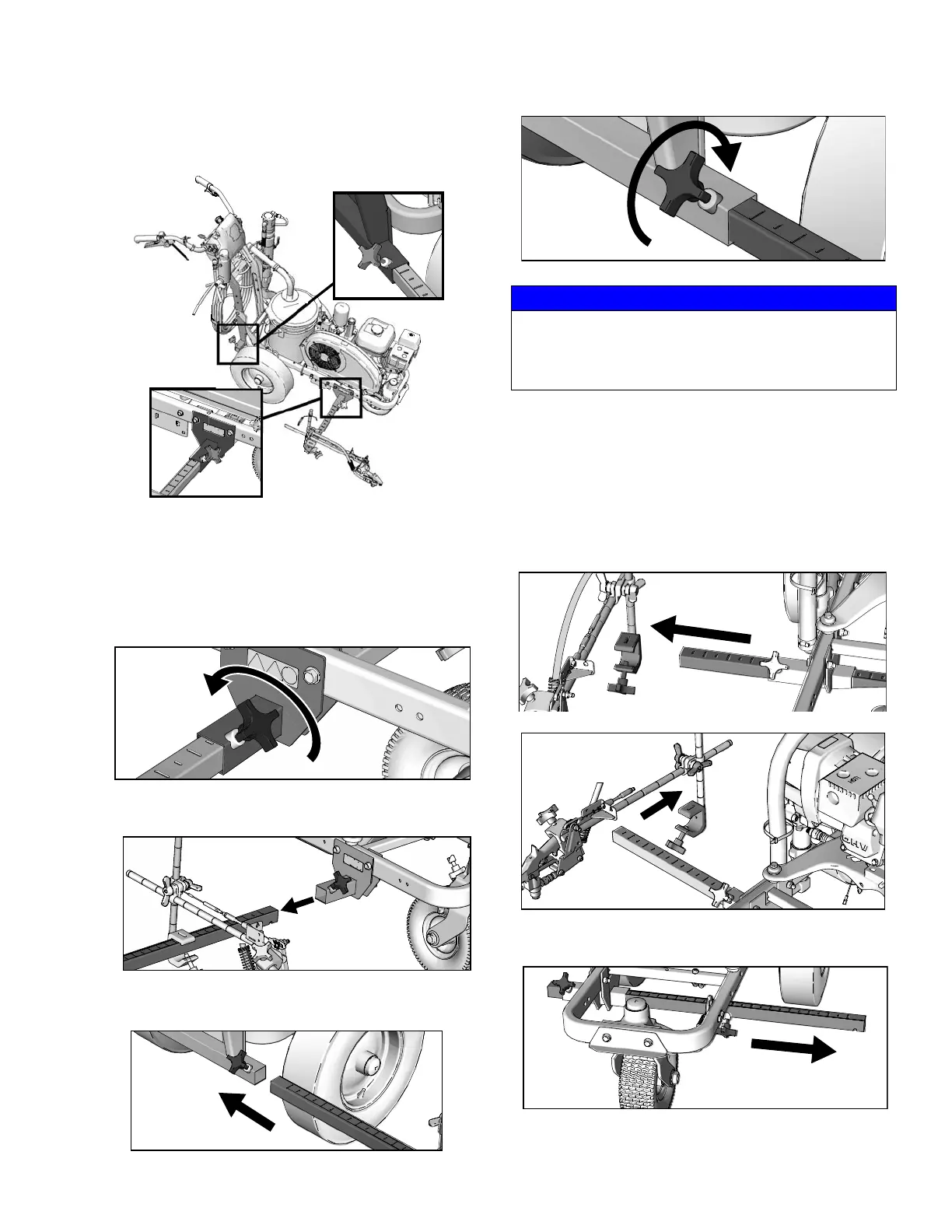

Gun Arm Mounts
This unit is equipped with front and rear gun arm
mounts.
Change Gun Position
(Front and Back)
1. Loosen gun arm knob and remove from gun arm
mounting slot.
2. Slide gun arm assembly (including gun and hoses)
out from gun arm mounting slot.
3. Slide gun arm assembly into desired gun arm
mounting slot.
4. Tighten gun arm knob into gun arm mounting slot.
Change Gun Position
(Left and Right)
Removal
1. Loosen vertical gun arm knob on gun arm mounting
bar and remove.
2. Extend mounting bar on opposite side of the
machine.
ti28020a
ti27796a
ti27795a
ti27797a
NOTICE
Make sure all hoses, cables, and wires are properly
routed through brackets and do NOT rub on tire.
Contact with tire will result in damaged hoses, cables,
and wires.
ti27798a
ti27799a
ti27919a
ti27800a
