LineLazer V LiveLook Display
3A3426EOperation 41
Stall Calculator
Stall Calculator is used to set the stall size. The striper
divides the measured length by the stall size to
determine the number of stalls that will fit in the length
measured. User can adjust number of stalls to a round
number and stall width is calculated.
1. Use to select Layout Mode. Press to
open Stall Calculator Menu.
2. The most recent length measured in Measure Mode
is automatically displayed. Press gun trigger control
to start a new measurement. Press again to stop
measuring.
When measuring between curbs, the distance from
the back tire/curb to the gun/laser dot, can be
accounted for by setting the Offset (x) value.
a. Back the striper up to the curb, then use a tape
measure to measure from where the tire touches
the curb to the laser dot on the ground.
b. Use to enter the offset (x) value.
c. This value can be stored by holding for 2
seconds.
d. The value stored under can be added to the
measured distance before or after the
measurement is taken between the curbs.
e. The offset (x) value can also be adjusted before or
after the measurement is taken by using .
Stall size and calculated number of stalls are both
adjustable.
3. Press to return to Layout Mode. The Stall size
is saved and displayed on the Layout Mode screen.
4. Press and release gun trigger control to start
marking dots. Press and release gun trigger control
again to stop.

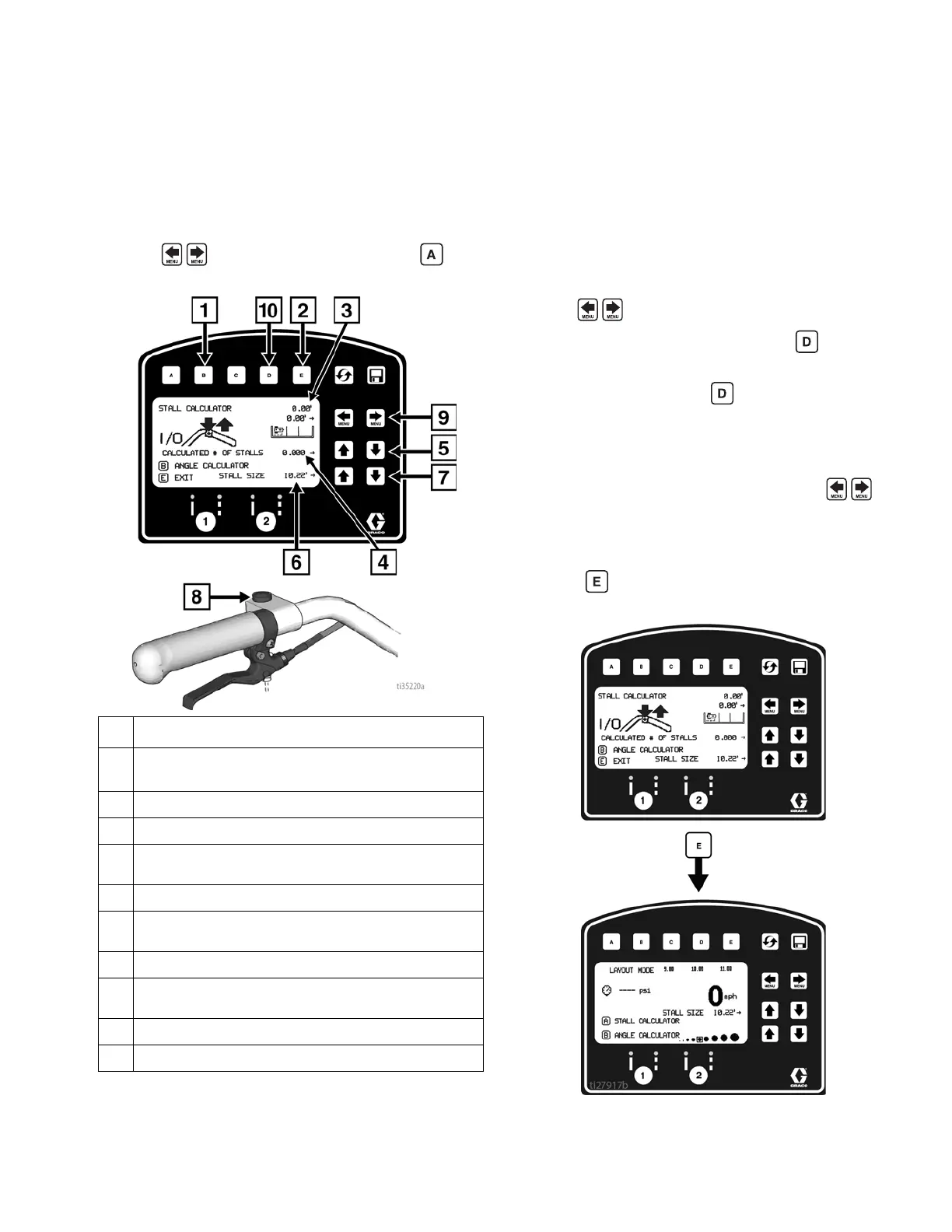

Ref. Description
1 Opens Angle Calculator Menu.
See Angle Calculator, page 42.
2 Exits and returns stall size to Layout Mode.
3 Measured distance.
4 Calculated # of stalls. Changing the number of stalls
will change the stall size.
5 Adjusts number of stalls.
6 Stall size. Changing stall size changes the calculated #
of stalls.
7 Adjusts stall size.
8 Press to start measurement, Press to stop
measurement.
9 Adjusts Offset (x)
10 Stores Offset (x). Hold for 2 seconds to store value.
