LineLazer V LiveLook Display
38 3A3426EOperation
Striping Mode (HP Auto Series)
Operating in Striping Mode
Striper must be running before activating gun trigger
control.
1. Make sure engine is running.
2. Use gun activation buttons to select guns and line
type.
3. Press auto gun trigger control to begin spraying.
In Automatic Mode or Semi-Automatic Mode the or
will flash when auto gun trigger control is pressed
to signal mode is active.

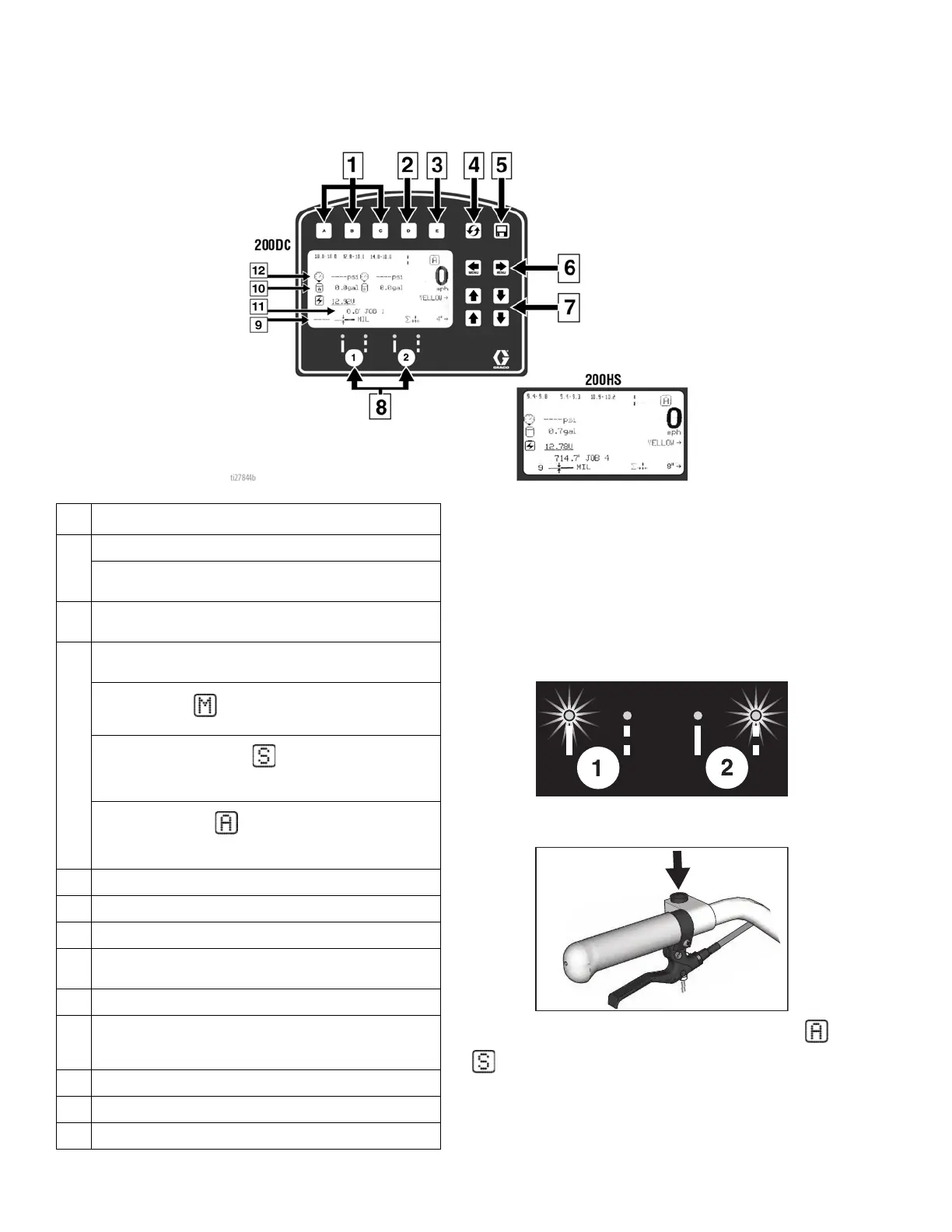

Ref. Description
1
Select a “Favorite”, press for less than one second.
Save a “Favorite”, press and hold for more than three
seconds.
2 Cycles between viewing line width or paint and space
value.
3
Cycles between Manual Mode, Semi-Automatic Mode,
Automatic Mode.
Manual Mode : Press and hold gun trigger control
to stripe.
Semi-Automatic Mode : Press and release gun
trigger control to stripe the programmed length one
time when in Skip Mode.
Automatic Mode : Press and release gun trigger
control to start striping. Press and release button again
to stop.
4 Resets trip distance.
5 Job Data Logger, page 48.
6 Scrolls between menu screens.
7 Paint and Space length OR line width adjustment
buttons.
8 Auto guns activation buttons.
9 MIL thickness. While spraying “Instant MIL avg” is
displayed. When stopped total “Job MIL avg” is
displayed.
10 Total gallons (liters) sprayed.
11 Total line length sprayed.
12 Pressure
ti27893a
