Graco LineLazer V250SPS Repair Parts

Oil Reservoir Pump Replacement
18 3A3394E Repair - Parts
6. Install cable and tighten two set screws.
7. Slide cable sleeve up and tighten screw.
8. Connect five hydraulic hoses to fittings on oil
reservoir. Replace oil filter.
9. Install and tension belts, see Oil Reservoir Belt
Replacement, page 12 and Ground Drive Belt
Replacement, page 11.
10. Fill reservoir and purge hydraulic system, see
Hydraulic System Purging, page 13.

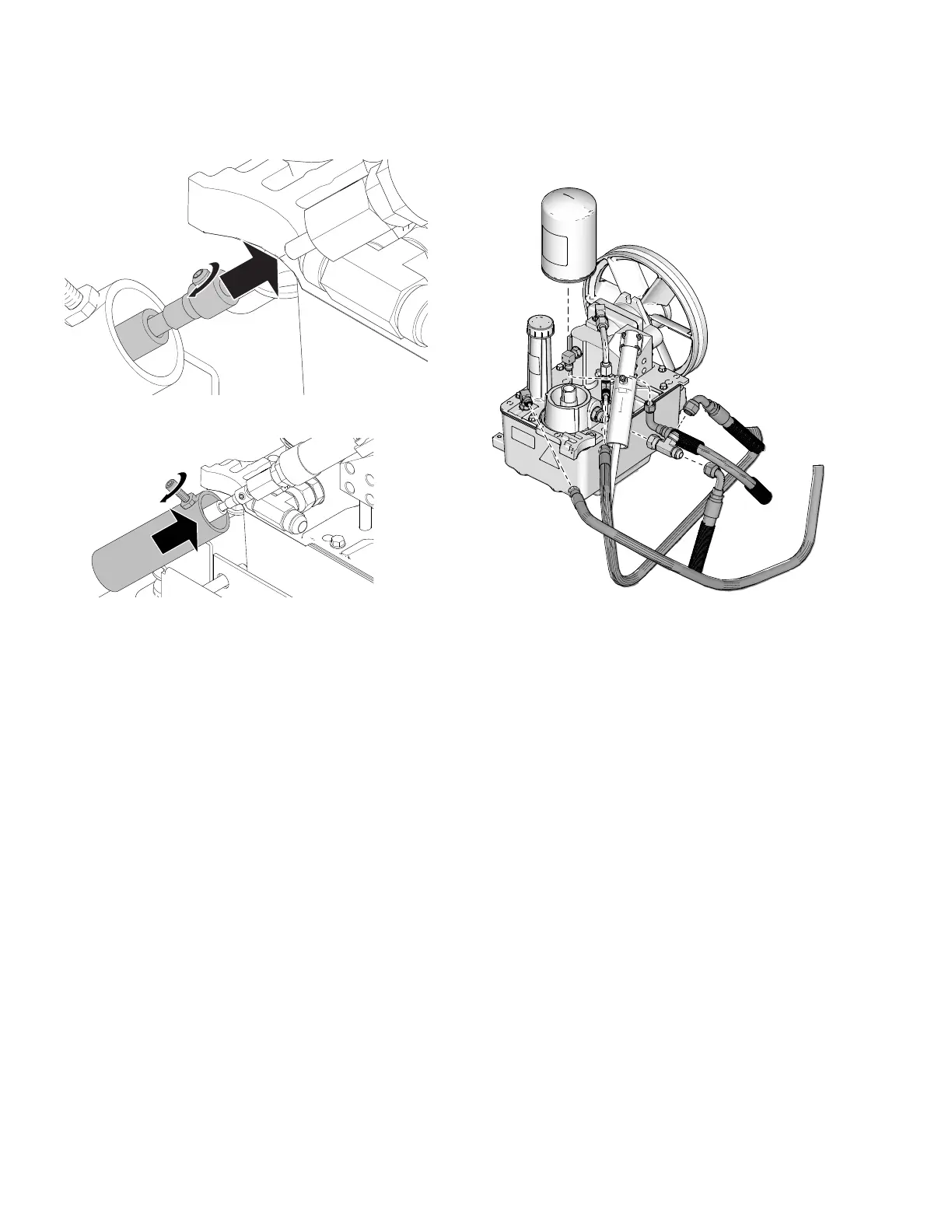

ti19143b
ti19145a
ti23901a
