Graco LineLazer V250SPS Repair Parts

Control Board Replacement
30 3A3394E Repair - Parts
Control Board
Replacement
Removal
1. To disconnect power remove fuse, see Fuse
Replacement, page 34.
2. Remove siphon tube(s) and lid(s).
3. Remove tank(s) from unit.

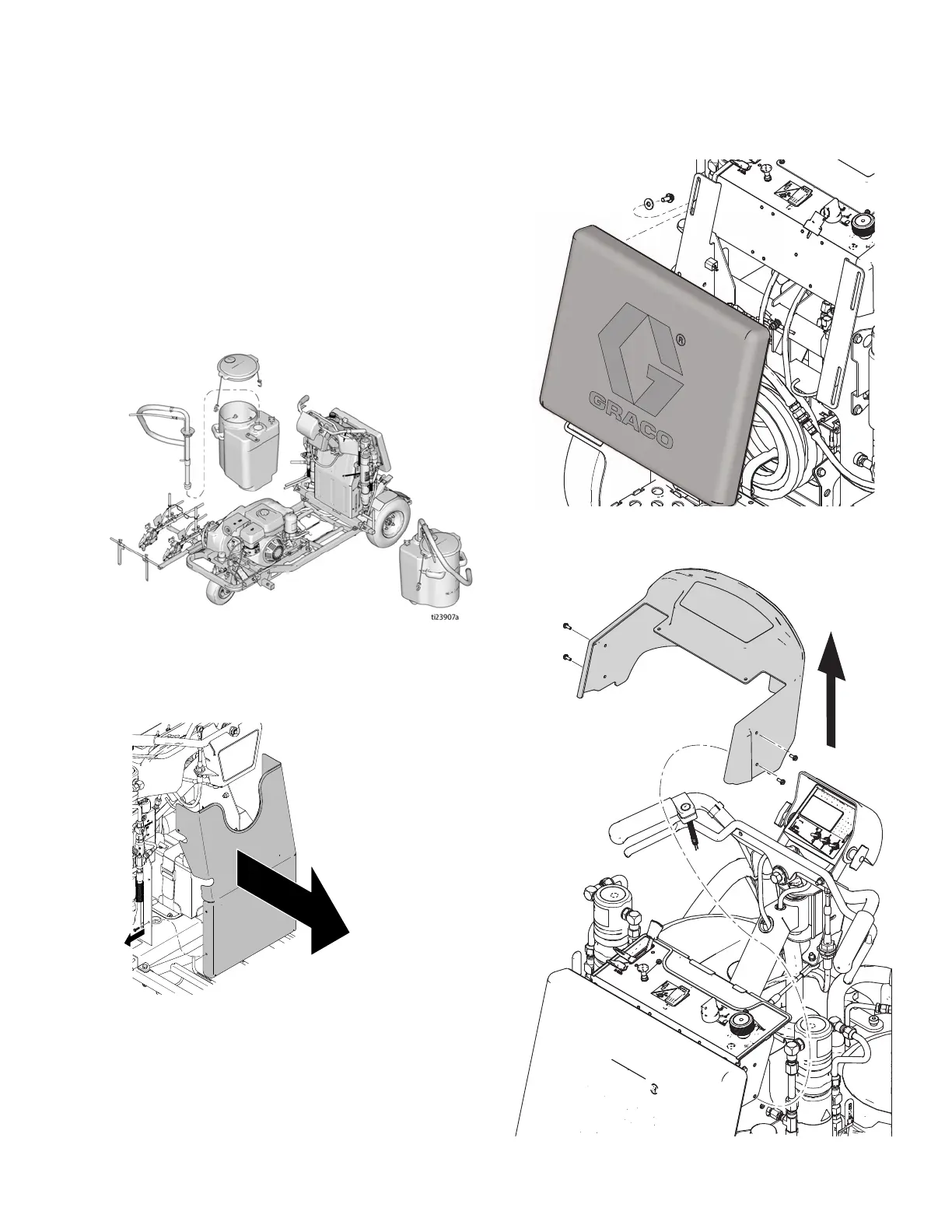

4. Remove six screws and then remove front shield
from unit.
5. Remove four screws and remove pad.
6. Remove six screws and control shroud.
LL250DC Shown
ti19163a
ti23930a
ti23931a
