Hydraulic Gun Manifold Replacement
20 3A3394E Repair - Parts

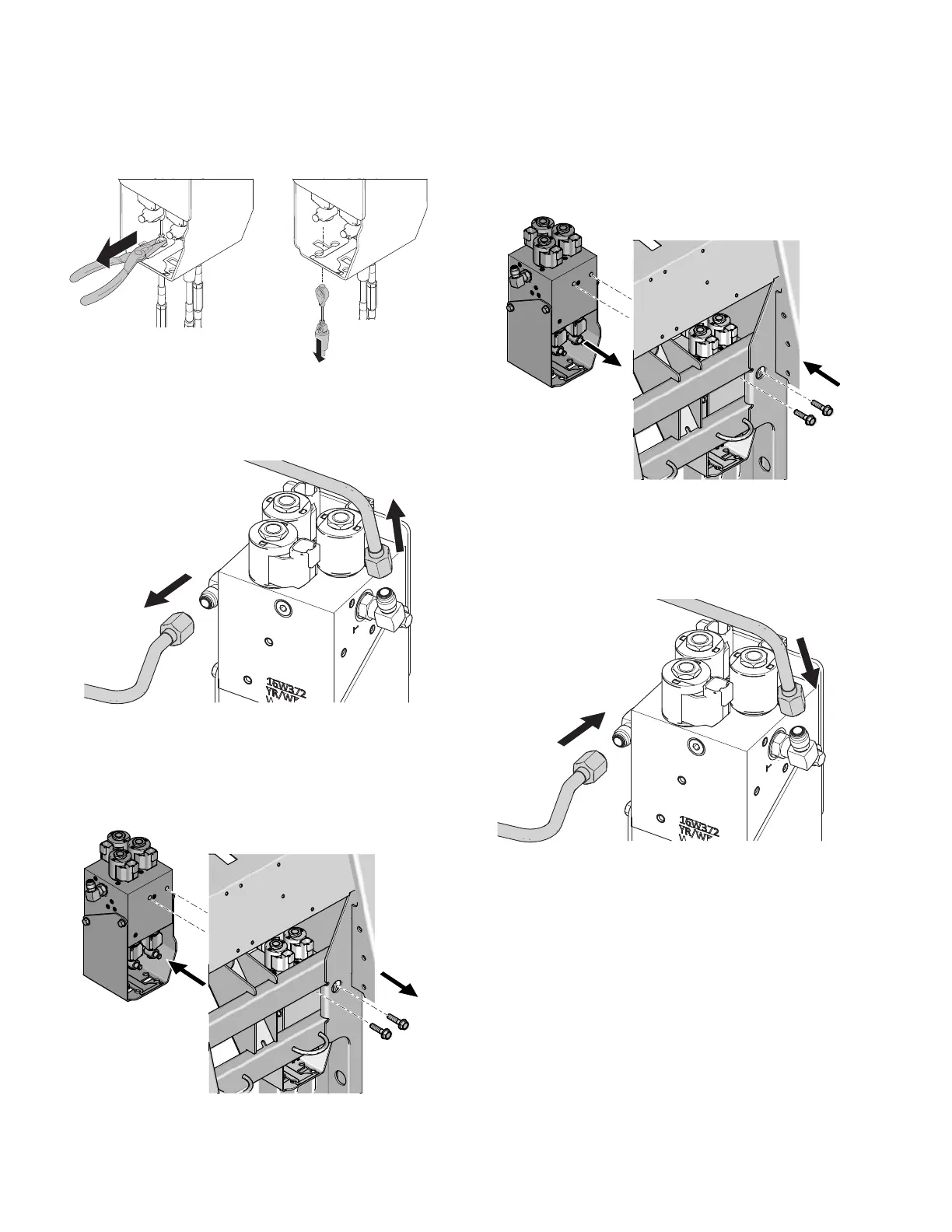

7. Use a needle-nose pliers to remove gun cables from
bracket.
8. Use wrench to disconnect manifold tubes by the
paint pump. NOTE: Oil will spill. Use a rag to con-
tain the oil.
9. Disconnect manifold tubes at manifold.
10. Remove two mounting bolts and slide hydraulic
manifold down and out from unit.
Installation
1. Slide hydraulic manifold in and up into unit. Install
and tighten two mounting bolts.
2. Loosely install manifold tubes to manifold.
3. Loosely install manifold tubes by the paint pump.
Tighten four nuts.
ti23915a
