Graco LineLazer V250SPS Repair Parts

Steering Cable Replacement
3A3394E Repair - Parts 39
Installation

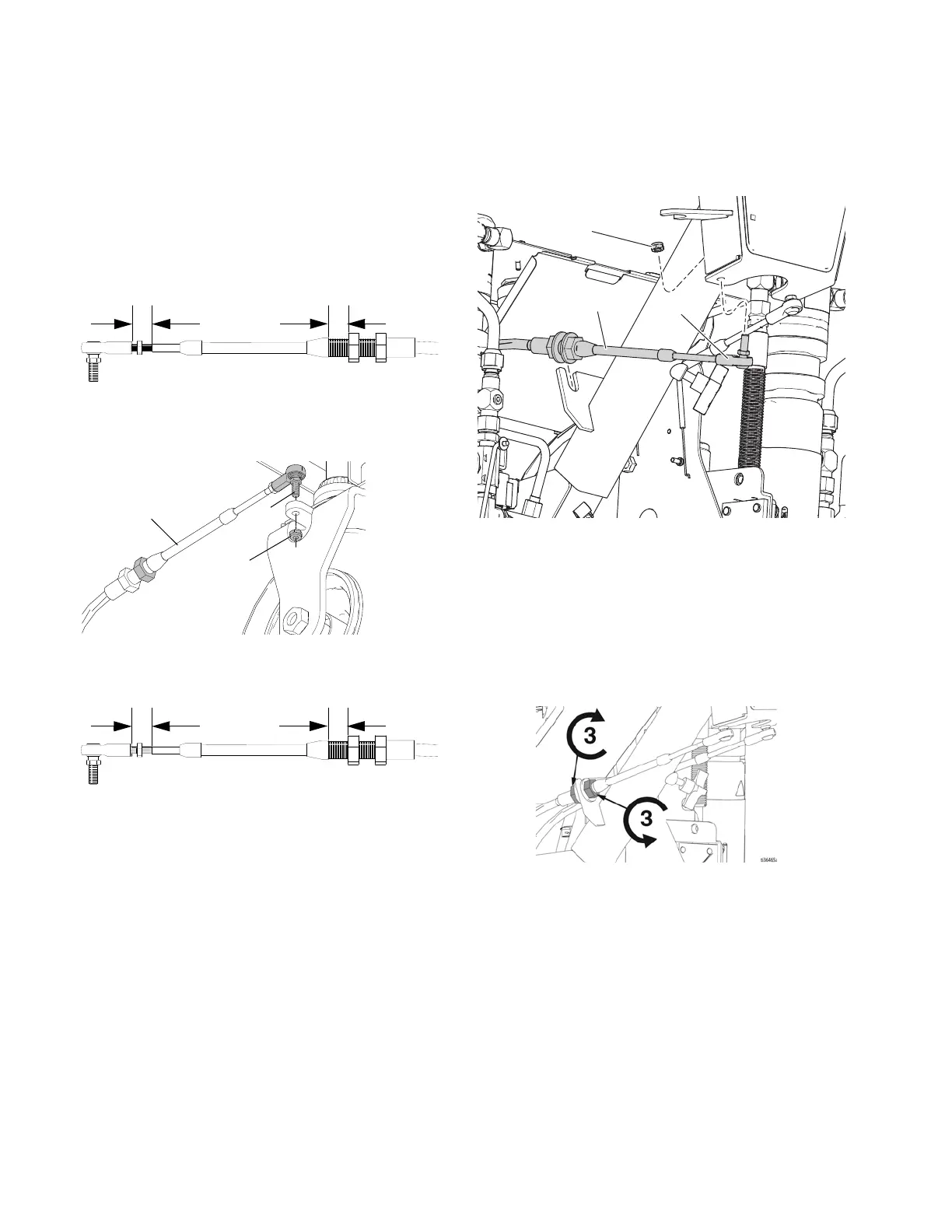

1. Install new cable (48) by following same route as old
cable is being removed.
2. At front wheel, adjust front nut on cable (48) to
match the threads on the other side of front fork.
Install cable (48) into frame bracket and tighten rear
nut.
3. Install ball joint (40) onto cable (48) and match
threads on other side of front fork. Install ball joint
(40) into fork and tighten locknut (3).
4. At handlebar, adjust front nut on cable (48) to match
threads on other side of handlebar. Install cable (48)
into bracket and tighten rear nut.
5. Install ball joint (40) onto cable (48) and match
threads on other side of handlebar. Install ball joint
(40) into handlebar and tighten locknut (3).
6. Verify that handlebar is aligned straight with frame.
If misaligned, adjust nuts on cable (48) to straighten
handlebar to frame.
7. At handlebar, loosen front nut on each cable (48) by
three full rotations. Tighten rear nut on both cables
three full rotations. Verify both front and rear nuts
are tight against bracket.
8. Verify that front wheel self-centers and that steering
is tight and responsive. Ball joint (40) should rotate
easily on the ball. If needed, remove ball joint from
fork and adjust ball joint on cable (48).
9. Install pad and tighten four screws.
10. Remove jack stands and test drive sprayer to check
steering. Adjust if needed. Install cable ties in loca-
tions noted in step 6 of Removal.
11. Verify straight line tracking and adjust if necessary
(see Operation manual).
12. Install control shroud and tighten six screws.
ti19685a
Adjust to match
other side
of front fork
ti19698a
3
40
48
ti19685a
Adjust to match
other side
of handlebar
ti23944a
3
48
40
