Graco LineLazer V250SPS Repair Parts

Clutch Replacement
3A3394E Repair - Parts 25
9. Disconnect clutch connector to main wire harness.
Installation

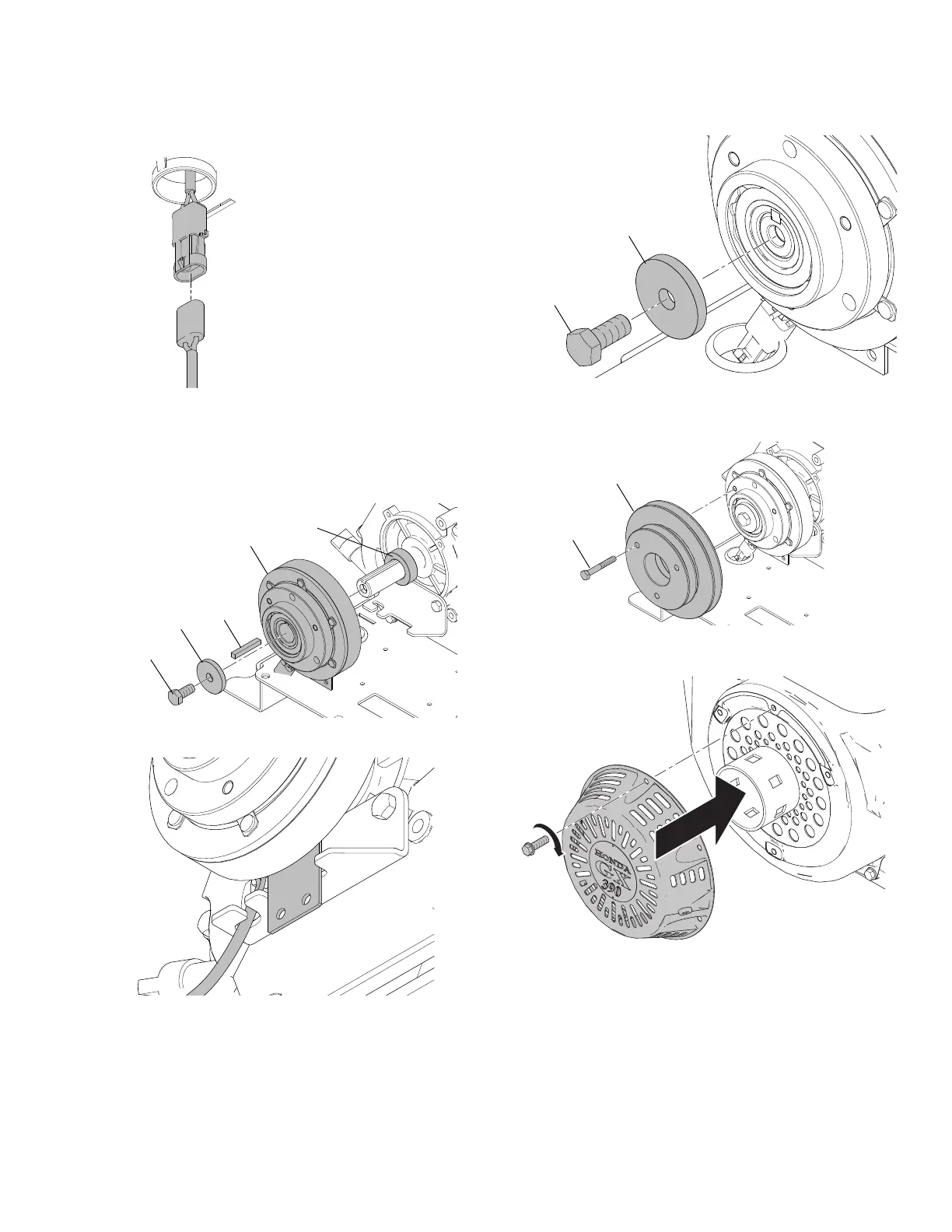

1. Install spacer (56) and key (60) onto crankshaft.
Slide clutch (57) onto crankshaft.
2. Align clutch and wire in bracket.
3. Install heavy washer (58) and bolt (59) onto crank-
shaft. Torque bolt to 45 +/- 5 ft-lb (61 +/- 7 N•m). Use
screwdriver in recoil starter cup to hold crankshaft.
4. Install pulley (61) and torque three screws (81) to 10
ft-lb (13 N•m).
5. Install recoil starter onto engine.
ti19212a
ti19214a
56
60
58
59
57
ti19211a
ti19692a
59
58
ti19216a
81
61
ti23918a
