Oil Reservoir Pump Replacement
3A3394E Repair - Parts 17
Installation

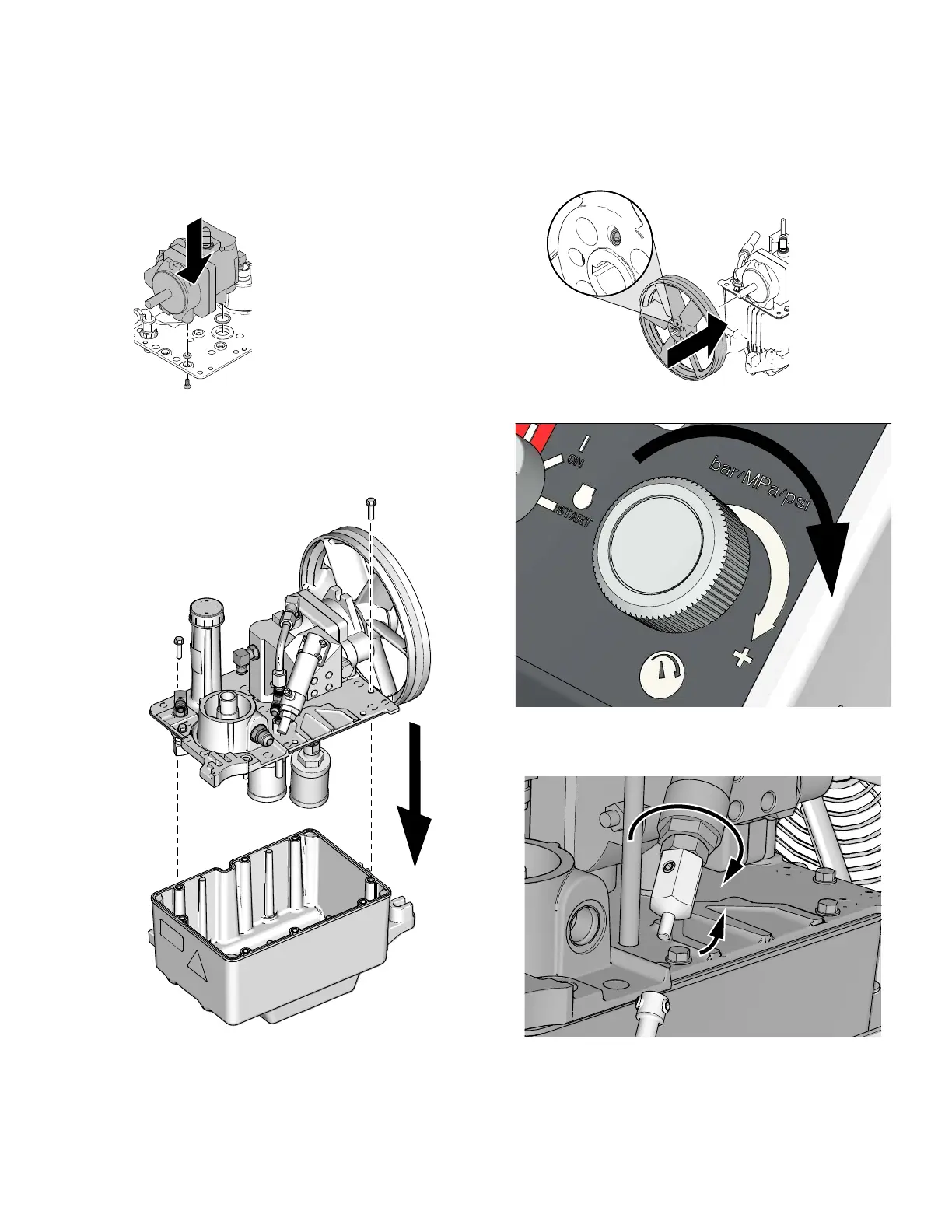

1. Install pump onto oil reservoir cover with four
screws. Make sure the five o-rings are in place.
2. If hydraulic oil is contaminated in reservoir, drain
reservoir and remove contamination. Install oil
reservoir cover with eight screws to the oil reservoir
base.
3. Install pulley on pump shaft and maintain belt align-
ment to inner groove of the clutch pulley. Tighten
two pulley screws.
4. Turn pressure control knob clockwise until seated.
5. Turn hydraulic pump pressure control clockwise
until seated then counterclockwise 1/6 turn.
ti19671a
ti23904a
ti19670a
ti23905a
ti23906a
