Graco LineLazer V250SPS Repair Parts

Hydraulic Gun Manifold Replacement
3A3394E Repair - Parts 19
Hydraulic Gun Manifold
Replacement

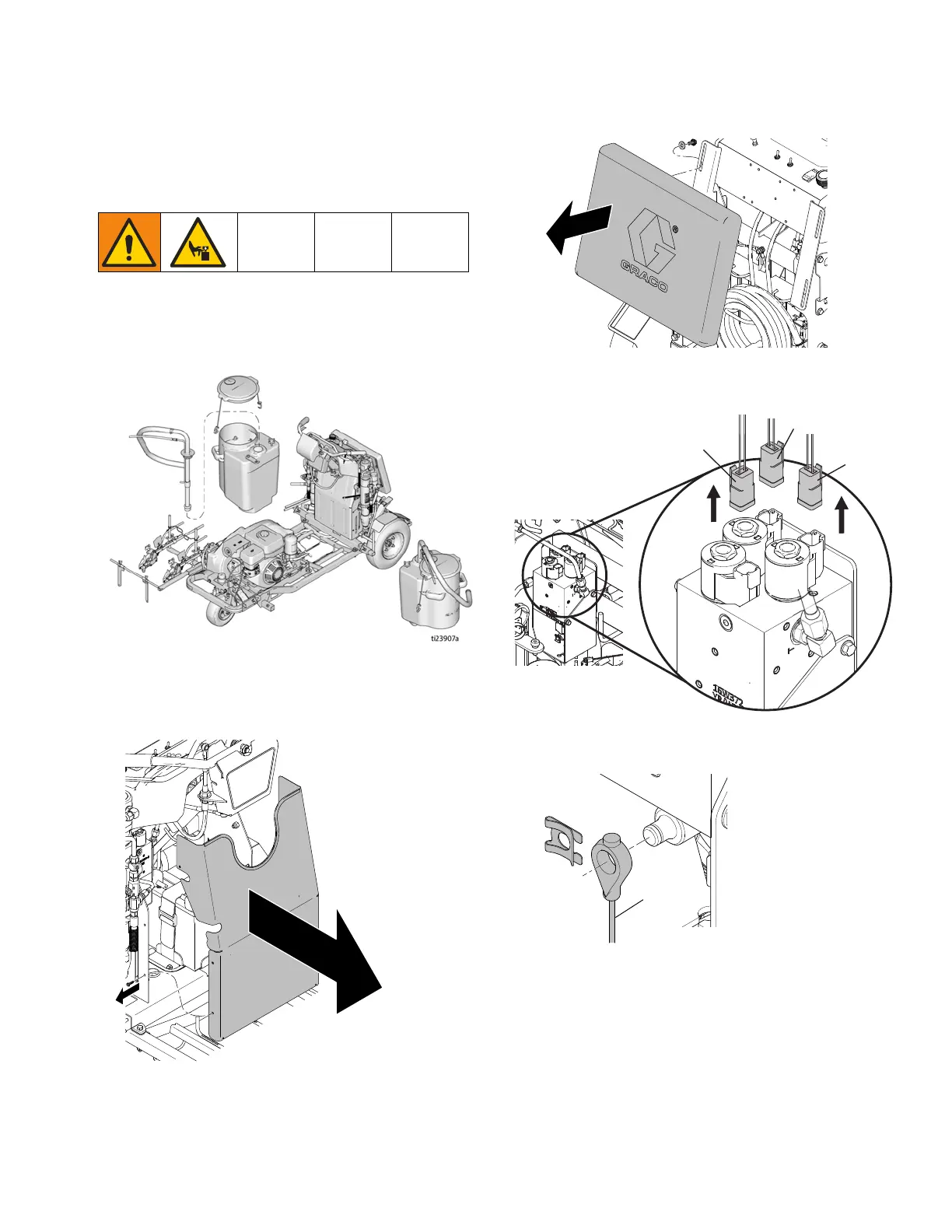

Removal
1. Remove tank lid(s) and siphon tube(s).
2. Remove tank(s) from unit.
3. Remove six screws and then remove front shield
from unit.
4. Remove four screws and pad.
5. Label wire harnesses GUN 1, GUN 2, and GUN 3.
Disconnect three wire harnesses from solenoids.
6. Label gun cables GUN 1, GUN 2, and GUN 3. Dis-
connect gun cables from actuators.
LL250DC shown
ti19163a
ti19164a
ti23909a
Gun 2
Gun 3
Gun 1
ti19159a
Gun #
