Engine Replacement
3A3394E Repair - Parts 27

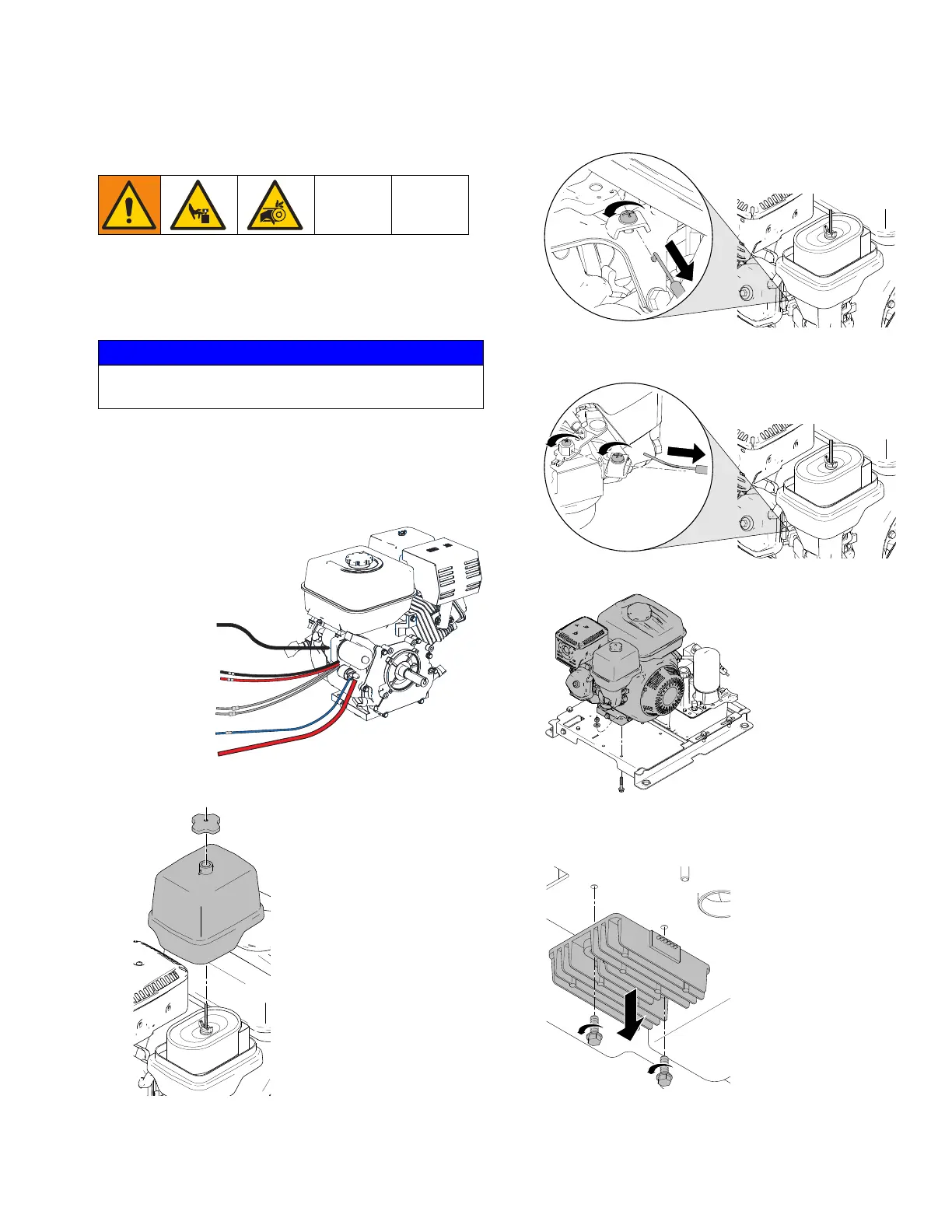

Engine Replacement
Removal
1. Remove clutch, see Clutch Replacement, page 24.
2. Disconnect two negative (black) battery wires at bat-
tery. Negative battery post is located above platform
on the left side.
3. Disconnect seven wires from engine.
4. Remove air filter cover, element and base.
5. Disconnect throttle cable.
6. Disconnect choke cable.
7. Remove four mounting bolts from engine.
8. Remove engine. NOTE: Engine voltage regulator is
located below engine mounting plate. Remove two
screws and disconnect wires.
NOTICE
To reduce the risk of battery damage and shorts,
always disconnect NEGATIVE (black wire) first.
Voltage Regulator
Battery
To Next Page
