Maintenance
20 3A8099A
NOTE: Always point the gun down during cleaning to
prevent solvent entering the gun air passages. Solvent
left in gun air passages could result in a poor quality
paint finish.
6. Clean the outside of the gun with a soft cloth.
7. Clean or replace the inline fluid filter (14).
8. Check the trigger (9) and the fan adjustment knob
(21g) movement. Lubricate or repair if necessary.
See F
IG. 32.
9. Check fluid hoses for leakage. Tighten fittings or
replace equipment as needed.
NOTE: Do not use any cleaning method that allows
solvent into the gun air passages. Solvent left in gun air
passages could result in a poor quality paint finish.

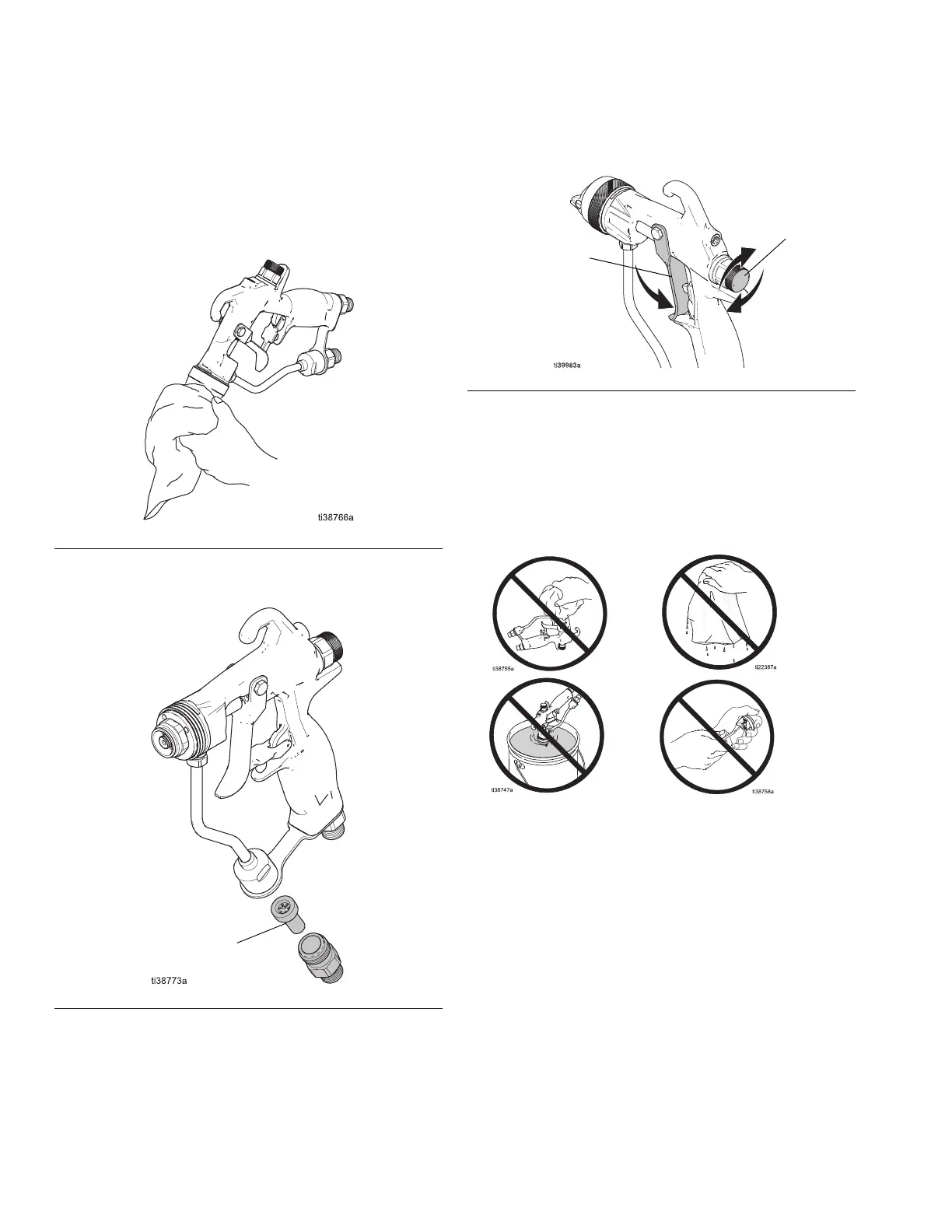

FIG. 30: Clean the outside
FIG. 31: Check the inline fluid filter
FIG. 32: Check the trigger and fan adjustment knob
.
• Do not point gun up while cleaning.
• Do not wipe the gun with a cloth soaked in solvent;
wring out the excess.
• Do not immerse the gun in solvent.
• Do not use metal tools to clean the air cap holes;
this may scratch them. Scratches may distort the
spray pattern.
