Check Valve Rebuild Kit
Installation
Prepare Machine for Kit Installation
1. Relieve pressure. See Pressure Relief Procedure,
page 13.
2. To prevent machine movement, press the Machine
Disable Mode key ( ).
3. Place a waste container below the dispense valve to
catch any dispensed material.
4. Push the drive block (104, AA) forward until pistons
are fully extended. See F
IG. 5 and FIG. 6 on
page 24.
5. Move the waste container to below the check
valve (514).
6. Disconnect the male hose fitting from the check
valve housing (513) by loosening the hose from the
housing. See Pump Sub-Assembly, LC0112,
page 46.
7. Remove the check valve housing (513) from the
pump endcap (508) by loosening the housing with a
wrench.
8. Remove the existing check valve (514) from the
housing by inserting a screwdriver or dowel rod into
the female threaded end of the check valve
housing (513).
9. Place the new check valve ball guide (2103) on a
bench with the open end up. Install the check valve
spring (2102) into the guide.
10. Install the check valve ball (2101) on top of the
spring (2101).
11. Place the seat (2104) on top of the check valve
ball (2101) with the outside chamfered side of the
seat facing away from the check valve ball.
12. Hold both ends of the assembled check valve
assembly and install the check valve into the
unthreaded end of the check valve housing (513)
with the ball end facing out. See F
IG. 7 on page 28.
13. Apply pressure to the valve to snugly fit the assem-
bled check valve (514) into the check valve
housing (513). Fit the check valve seat (2104) into
the valve guide. See F
IG. 7 on page 28.
14. Use a wrench to insert the new valve and valve
housing into the pump end cap (508).
15. Install the material male hose fitting into the check
valve housing using a wrench.
16. Before operating the machine, activate a few shots
to purge any air present in the material hose lines.
17. Calibrate the machine if necessary. See the appro-
priate operation manual referenced at the beginning
of this manual for procedure.
See Pump Sub-Assembly, LC0112, page 46 for
pump sub-assembly part references.

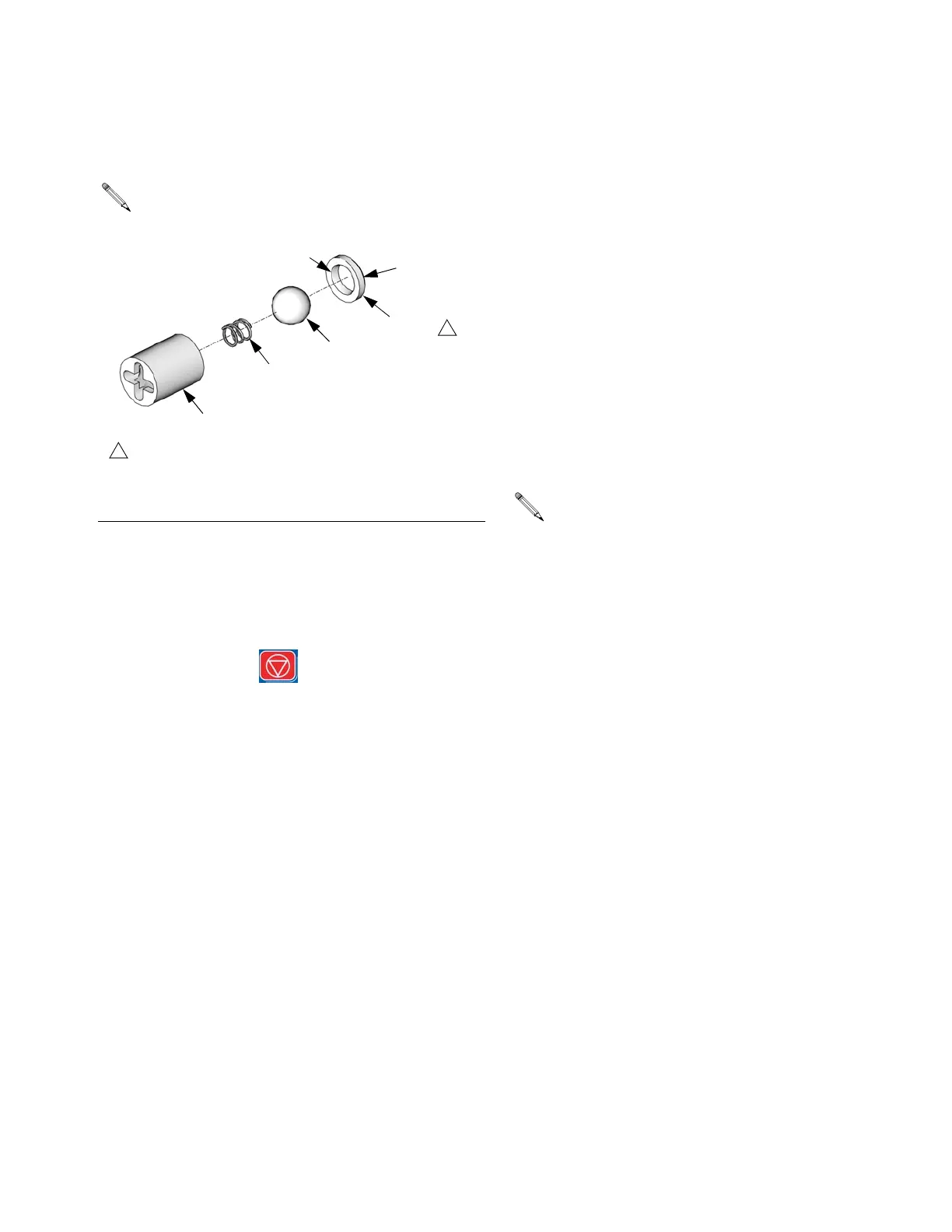

F
IG. 8: Assembly LC0093
1
Side of seat with outside chamfer must face away
from ball. Side of side with inner radius must face the
ball.
1
2104
2101
2102
2103
ti12565a
Outside
Chamfer
Inner Radius
Verify when the assembled check valve (514) and
housing (513) are turned up-side down that the
contents of the check valve stay in place.
