Parts
312760A 41

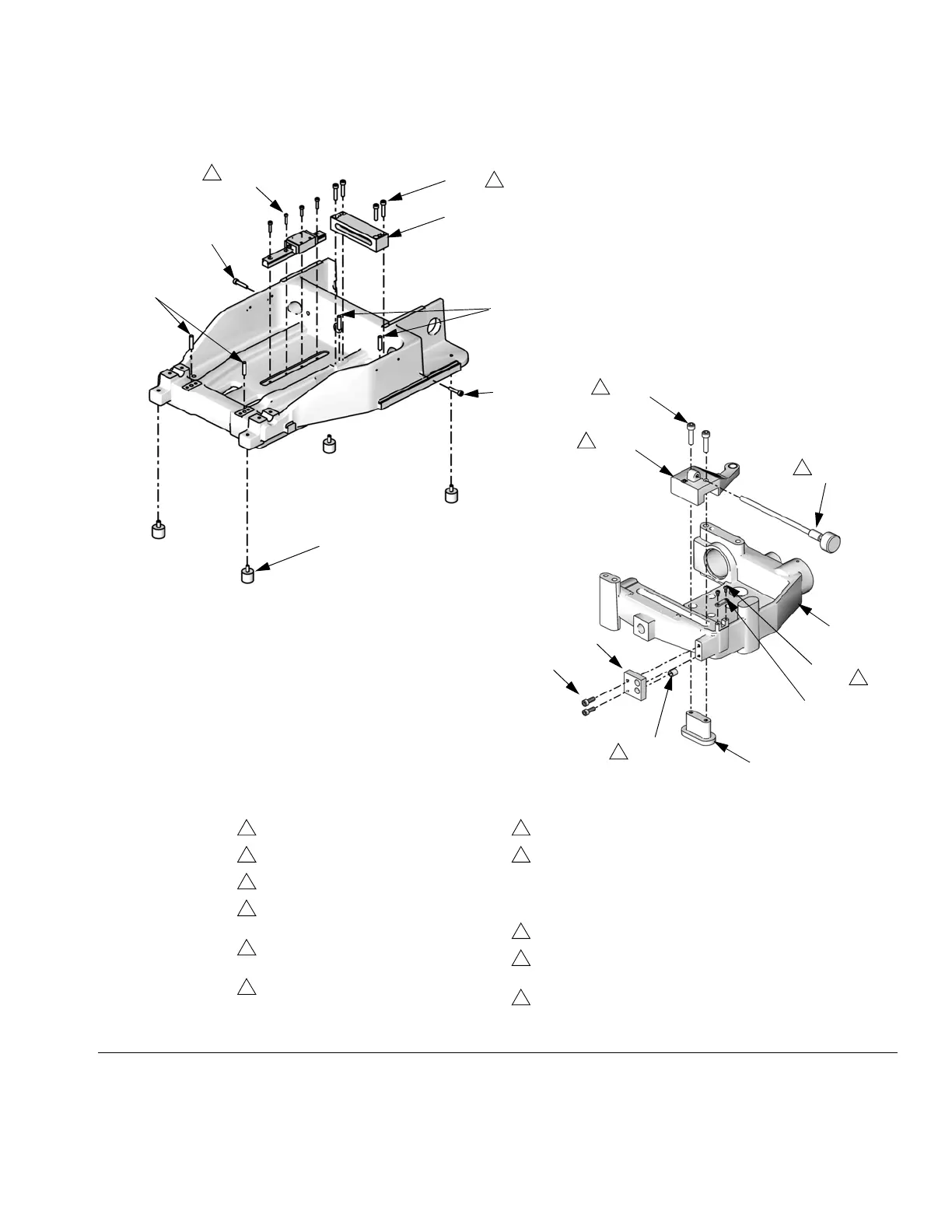

Variable Ratio Frame Sub-Assembly, LC0232
F
IG. 15
2409
ti12568a
ti12569a
2406
2409
2409
2436
2404
2404
2430
2406
2416
2417
2415
2432
2405
2427
2418
2401
2426
5
2
1
5
1
7
10
Torque screws to 140 in-lb (15.8 N•m).
Torque screws to 350 in-lb (39.5 N•m).
Torque stud to 780 in-lb (88.1 N•m).
Ref 2414 and 2428 must be oriented as
shown.
Lubricate bearing and threaded
surfaces with 115982.
Torque to 35 in-lb (3.9 N•m).
Torque to 8 in-lb (0.9 N•m).
Tighten retaining nut until alignment rod
(2419) cannot be moved. Then loosen
retaining nut until alignment rod can
move side to side with no in-and-out
movement.
Torque to 19 in-lb (2.1 N•m).
Bond 2418 into 2427 using adhesive,
part 071023.
Press fit 2403 into 2424.
1
2
3
4
5
6
7
8
9
10
11
Drive Block Rear Parts
