Parts
52 312760A
Controls
There are three options for controls.
Advanced Display Module with one Fluid Control
Module, LC0274
Advanced Display Module with two Fluid Control
Modules, LC0275
Standard Display Module, LC0298
Fluid Control Module

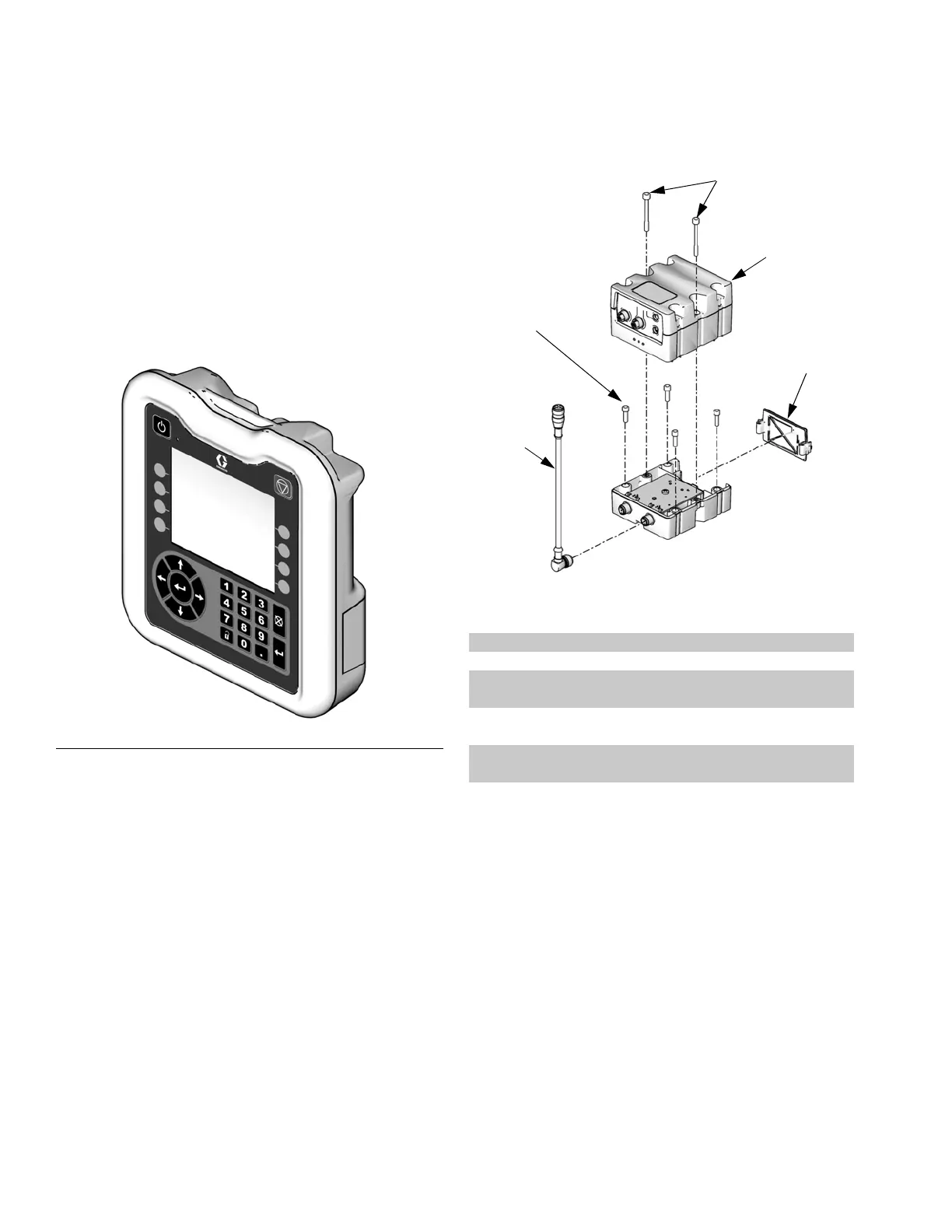

FIG. 17: Advanced Display Module, LC0269
ti12362a
Ref Part Description Qty
701 289697 MODULE, base 1
702 277674 ENCLOSURE, door 1
703 121597 CABLE, CAN, 90 female / 90
female
1
704 113003 SCREW, socket head cap,
10-32 x 0.62, stainless steel
4
705 LC0271 MODULE, assembly,
Fluid Control Module
1
705b
705a
702
703
704
ti12711a
