Parts
312760A 47
Control Bracket, LC0240, LC0261
* Not shown.
Replacement Danger and Warning labels, tags, and cards are available at no cost.
Apply thread sealant tape to male npt threads.
1
2513b
ti12568a
1

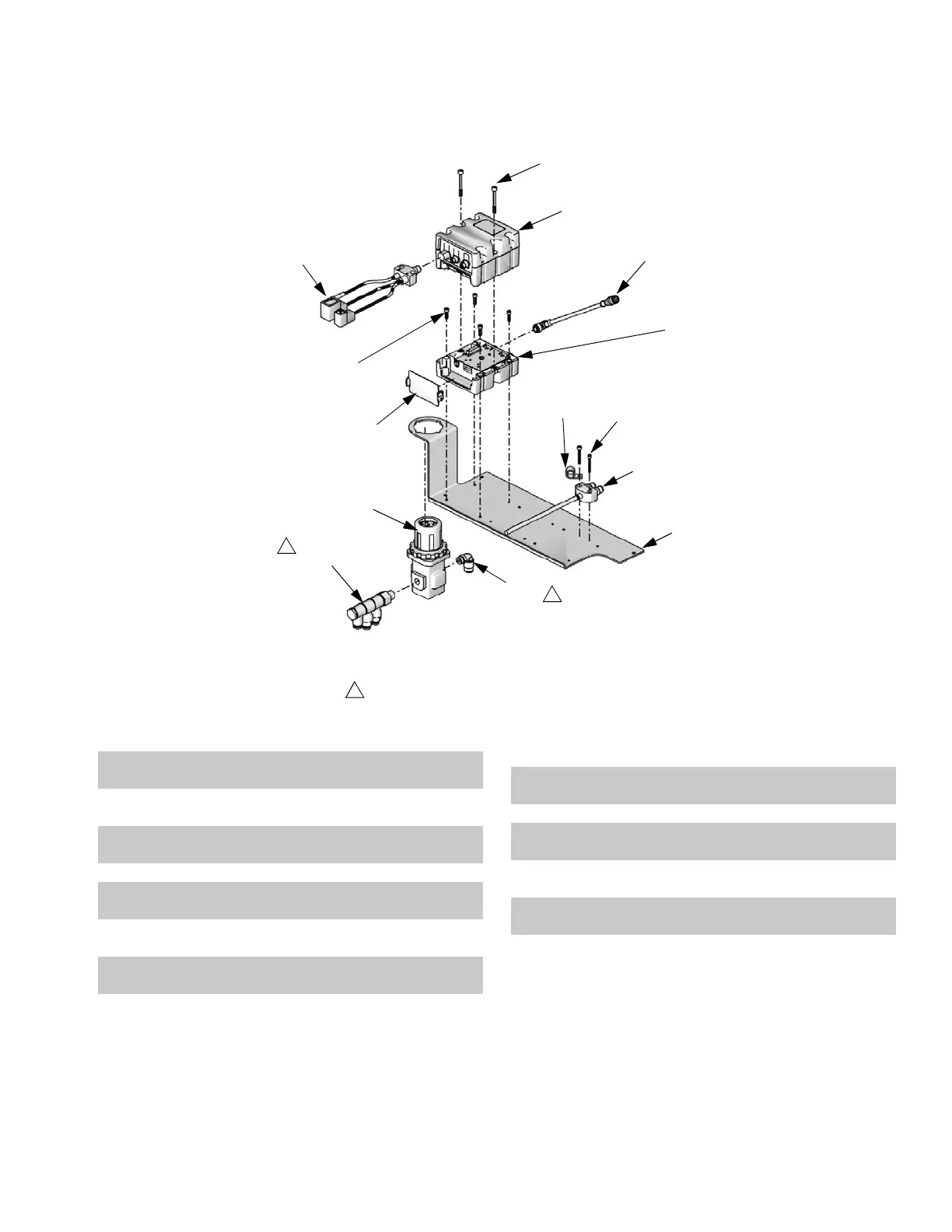

Assembly LC0240 Shown
2513a
2510
2512
2505
2511
2501
2508
2509
2506
2507
2503
2502
2504
1
Ref Part Description Qty
2501 15T735 BRACKET, control mounting
(assembly LC0240 only)
1
15U737 BRACKET, control mounting
(assembly LC0261 only)
1
2502 120897 REGULATOR, air, with integral
gage
1
2503 120954 MANIFOLD, inlet, banjo 1
2504 121018 FITTING, elbow, male, swivel,1/4
NPT
1
2505 LC0291 CABLE, power
(assembly LC0240 only)
1
2506 113003 SCREW, socket head cap,10-32 x
0.62, stainless steel
4
2507 289697 BASE, Fluid Control Module 1
2508 121583 HARNESS, I/O, M12 x M8 x sub-
micro x mini
1
2509 277674 ENCLOSURE, cube door 1
2510 121685 CABLE, CAN, M12 x M12, 5P,
female-female, straight x right
1
2511 121860 SCREW, M4 x 0.7, 30 mm long,
stainless steel
2
2512 84/0153-
1/89
CLAMP, harness, nylon 1
2513 LC0271 MODULE, Fluid Control, assembly 1
Ref Part Description Qty
