Graco PR70 - Applicator Mounting

Parts
312760A 53

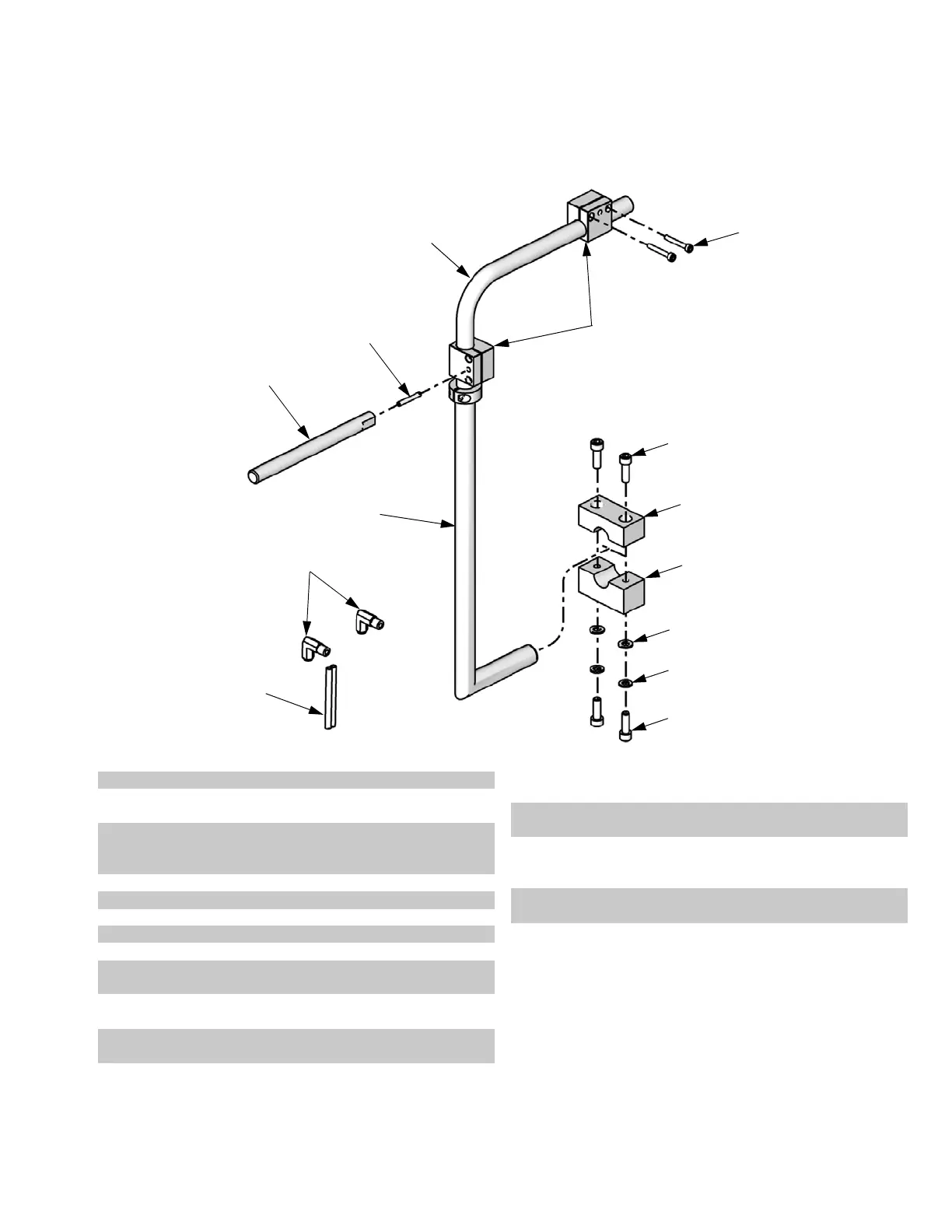

Applicator Mounting
*Not shown.
808
806
807
811
812
813
814
809
810
805
804
802
803
801
ti12439a
Ref Part Description Qty
801 15K836 BASE, arm, mounting 1
802 15K833 ARM, mounting, twnmxr (assem-
blies 256439 and LC0292 only)
1
15K866 ARM, mounting, HMI only
(assemblies 256438 and LC0293
only)
1
803 15K844 BLOCK, mounting, twnmxr 2
804 120950 SCREW 1
805 15K832 ARM, mounting, display 1
806 120913 SCREW 2
807 15M658 CLAMP 1
808 121273 SCREW, socket head cap, M5-0.8
x 35, mild steel
2
809 121046 TUBE, 1/4 x 1/4 twin, polyure-
thane
6
810 94/0705-1/96 FITTING, elbow, swivel, 1/4 tube
x 1/8 npt
2
811 15U176 CLAMP, base (assemblies
256438 and LC0293 only)
1
812 120908 WASHER, plain M8 (assemblies
256438 and LC0293 only)
2
813 96/0045/98 WASHER, lock, split, 5/16 in.,
stainless steel (assemblies
256438 and LC0293 only)
2
814 120913 SCREW (assemblies 256438 and
LC0293 only)
2
815 * 121003 CABLE, CAN, female / female
3.0 m (assemblies 256438 and
LC0293 only)
1
Ref Part Description Qty
