Parts
312760A 59

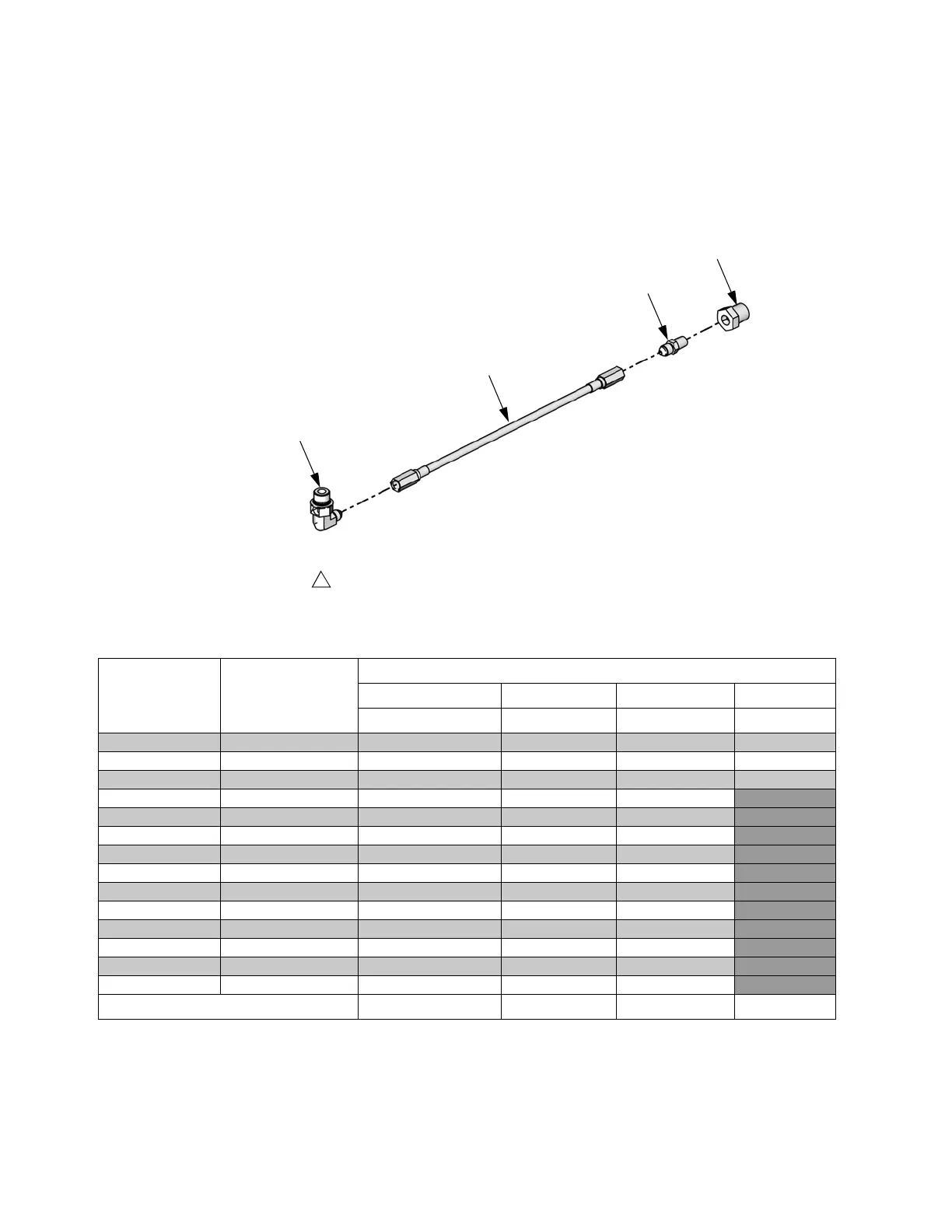

Hose Packages
Unheated, Non-Recirculating Hoses
1404
1403
1401
1402
Apply thread sealant tape to male npt threads before assembly.
1
Assembly LC0801 Shown
ti12446a
Hose Package Description
Reference Number and Description
1401 1402 1403 1404
Hose Assembly 90 Deg Elbow Adapter Bushing
LC0801 3/16 in. x 30 in. 61/0036-S30/11 94/0144-S/25 94/1000/98 94/0488/98
LC0802 3/16 in. x 120 in. 61/0036-S120/11 94/0144-S/25 94/1000/98 94/0488/98
LC0803 3/16 in. x 180 in. 61/0036-S180/11 94/0144-S/25 94/1000/98 94/0488/98
LC0804 1/4 in. x 30 in. 61/0037-S30/11 94/0148-S/25 J6900040
LC0805 1/4 in. x 120 in. 61/0037-S120/11 94/0148-S/25 J6900040
LC0806 1/4 in. x 180 in. 61/0037-S180/11 94/0148-S/25 J6900040
LC0807 3/8 in. x 30 in. 61/0038-S30/11 94/0149-S/25 94/1007/98
LC0808 3/8 in. x 120 in. 61/0038-S120/11 94/0149-S/25 94/1007/98
LC0809 3/8 in. x 180 in. 61/0038-S180/11 94/0149-S/25 94/1007/98
LC0810 1/2 in. x 30 in. 61/0039-S30/11 94/0150-S/25 94/1009/98
LC0811 1/2 in. x 120 in. 61/0039-S120/11 94/0150-S/25 94/1009/98
LC0812 1/2 in. x 180 in. 61/0039-S180/11 94/0150-S/25 94/1009/98
LC0813 3/4 in. x 120 in. 61/0040-S120/11 94/0153-S/25 94/1083/98
LC0814 3/4 in. x 180 in. 61/0040-S180/11 94/0153-S/25 94/1083/98
Quantity 1111
