Parts
60 312760A
Unheated, Recirculating Hose Packages
1603
1602
1603
1602
1601
1601
2
Apply thread sealant tape to male npt threads before assembly.
Dispense valve shown for reference only.
1
2
ti12444a

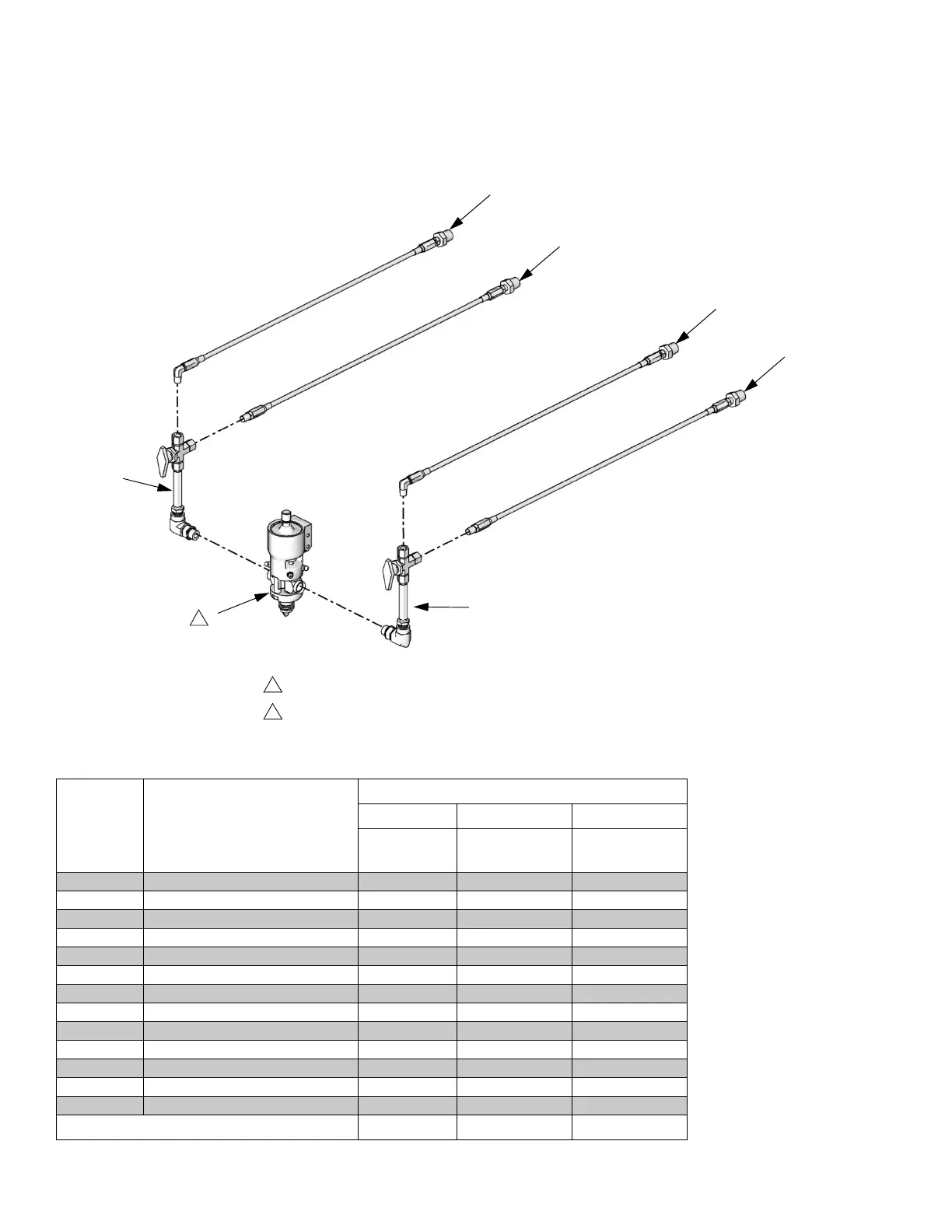

Assembly LC0161 shown installed as the
Low Volume and High Volume Side Hose
Package
Hose
Package Description
Reference Number and Description
1601 1602 1603
Valve
Assembly
Supply Hose
Assembly
Return Hose
Assembly
LC0161 3/16 in. x 30 in., on-board 255977 255983 255997
LC0162 3/16 in. x 120 in., on-board 255977 255984 255998
LC0163 3/16 in. x 180 in., on-board 255977 255985 255999
LC0164 1/4 in. x 30 in., on-board 255976 255986 258058
LC0165 1/4 in. x 120 in., on-board 255976 255987 258059
LC0166 1/4 in. x 180 in., on-board 255976 255988 258060
LC0167 3/8 in. x 30 in., on-board 255975 255989 258061
LC0168 3/8 in. x 120 in., on-board 255975 255990 258062
LC0169 3/8 in. x 180 in., on-board 255975 255991 258063
LC0170 1/2 in. x 30 in., on-board 255974 255992 258064
LC0171 1/2 in. x 120 in., on-board 255974 255993 258065
LC0172 1/2 in. x 180 in., on-board 255974 255994 258066
LC0173 3/4 in. x 120 in., on-board 255974 255995 258067
Quantity 11 1
