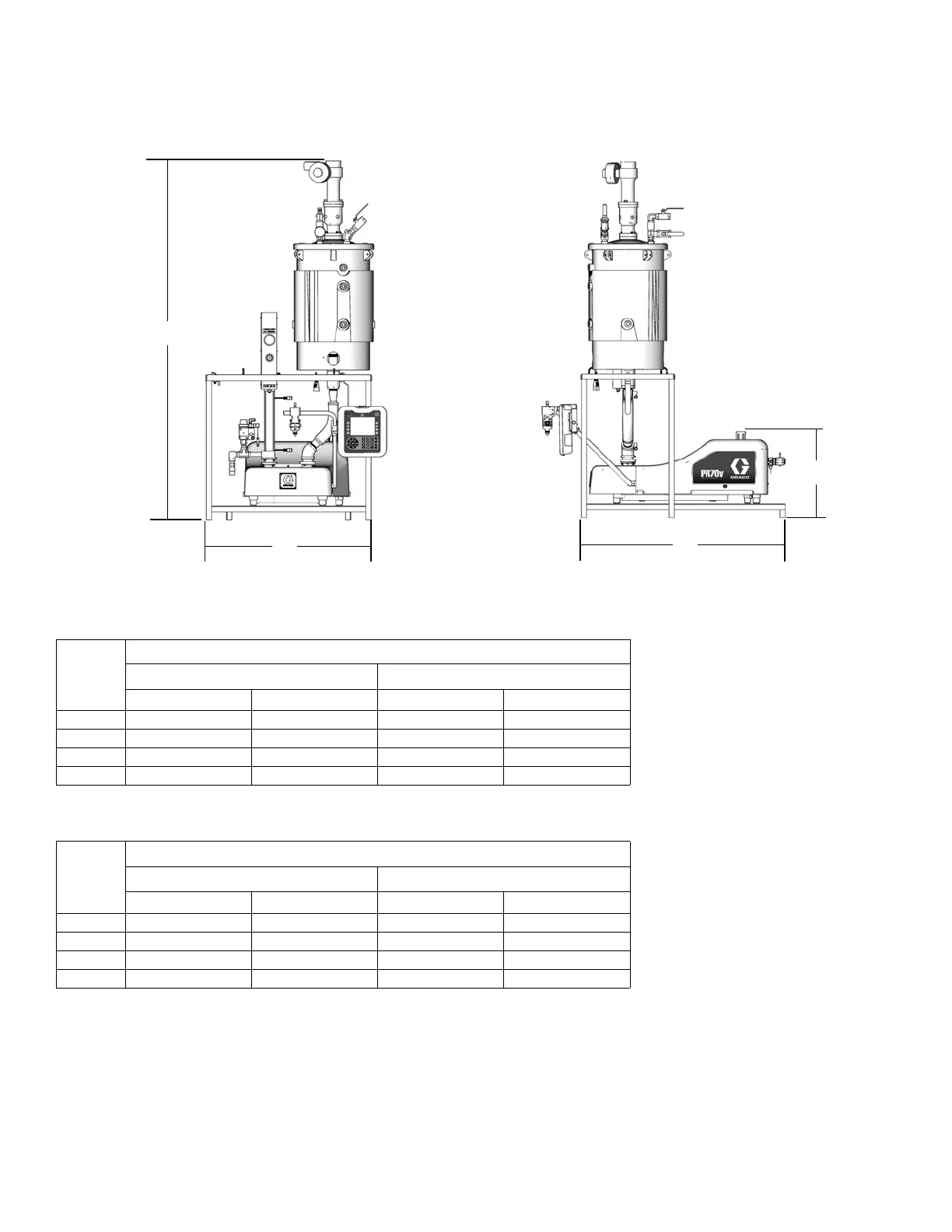

Dimensions
70 312760A
Machine with Off-Board Tanks
PR70
PR70v
† Assembly dimensions listed are maximum for all assemblies under the given title.
C
B
A
D
ti12623a
ti12624a
Ref
† Assembly Dimensions, in. (mm)
30 L Tank 60 L Tank
No Agitators With Agitators No Agitators With Agitators
A 75.7 (1923) 73.9 (1877) 64.9 (1648) 84.7 (2151)
B 32.1 (815) 32.1 (815) 32.1 (815) 32.1 (815)
C 29.3 (236) 29.3 (236) 29.3 (236) 29.3 (236)
D 16.0 (406) 16.0 (406) 16.0 (406) 16.0 (406)
Ref
† Assembly Dimensions, in. (mm)
30 L Tank 60 L Tank
No Agitators With Agitators No Agitators With Agitators
A 75.7 (1923) 73.9 (1877) 64.9 (1648) 84.7 (2151)
B 32.1 (815) 32.1 (815) 32.1 (815) 32.1 (815)
C 40.1 (1019) 40.1 (1019) 40.1 (1019) 40.1 (1019)
D 17.0 (432) 17.0 (432) 17.0 (432) 17.0 (432)
