Graco PR70 - Parts; Fixed Ratio Base, LC0262, LC0263, LC0264, LC0265

Parts
312760A 33
Parts
Fixed Ratio Base, LC0262,
LC0263, LC0264, LC0265

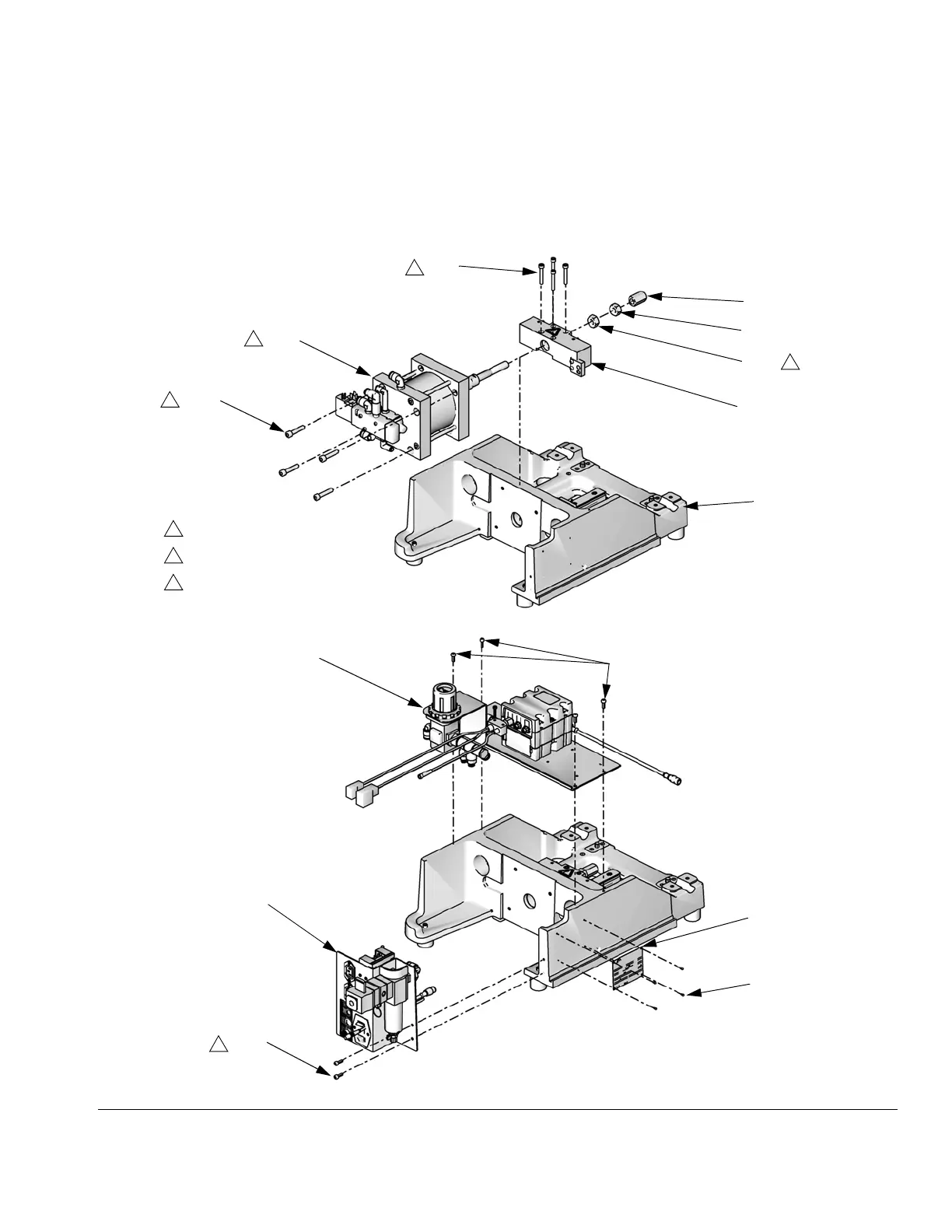

FIG. 9
100d
100b
107
105
106
108
103
104
Torque to 85 in-lb (9.6 N•m).
Torque to 350 in-lb (39.5 N•m).
Torque to air cylinder shaft
to100 ft-lb (135 N•m).
1
2
3
2
3
2
3
ti12436a
111
110
109
118
119
1
ti12486a
109
