Parts
40 312760A
Variable Ratio Base continued
* Not shown.
▲
Replacement Danger and Warning labels, tags, and
cards are available at no cost.

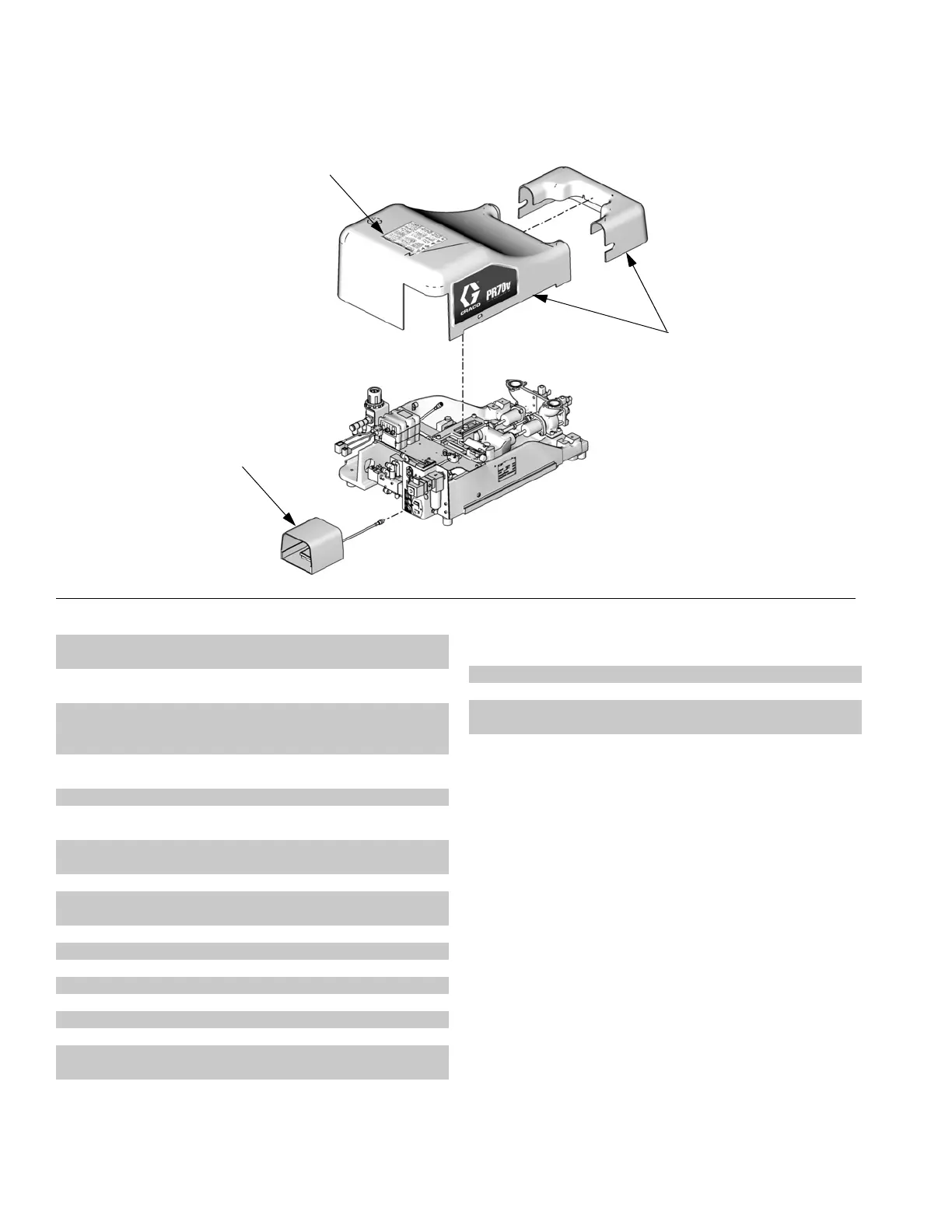

FIG. 14
214
206
ti12475a
214a
Ref Part Description Qty
200a 120920 SHOCK ABSORB, adjustable
(models LC0243 and LC0245 only)
1
200b 111260 SCREW, set, cup point
(models LC0243 and LC0245 only)
1
200c 121589 SCREW, hex head cap, M12 x
1.75, 80 mm long
(models LC0243 and LC0245 only)
1
200d 107539 NUT, hex
(models LC0243 and LC0245 only)
1
201 LC0232 FRAME, sub-assembly 1
202 LC0230 CYLINDER, air, 3.0 in. diameter
(models LC0242 and LC0243 only)
1
LC0231 CYLINDER, air, 4.5 in. diameter
(models LC0244 and LC0245 only)
1
203 LC0112 PUMP, sub-assembly 1
204 LC0239 BRACKET, incoming power,
sub-assy
1
205 LC0240 BRACKET, control, sub-assembly 1
206 255244 SWITCH, foot, assembly 1
207 120885 SCREW 5
208 120913 SCREW 4
209 121167 SCREW 4
210 84/0001-6/11 PLATE, legend, serial number 1
211 96/0235/98 SCREW, drive, type U, #2 x 3/16 4
212 61/2904-BK/1
1
HOSE, 0.160 ID x 0.250 OD, PU,
95 DUR
1
213 61/2906-BK/1
1
HOSE, 0.245ID x 0.375 OD, PU, 95
DUR
1
214 LC0246 SHIELD, assembly 1
214a ▲15M511 LABEL, shield 1
215 * 121852 PROTECTOR, wire, corrugated,
5/8 in. ID
8
* 121852 PROTECTOR, wire, corrugated,
5/8 in. ID
5
Ref Part Description Qty
To Next Page
