Setup
3A0248C 15

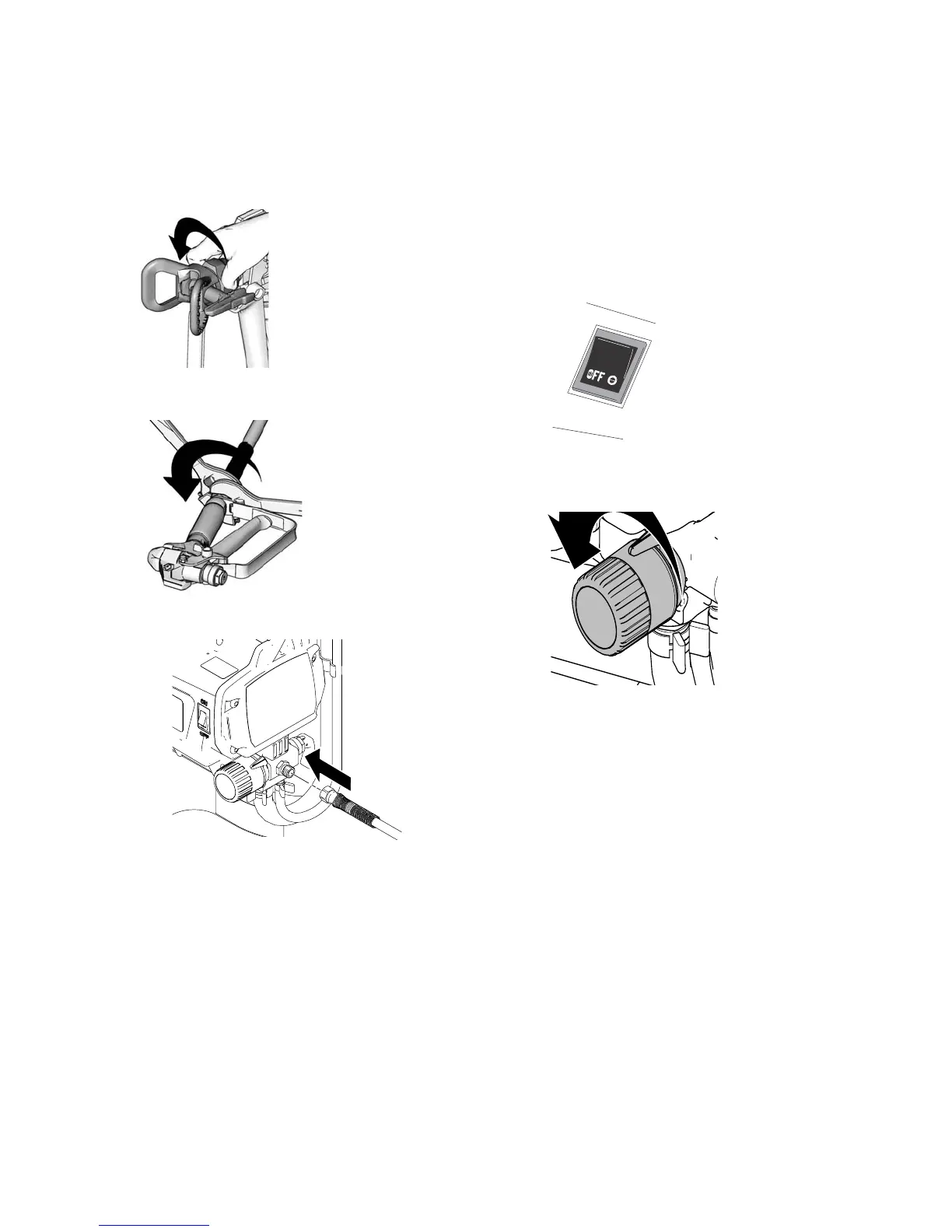

Setup
1. Unscrew tip and guard assembly from gun.
2. Uncoil hose and connect one end to gun. Use two
wrenches to tighten securely.
3. Connect other end of hose to sprayer.
4. Turn OFF power switch.
5. Turn Pressure Control Knob all the way left (coun-
ter-clockwise) to minimum pressure.
ti12960a
ti9681a
ti14955a
NOTE: If hose is already connected, make sure
connections are tight.
ti2810a
ti12940a
