Parts List
32 3A0248C
Parts List

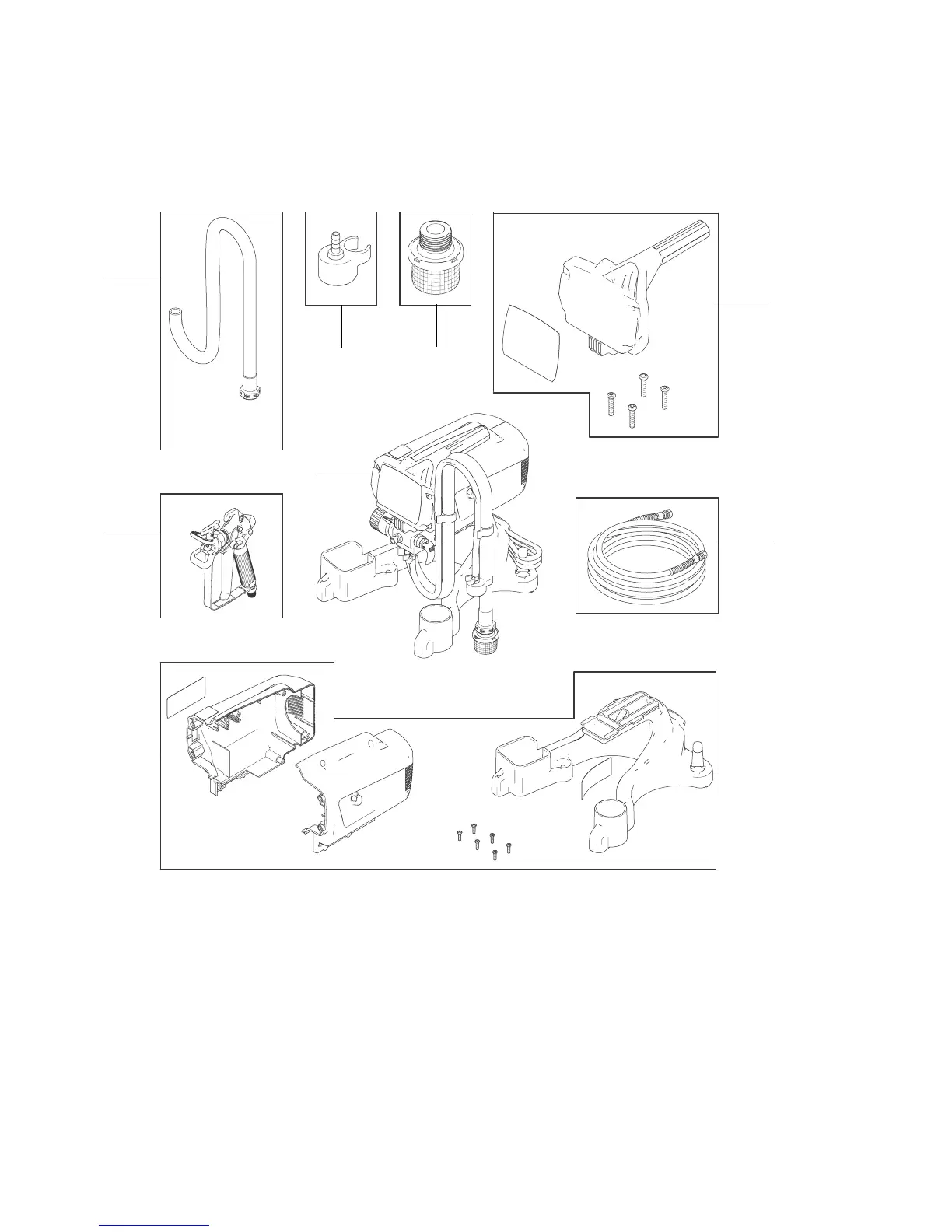

Project Painter Plus Model (257025)
ti14968a
1
2
3
45
6
7
8
Ref. Part Description
Qty
.
1 197607 KIT, suction tube 1
2 243011 GUN, SG2 1
3 24D616 KIT, enclosure and stand 1
4 244035 DEFLECTOR, barbed 1
5 257002 STRAINER 1
6 24D626 SPRAYER (no hose or gun) 1
7 24D617 KIT, front cover 1
8 247339 HOSE, 1/4 in. x 25 ft 1
