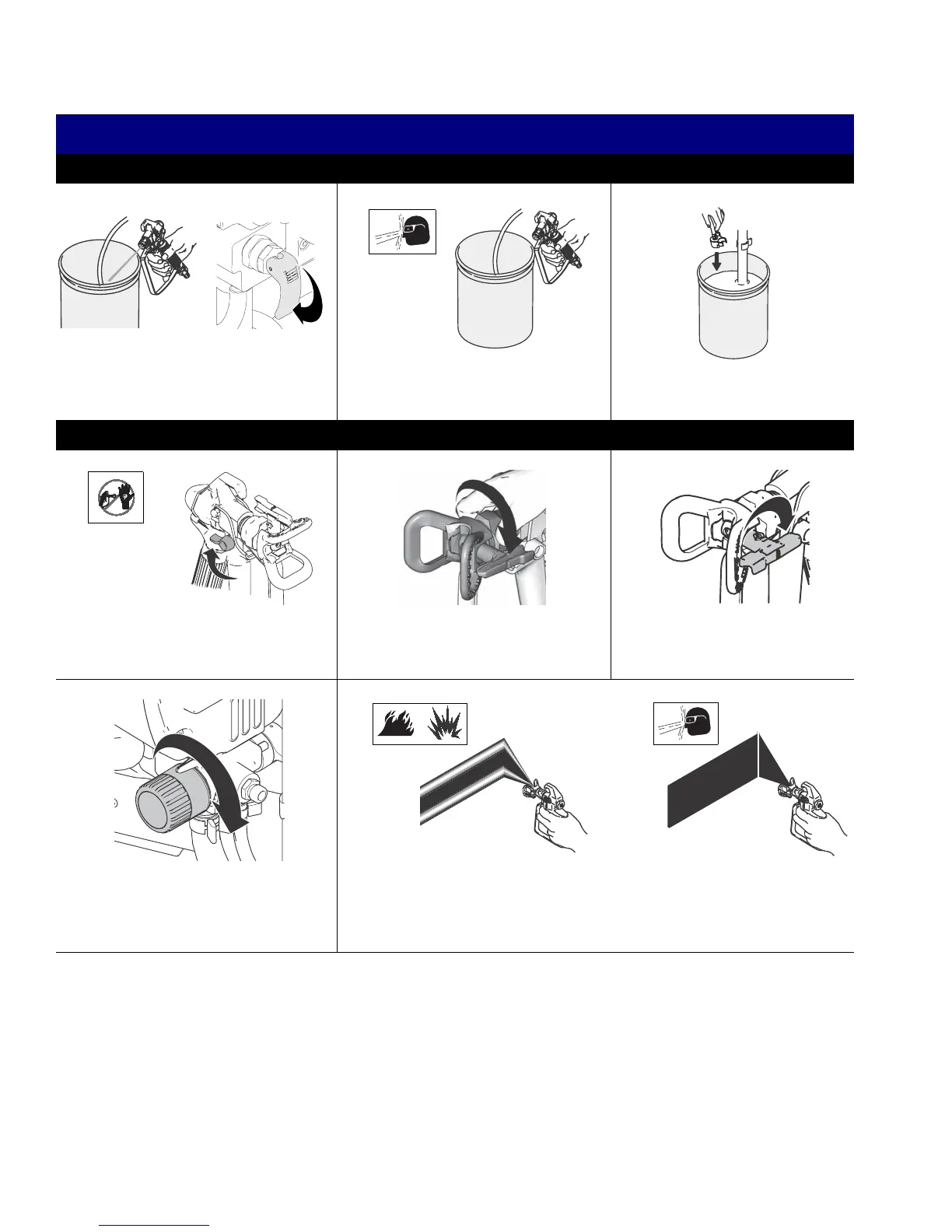

QUICK START-UP GUIDE
PRIMING
1
Submerge suction tube in paint. Turn power
switch ON, and trigger gun into waste pail.
When paint comes out of drain tube, lower
prime/spray valve to SPRAY.
2
When paint comes out of gun, release trig-
ger. Pump will build up pressure, and
motor will stop.
3
Transfer drain tube to paint pail.
SPRAYING
1
Put trigger safety lever in SAFETY ON
position.
2
Install tip and guard on gun, and hand
tighten. Your are now ready to spray.
3
If tip clog occurs, this spray tip
reverses, enabling you to quickly
clear obstructions without disassem-
bly.
4
Turn Pressure Control Knob right (clock-
wise) to increase pressure at the gun, and
turn it left (counterclockwise) to decrease
the pressure.
5
Point Gun at surface to be sprayed about 12 in. (304 mm) away from surface, and
begin moving the gun before you trigger it. A good spray pattern is evenly distrib-
uted as it hits the surface. Set the pressure so it is just high enough to spray with-
out “tails”. If tails persist at the highest pressure, a smaller tip is needed to spray
the material or material may need to be thinned.
WASTE
ti13960a
WASTE
PAINT
BAD PATTERN
GOOD PATTERN
