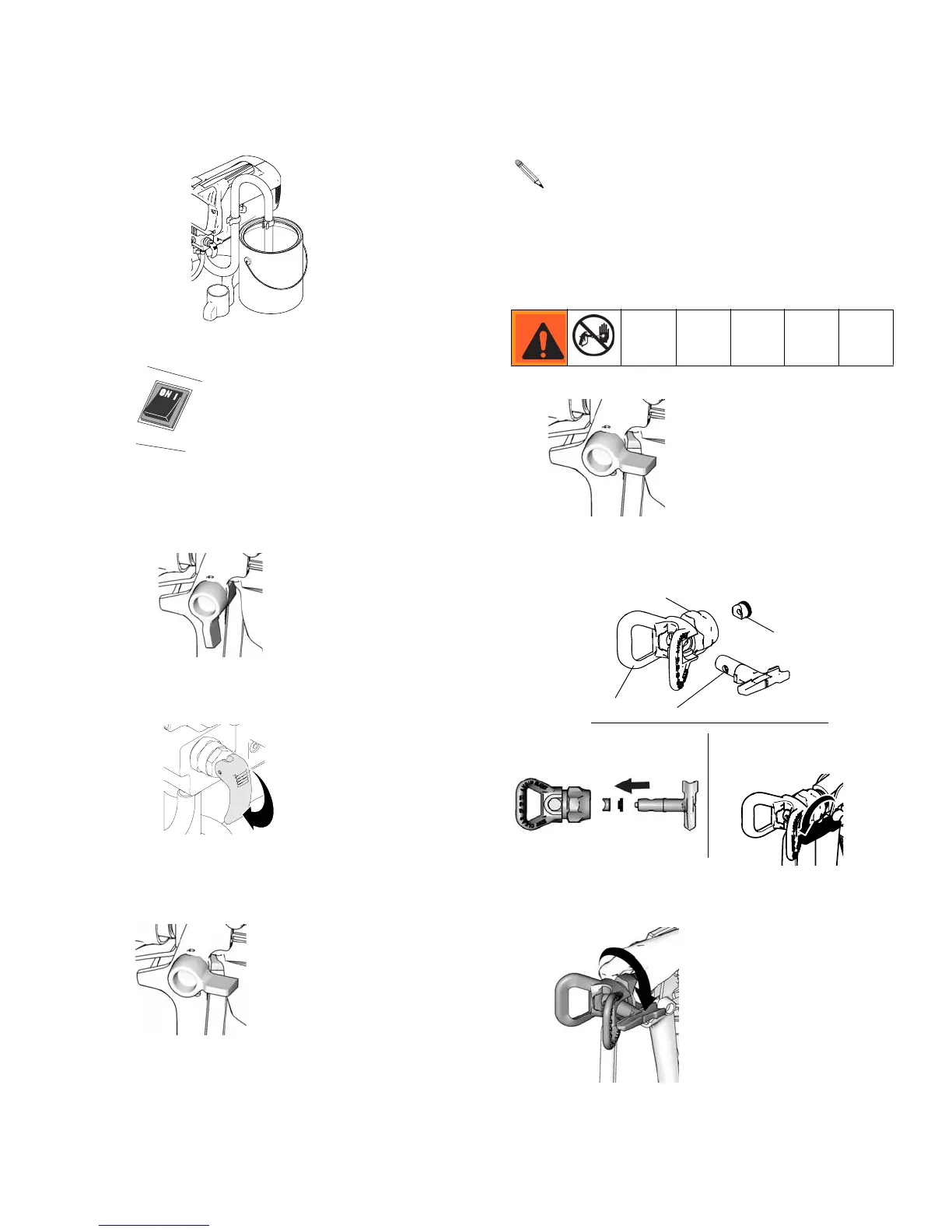

Setup
3A0248C 17
11. Transfer suction tube to paint pail and submerge
suction tube in paint.
12. Turn power switch ON.
13. When you see paint coming out of prime tube:
a. Point gun into waste pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Lower Prime/Spray valve to SPRAY.
14. Continue to trigger gun into waste pail until you see
only paint coming out of gun.
15. Release trigger. Engage trigger lock.
16. Transfer prime tube to paint pail and clip prime tube
to suction tube.
Install Tip and Guard on Gun
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in order
shown.
3. Screw tip and guard assembly on gun. Tighten
retaining nut.
ti14963a
PAINT
ti5580a
ti8909a
ti13960a
ti8908a
• Motor stopping indicates pump and hose are
primed with paint.
• If motor continues to run the sprayer is not
properly primed. To reprime repeat step 8.
ti8908a
retaining nut
black rubber gasket and
guard
tip
ti12969a
metal seat
Use tip to align seat
Tip must be pushed
all the way into guard
in guard
ti12966a
ti1270a
ti12961a
