Component Identification
12 332144E
Component Identification
Key for FIG.1
A Supply Tank (ISO)
B Supply Tank (RES)
C Pump (ISO)
D Pump (RES)
E Heater (under shroud)
F Fluid Pressure Gauges
G Recirc/Spray and Overpressure Relief Valves
H Tank Level Sensors (bottom of tanks)
J Control Panel; see FIG. 2, page 13
K Electric Motor and Drive Housings
L Insulated Hose Bundle (includes circulation retur n
hoses)
M Fusion Air Purge Spray Gun
N Desiccant Dryer
P Recirculation Tubes
Q Air Line Inlet (quick-disconnect fitting)
R Outlet Hose Connections
S Return Hose Connections
T Fluid Temperature Sensors (located on heater
assembly, under shroud)
U Hose Rack and Control Shield
V Fluid Inlet Ball Valves (each side)
W Fluid Inlet Strainers (each side)
X Power Cords (not shown)
Y Fluid Temperature Gauges (each side)
Z Air Filter/Moisture Separator

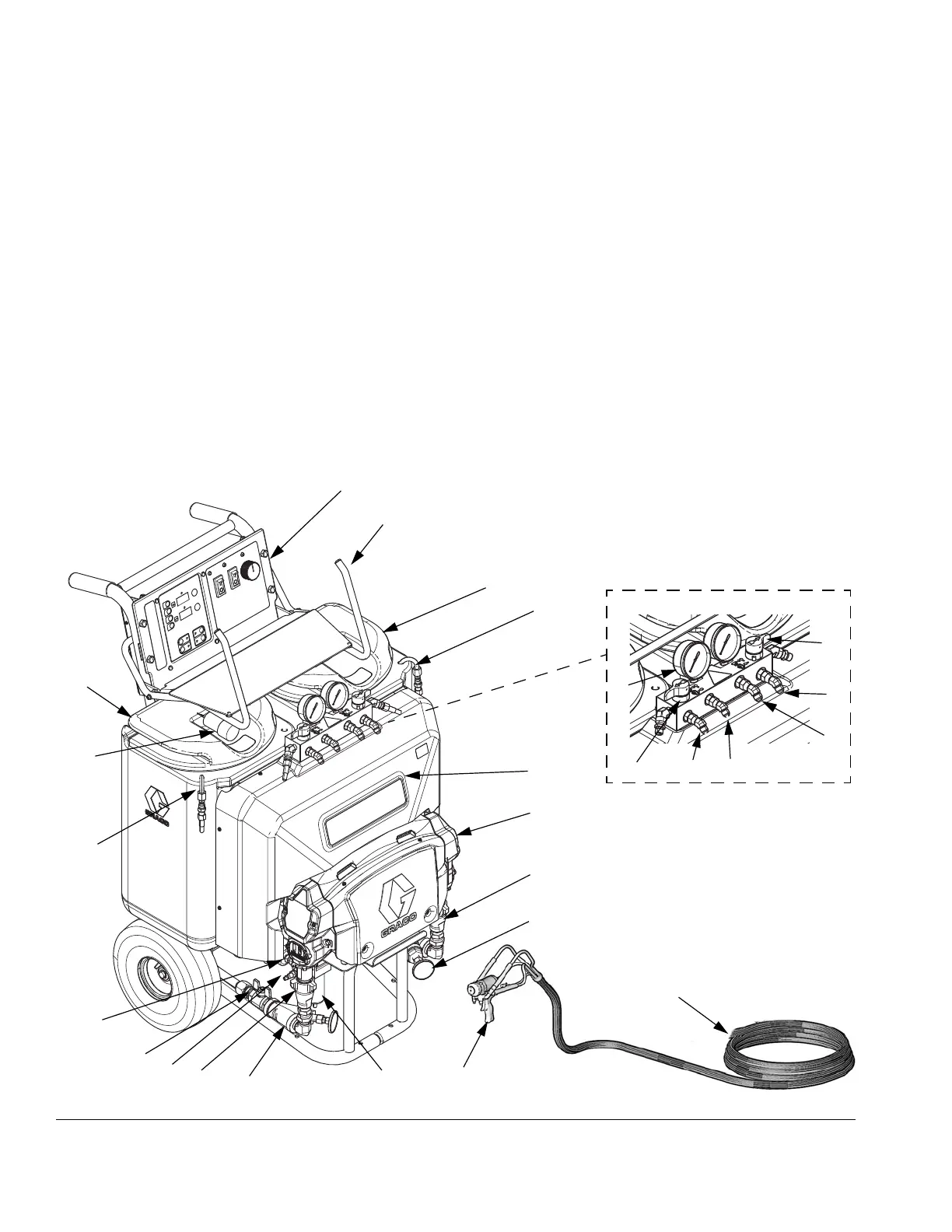

FIG. 1: Component Identification
