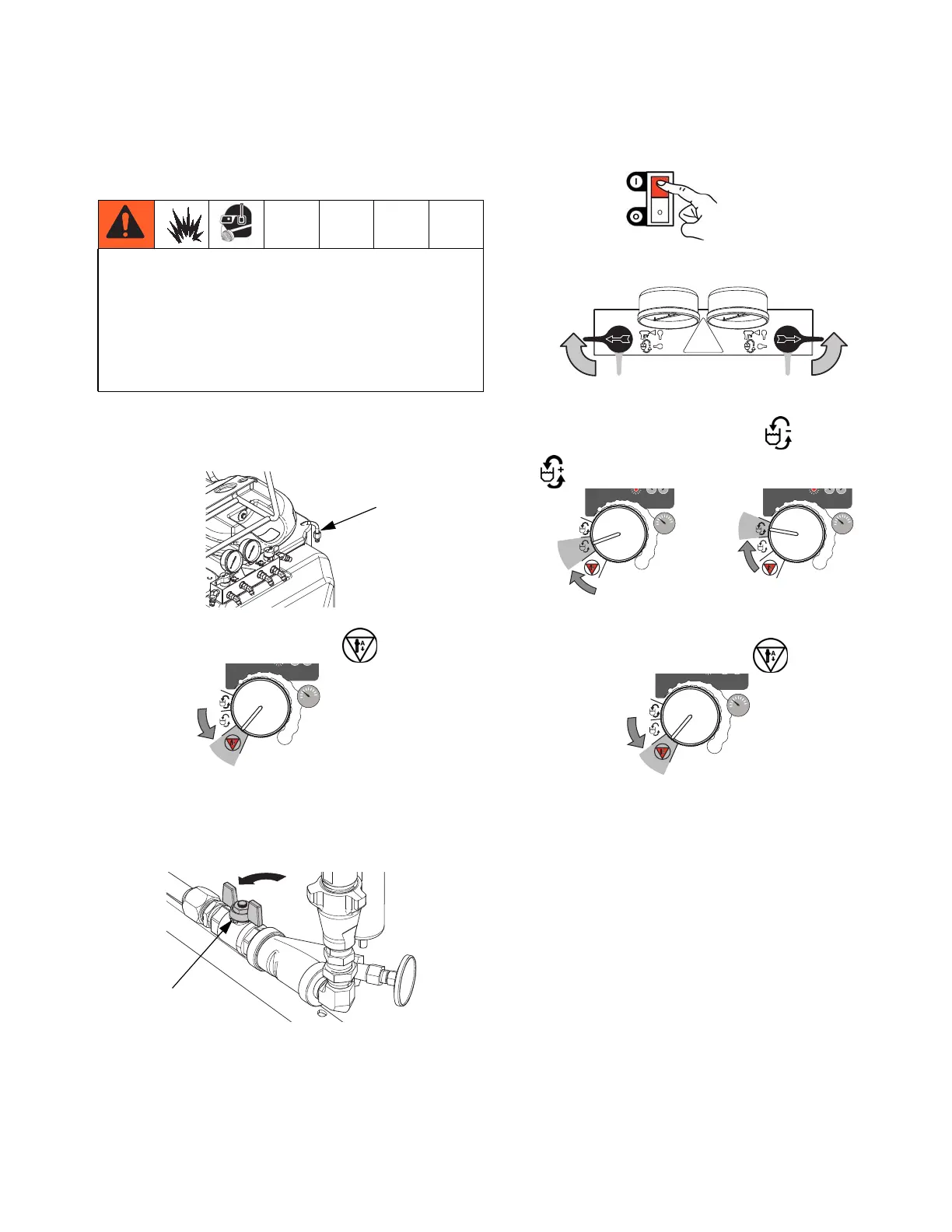

Purge Air and Flush Fluid From
Lines
1. Remove both recirculation tubes (P) from the tanks
and secure each one in a dedicated waste con-
tainer.
2. Set function knob to Stop/Par k .
3. Plug in power cords(s). See Table 2, page 16.
4. Open both pump fluid inlet valves (V, shown in open
position).
5. Turn on Motor Power. System status indicator (AY)
should turn on.
6. Set Recirc/Spray valves to Recirc.
7. Set function knob to Slow Recirc or Fast Recirc
.
8. When clean fluids exit both recirculation tubes (P),
set function knob to Stop/Park .
9. Replace recirculation tubes in supply tanks.
To avoid fire and explosion:
• Flush equipment only in a well-ventilated area.
• Ensure main power is off and heater is cool before
flushing.
• Do not turn on heater until fluid lines are clear of
solvent.
