Spraying
22 332144E

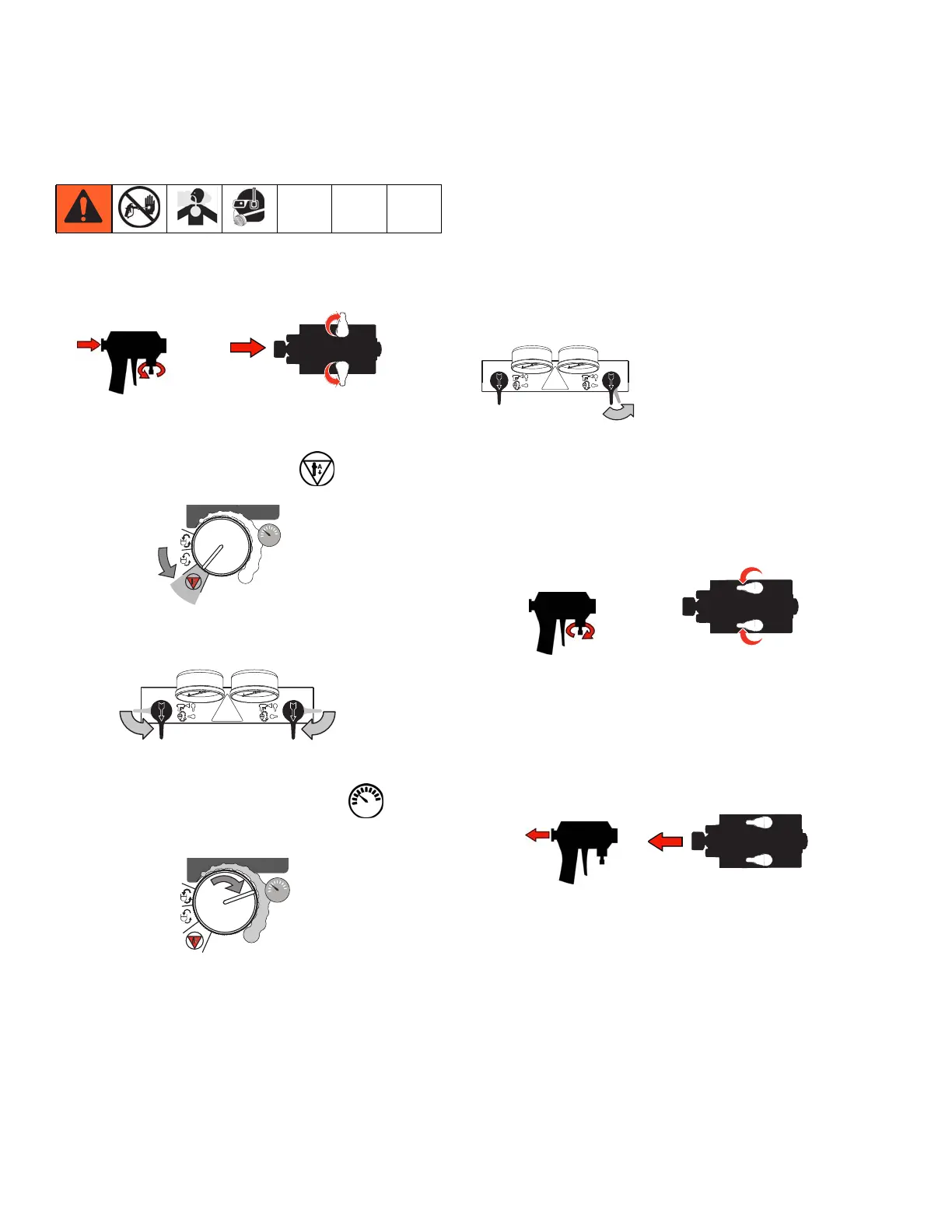

Spraying
NOTE: Air is supplied to spray gun with gun piston
safety lock or trigger safety lock engaged and gun fluid
manifold valves closed (if present).
1. Set function knob to Stop/Park . Verify system
status indicator LED is on.
2. Set Recirc/Spray valves to Spray.
3. Turn function knob to Pressure Adjust . Keep
turning to the right until fluid pressure gauges show
desired pressure.
4. Check fluid pressure gauges to ensure proper pres-
sure balance. If imbalanced, reduce pressure of
higher component by slightly turning Recirc/Spray
valve for that component toward Recirc, until
gauges show balanced pressures. The pressure
imbalance alar m (Status Code 1) is inactive for 10
seconds after entering spray pressure mode, to
allow time to balance pressures.
NOTE: Watch gauges for 10 seconds to be sure pres-
sure holds on both sides and pumps are not moving.
5. Open gun fluid manifold valves (impingement mix
guns only).
NOTE: On impingement guns, never open fluid manifold
valves or trigger gun if pressure are imbalanced.
6. Disengage piston safety lock or trigger safety lock.
7. Test spray onto cardboard or plastic sheet. Verify
that material fully cures in the required length of
time, and is the correct color. Adjust pressure and
temperature to get desired results. Equipment is
ready to spray.
Fusion
Probler
1
2
3
4
5
6
7
8
9
10
0
+
-
ti21490a
ti21491a
1
2
3
4
5
6
7
8
9
10
0
+
-
ti21492a
In this example, RES side
pressure is higher, so use
the RES side valve to bal-
ance pressures.
ti21493a
Fusion
Probler
Fusion
Probler
