Troubleshooting
30 332144E
DIP Switch Settings
1. Turn power off and unplug power cords from wall
outlets.
2. Remove screws and display cover (26).
3. Locate the DIP switch on the control board.
4. Set DIP switches to the desired positions. See DIP
Switch Settings and Functions, page 31
5. Replace display cover (26) and plug in unit.
6. Cycle power switch to activate changes to DIP
switch.
To avoid electric shock, always unplug both power
cords before servicing Reactor and wait one minute.

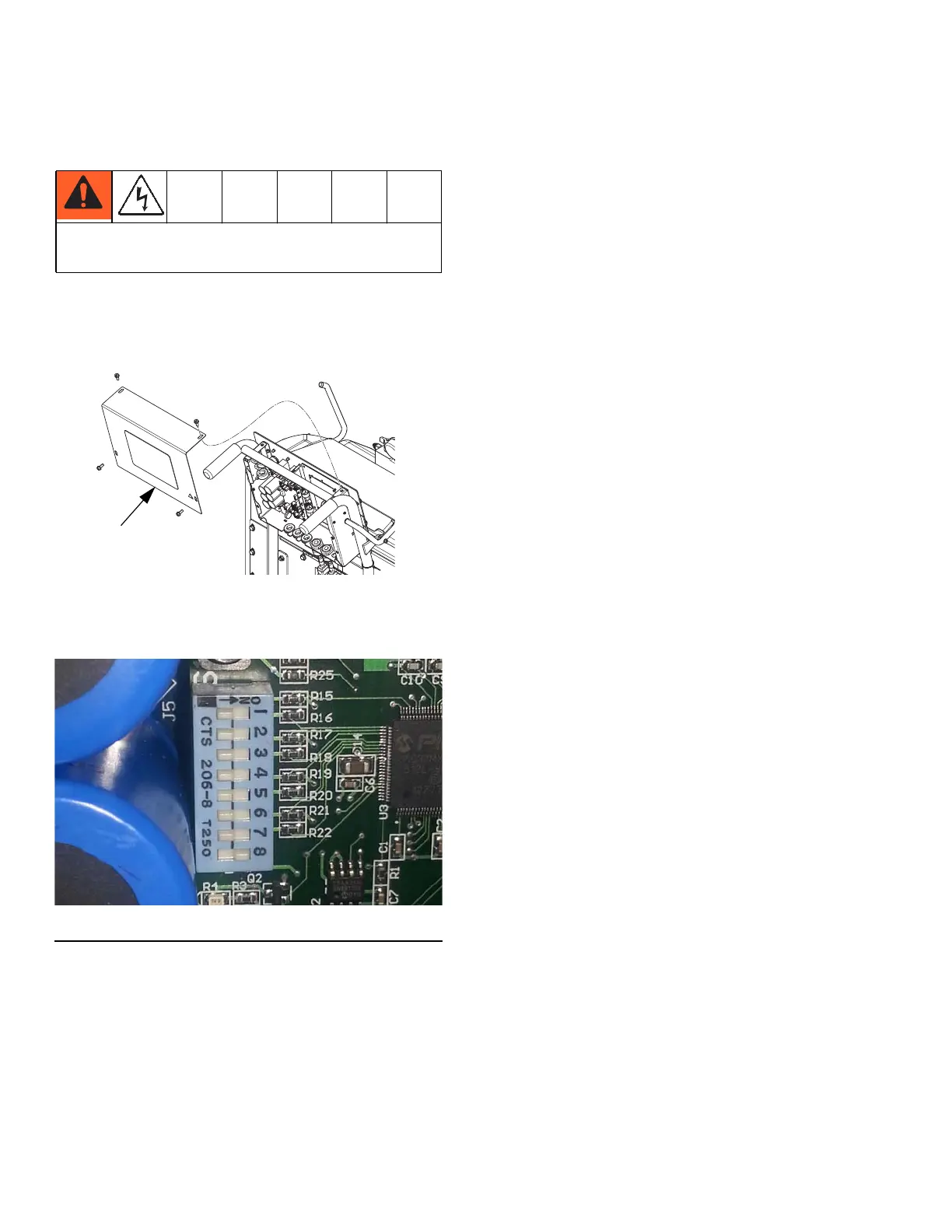

FIG. 6: DIP Switch
ti21923a
26
