Setup
16 332144E
Setup
Locate Reactor
1. Locate Reactor on a level surface.
2. Do not expose Reactor to rain.
Electrical Requirements
1. Connect Reactor to the correct power source for
your model. See Table 4. Power cords must be con-
nected to two separate, dedicated circuits. See FIG.
4.
2. Some models include cord adapters for use outside
North America. Connect the appropriate adapter to
the unit’s power cord before connecting to your
power source.
NOTE: Cords must be 3-conductor grounded, rated for your environment.
Improper wiring may cause electric shock or other
serious injury if work is not performed properly. All
electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
To avoid electric shock, always unplug both cords
before servicing Reactor and wait one minute.

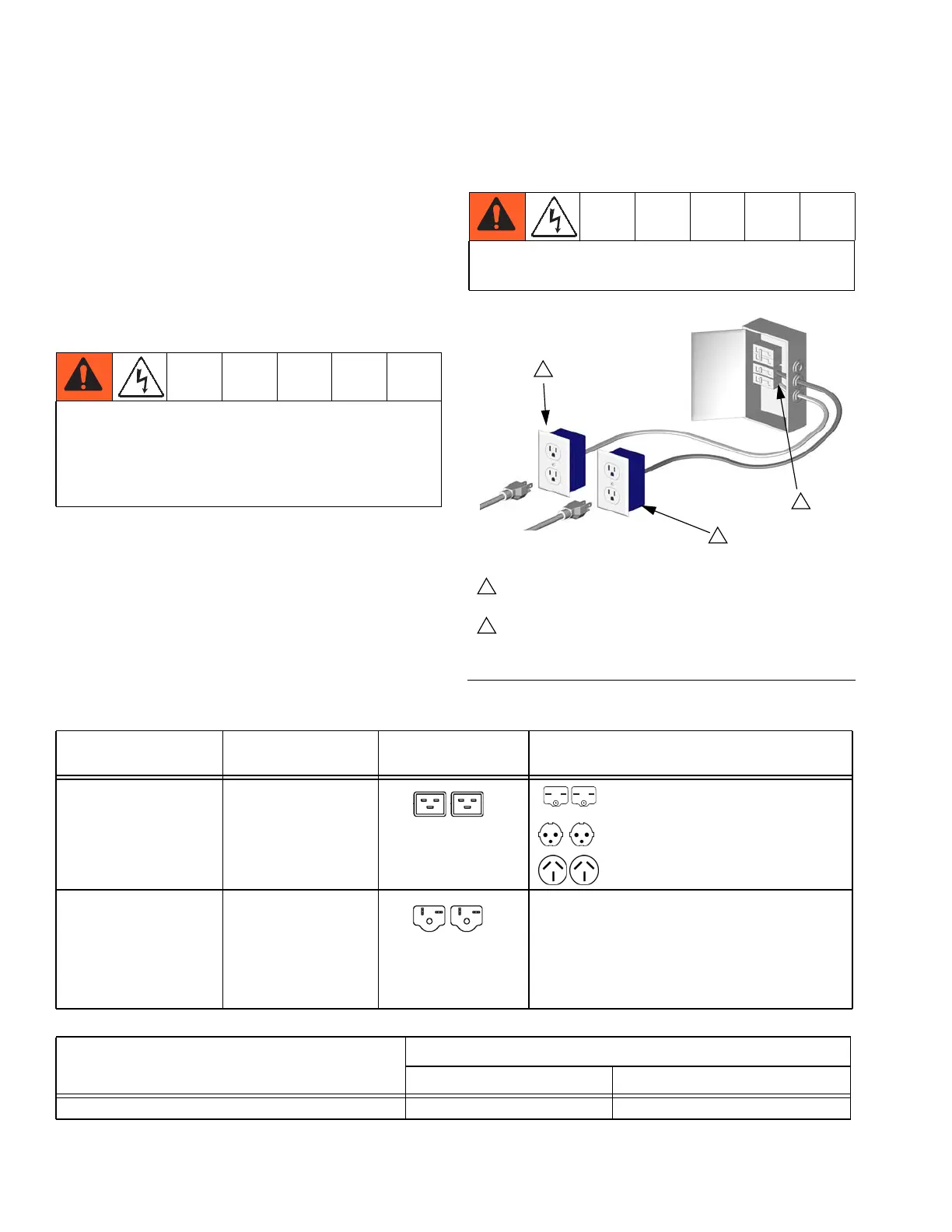

FIG. 4: Use Two Separate Circuits
1
1
Heater Power
Motor Power
2
Ensure no other high amp loads are connected while running
Reactor.
To verify separate circuits, plug in Reactor or a worklight and
cycle breakers on and off.
1
2
TI7061a
Table 4: Electrical Requirements
Model
Required Power
Source
Power Cord
Connectors Supplied Local Adapters
200-240VAC, 1 phase,
50/60 Hz, two 15 ft
(4.5 m) power cords
Two separate, dedi-
cated circuits rated at
minimum of 15 A
each
100-120VAC, 50/60
Hz, two 15 ft (4.5 m)
power cords
Two separate dedi-
cated circuits rated at
minimum of 20 A
each
Table 5: Extension Cord Requirements
Model
Required Wire Size
Up to 50 ft (15 m) Up to 100 ft (30 m)
All models AWG 12 AWG 10
Two IEC 3-20 C20
Plugs
NEMA 6-15P
Euro CEE74
YP-39 AS3112
(North America)
(Europe)
(Australia/Asia)
Two NEMA
5-20P Plugs
To Next Page
