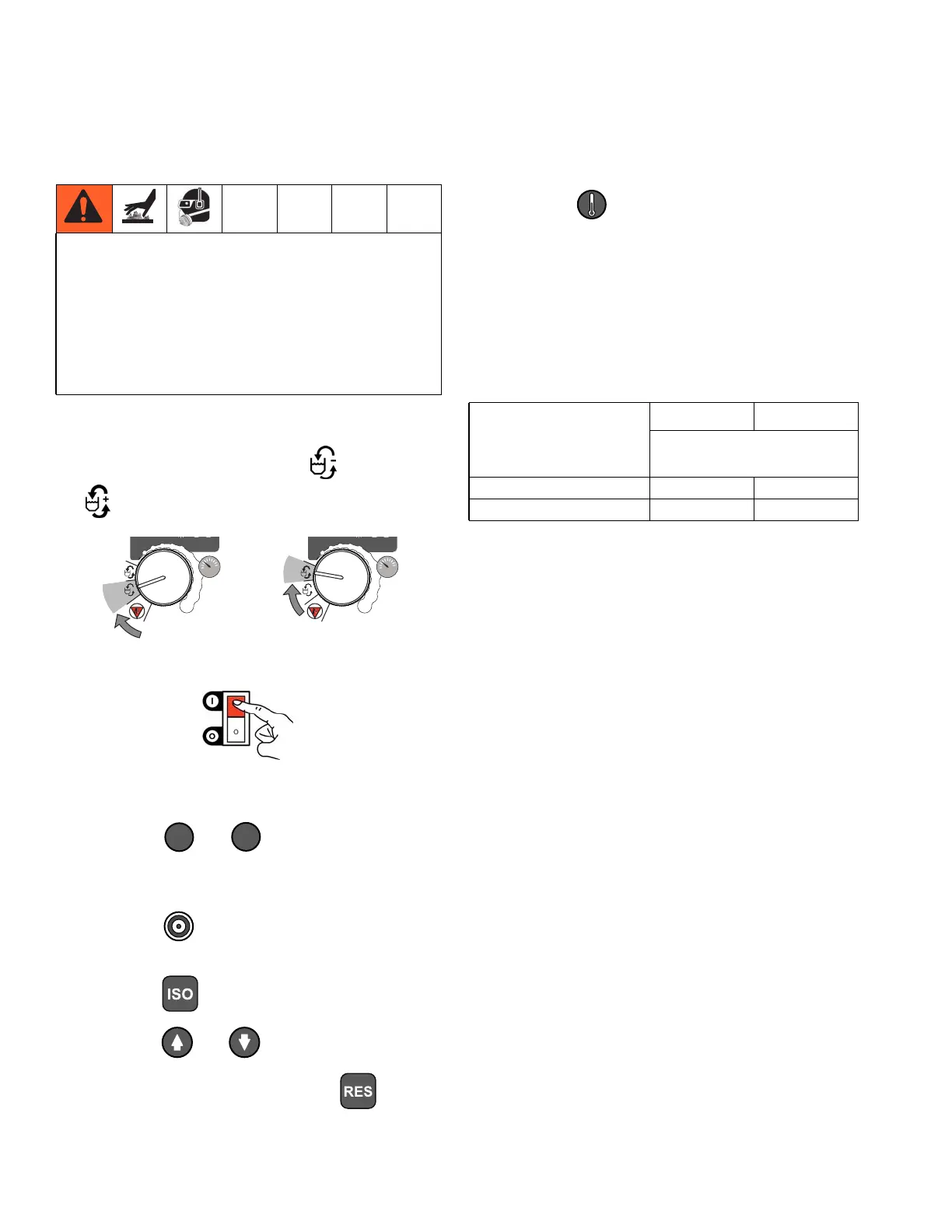

Startup
20 332144E
Startup
1. Perform Setup, page 16.
2. Set function knob to Slow Recirc or Fast Recirc
. See Heatup Guidelines, page 21, then con-
tinue with steps 3-6.
3. Turn on Heater Power.
4. Set temperatures:
a. Press or to change temperature
scale.
b. Press to display target temperatures.
c. To set heat zone target temperature,
press or until display shows
desired temperature. Repeat for zone.
d. Press to display actual temperatures.
5. Circulate through heater until temperature readouts
display desired temperature. See Table 6.
6. Adjust heat controls as necessary for a stable spray
temperature.
NOTE: Heatup times are based on 70°F (21°C) starting
material temperature and 70°F (21°C) ambient tempera-
ture.
NOTE: Different fluids will absorb heat at different rates.
When refilling a warm machine, heatup times will be
less.
Heated fluid can cause equipment surfaces to
become very hot. To avoid severe burns:
Do not operate Reactor without all covers and
shrouds in place.
Do not touch hot fluid or equipment.
Allow equipment to cool completely before
touching it.
1
2
3
4
5
6
7
8
9
10
0
+
-
1
2
3
4
5
6
7
8
9
10
0
+
-
OR
ti21489a
°
F
°
C
Table 6: Approximate heatup time for starting a cold
machine with 5 gallons (19 liters) per side
Fluid SprayTarget
Temperature
120VAC 230VAC
35 ft (10.7 m) Hose
(1 bundle)
125°F (52°C) 15 minutes 10 minutes
170°F (77°C) 40 minutes 20 minutes
