Temperature Control Modules Connections
Table 9: Heater Control Module Connections
Connector
Description
100-120VAC 200-240VAC
DATA (A) Not used
Sensor (B) See Table 11
DISPLAY (C) Display
COMMUNICATION
(D)
Communication to power
boards
PROGRAM (E) Software programming
BOOT (F) Software bootloader
POWER/RELAY (G) Circuit board power input and
contactor control output
Table 10:Temperature Power Module Connections
Connector Description
COMMUNICATION
(H)
Communication to control
board
POWER (J) Power to heater
Table 9: Heater Control Module Connections
Connector
Description
100-120VAC 200-240VAC
Table 11: Sensor B Connections
100-120VAC 200-240VAC
DescriptionConnector Pin Connector Pin
B1 1, 2 B1 1, 2 Overtemperature Switch
B2 1 B1 5 Thermocouple ISO, R (red)
B2 2 B1 6 Thermocouple ISO,Y (yellow)
B2 4 B1 8 Thermocouple RES, R (red)
B2 5 B1 9 Thermocouple RES, Y (yellow)
B2 3 B1 3-4,7,10 Unused

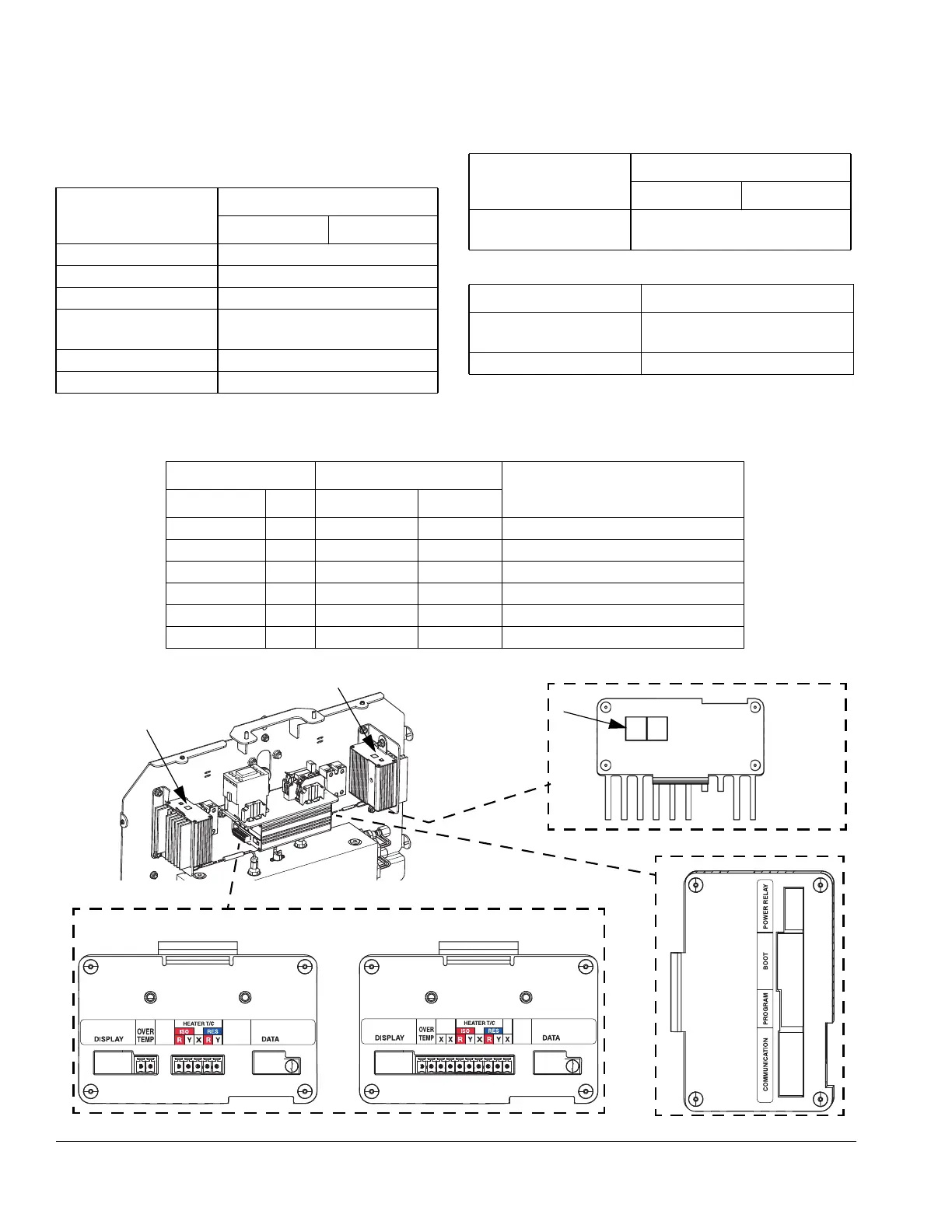

FIG. 14: Temperature Control Module Connections
CB1 B2
AA
B1C
D
E
F
G
ti21843a
J
H
H
ti9843a4
100-120VAC 200-240VAC
