Startup
312062A 23
h. Hold to view electrical currents for each
zone.
i. Hold to view heater control circuit board
temperature.
j. Manual current control mode only:
If FTS is disconnected or display shows diag-
nostic code E04, turn main power switch OFF
then ON to clear diagnostic
code and enter manual current control mode.
display will show current to hose. Current
is not limited by target temperature.
To prevent overheating, install hose thermome-
ter close to gun end, within operator view. Insert
thermometer through foam cover of A compo-
nent hose so stem is next to inner tube. Ther-
mometer reading will be about 20°F less than
actual fluid temperature.
If thermometer reading exceeds 160°F (71°C),
reduce current with key.

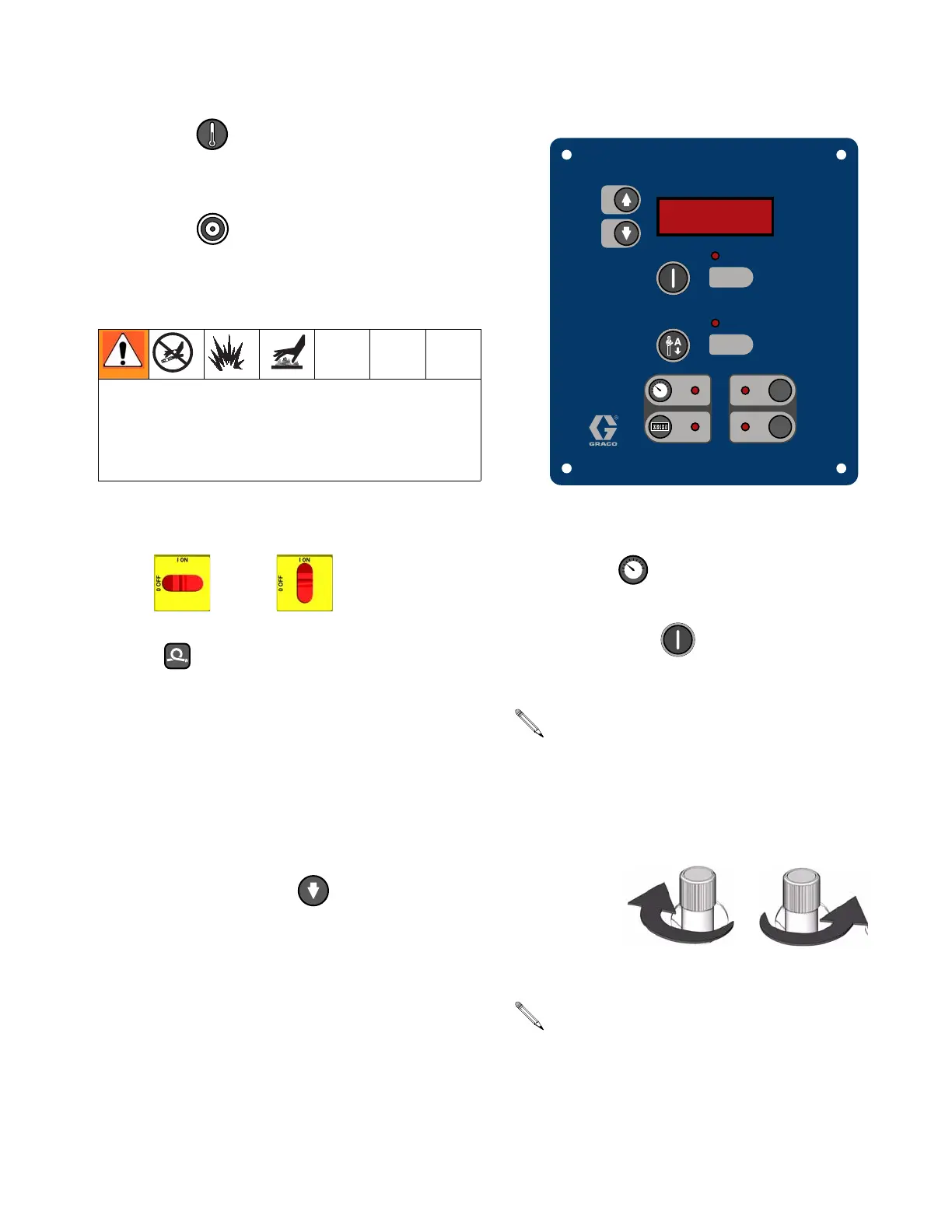

3. Set pressure
a. Press to display the pressure reading.
b. Press motor . Motor and pumps start.
Display shows system pressure.
c. Adjust hydraulic pressure control until display
shows desired fluid pressure.
When in manual current control mode, monitor hose
temperature with thermometer. Install per instructions
below. Thermometer reading must not exceed 160°F
(71°C). Never leave machine unattended when in
manual current control mode.
Motor must rotate counterclockwise when viewed
from shaft end. See Connect electrical cord, page
17.
If display pressure is greater than desired pressure,
reduce the hydraulic pressure and trigger gun to
reduce pressure.
Motor Controls and Indicators, see page 14
+-
