Graco SlimFit3 LX User Manual

Vehicle Information
10
105

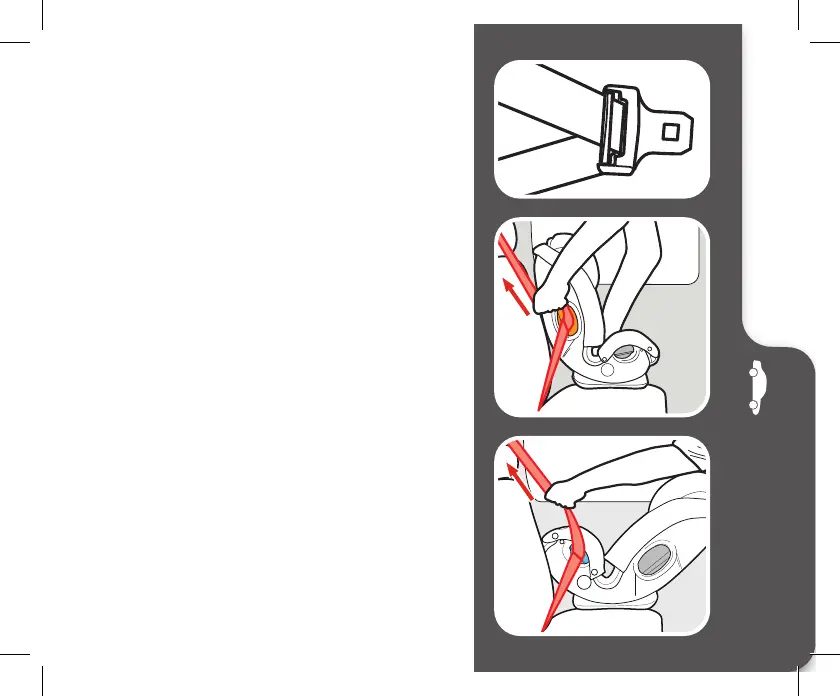

Locking Latchplate and ELR Retractor
A latchplate that holds the lap belt snug after it
has been adjusted; contains a metal bar on the
underside of the hardware that “locks” the belt
in position.
When installing the car seat, route the
vehicle seat belt through the proper belt path
and buckle it in. Then, pull upwards on the
shoulder belt so that the lap belt gets tight
around the car seat.
Grab the sides of the seat at the belt path and
slide the seat side-to-side and front-to-back.
The seat should not move more than 1” (2.5
cm).
Note: When using the lock-off, you do not
need to switch the retractor. The lock-off locks
the seat belt.
NWL0001077519C SlimFit3 LX USA ENG R04 (8BZ20.indd 105NWL0001077519C SlimFit3 LX USA ENG R04 (8BZ20.indd 105 9/18/20 11:50 AM9/18/20 11:50 AM

Graco SlimFit3 LX Specifications

General

Product Type	3-in-1 Car Seat
Rear-Facing Weight Capacity	5-40 lbs
Forward-Facing Weight Capacity	22-65 lbs
Booster Mode Weight Range	40-100 lbs
Height Capacity	Up to 57 inches
Harness Type	5-point harness
Harness Positions	10
Side Impact Protection	Yes
Cup Holders	2
Machine Washable Cover	Yes
Weight Capacity	5-100 lbs
Installation	LATCH
Recline Positions	4
