GRP261X /GRP2624/GRP2634 User Guide

Version 1.0.5.48

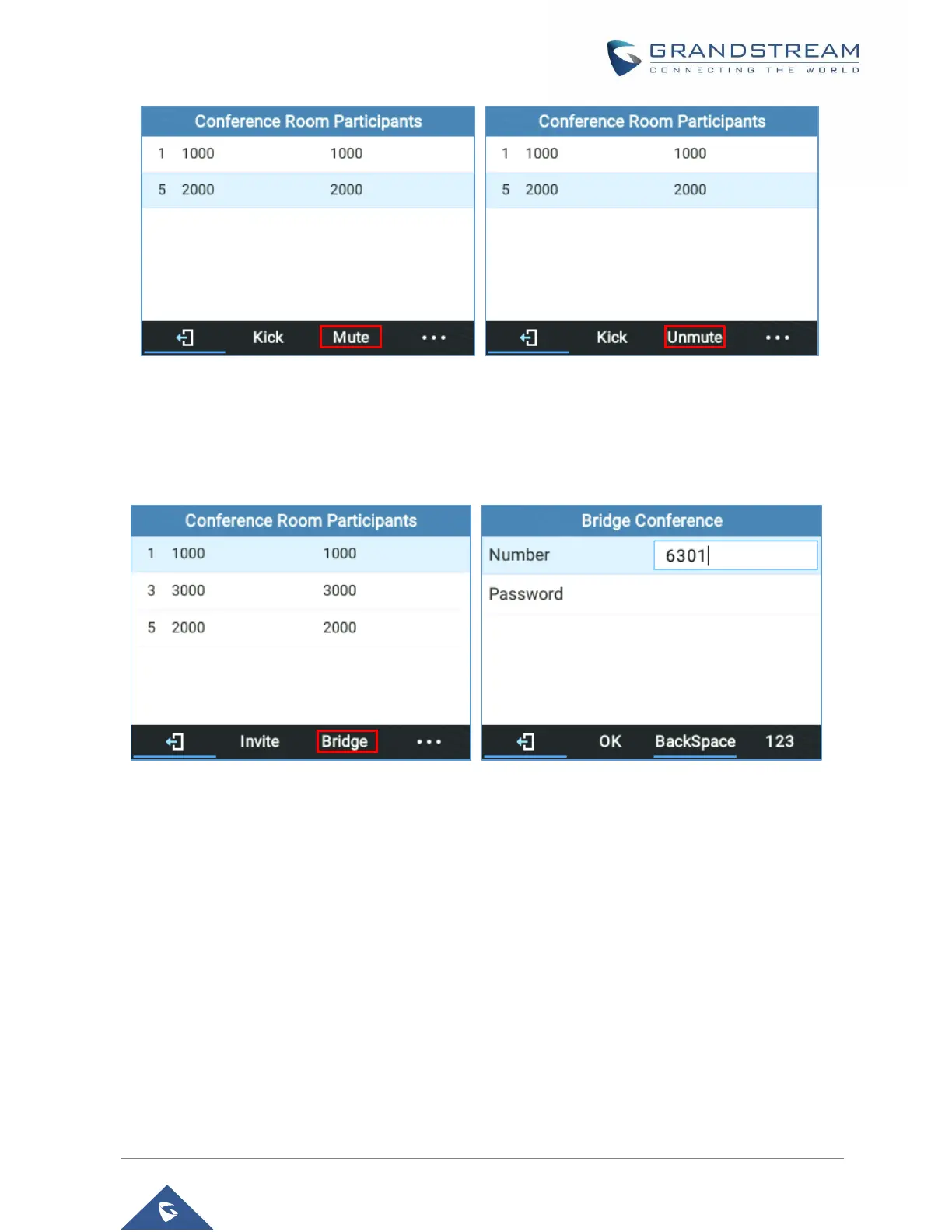

Figure 37 : UCM Conference room – Mute/ Unmute user

• Conference Bridge:

To bridge another conference, enter the conference number and password and Bridge request will

be sent.

Figure 38: UCM Conference Menu - Bridge Conference

• More:

Press […] for more conference room operations. Users can choose to Lock/ Unlock the

conference, Kick All or Mute/ Unmute All participants.
