Grant HPiD6 User Manual

Section 3: Installation Information Page 11
3.5.3 Condense Disposal
The underside of the heat pump has a condensate outlet (refer to
Figure 3-3) that allows any condensate to drain from the heat pump.
Provision must be made to safely collect and dispose of the
condensate.
For example, use 40 mm waste pipe to form a condensate disposal
system into which the condensate flows from the opening in the
bottom of the heat pump casing running to a suitable gulley or
soakaway.
It is essential that the condensate is able to drain away and not
allowed to run onto any adjacent paths or driveways where, in
winter, this will result in icing and a potential hazard for anyone
walking near the heat pump.
The top of the concrete base must be either level with, or
above, the surrounding ground level.
!
WARNING
Condensate outlet
Figure 3-3: Condensate outlet
3.5.4 Vibration
If the vibration from the heat pump is likely to cause a nuisance, use
the anti-vibration mounts (product code: HPIDFOOT/KIT) and fix the
heat pump securely to the mounts.
003 revO mm
Over 600 mm
Over 100 mm
Over 300 mm
Over 600 mm
HPID10
003 revO mm
Over 600 mm
Over 100 mm
Over 300 mm
Over 600 mm
HPID16
003 revO mm
Over 600 mm
Over 100 mm
Over 300 mm
Over 600 mm
HPID6

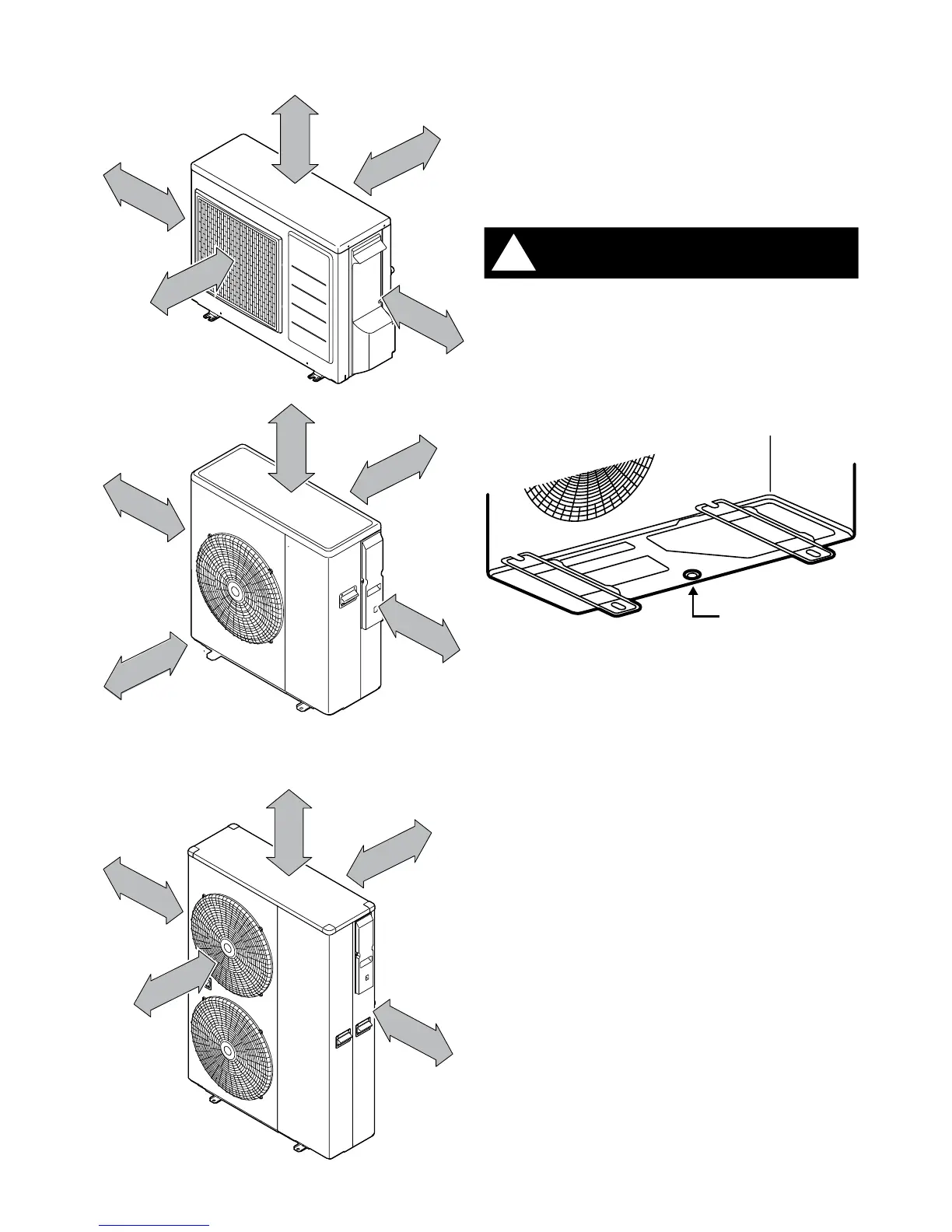

Figure 3-2: Clearances
