Grant HPiD6 User Manual

Section 7: Remote Controller Page 29
Remote controller cord
hooks
gaps
wires clamp
Remote controller
cable
Hook
terminal
Y-shaped
terminal
When the wiring is embedded
hooks
gaps
knock out hole
Remote controller
cable
knock out hole
wires clamp
terminal
Y-shaped
terminal
Hook
When the wiring is exposed

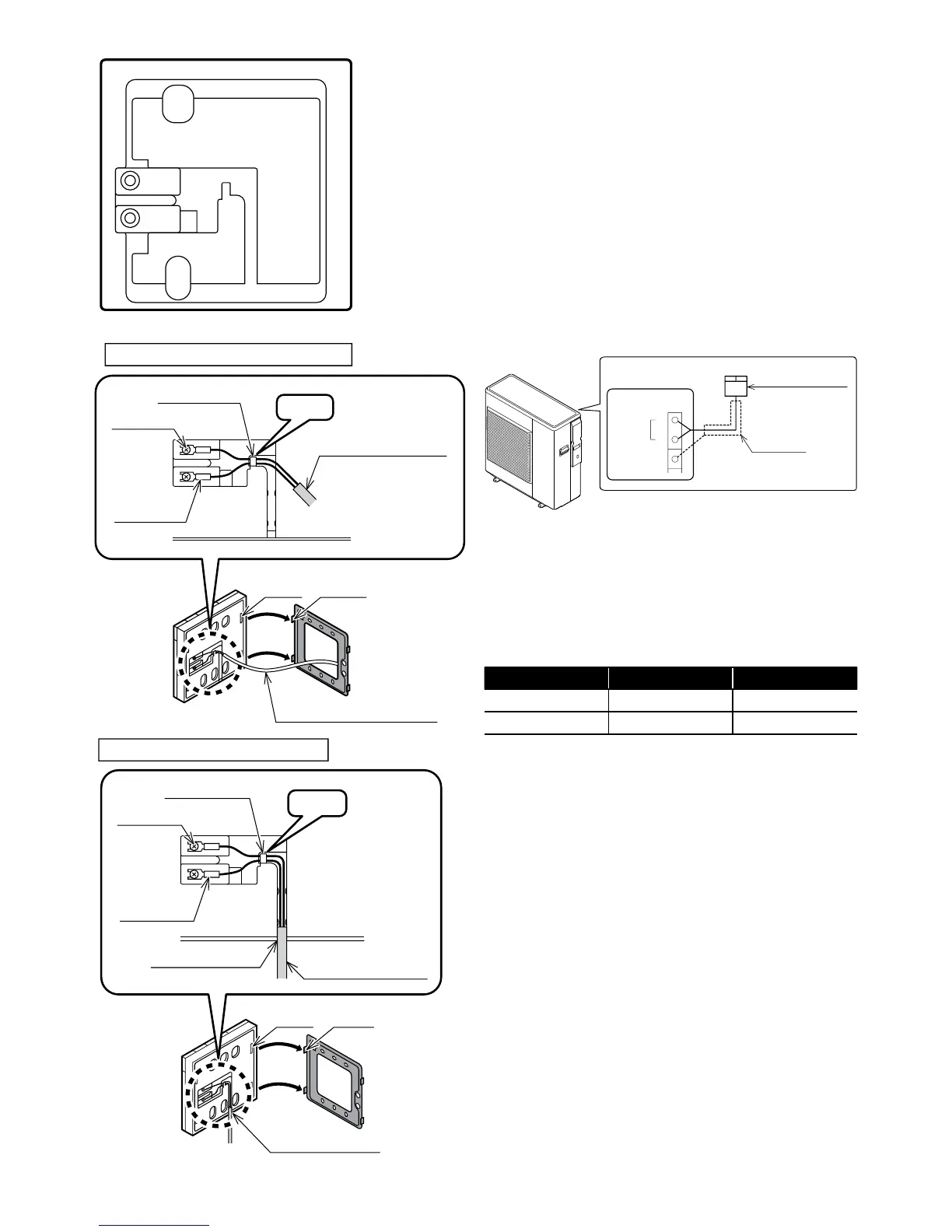

Figure 7-5: Connecting remote controller cable
7.4 Connecting the Remote Controller to the Heat
Pump
1. Isolate the mains power supply for the heat pump from the power
source.
Do not connect the remote controller cable with the power on.
2. Remove the wiring cover.
3. Connect the remote controller cable to terminals 1 and 2 on the
Terminal PCB. The remote controller has no polarity so it does
not matter which wire of the remote controller cable is connected
to + and -. Take care not to let your screwdriver etc. touch any
of the other electronic parts. Do not use a power driver. It can
damage the terminal screw holes.
4. If shielded wire is used, connect it to terminal 3 (GND) on the
Terminal PCB.
5. Securely fasten the remote controller cable with the cord
fastening fitting. Leave the display board waterproof cover
removed.
Remote controller
Terminal PCB
Remote controller
Shielded cable
Remote
Controller
1
2
DNG 3
Figure 7-6: Connecting the remote controller to the heat pump
An 8 metre cable is supplied with the heat pump.
The maximum length of the remote controller cable is 100 metres.
Use shielded wire where the length is 30 metres or longer and
connect the shielded wire to terminal 3 (GND) on the Terminal PCB.
Table 7-7: Remote controller cable
Distance Cable (mm²) Shield
~ 30 metres Minimum 0.5 Non-shielded
30 ~ 100 metres Minimum 1.0 Shielded
Figure 7-4: Remote controller (rear)
